Front of Vehicle Components

Front of Vehicle/Engine Compartment Component Views

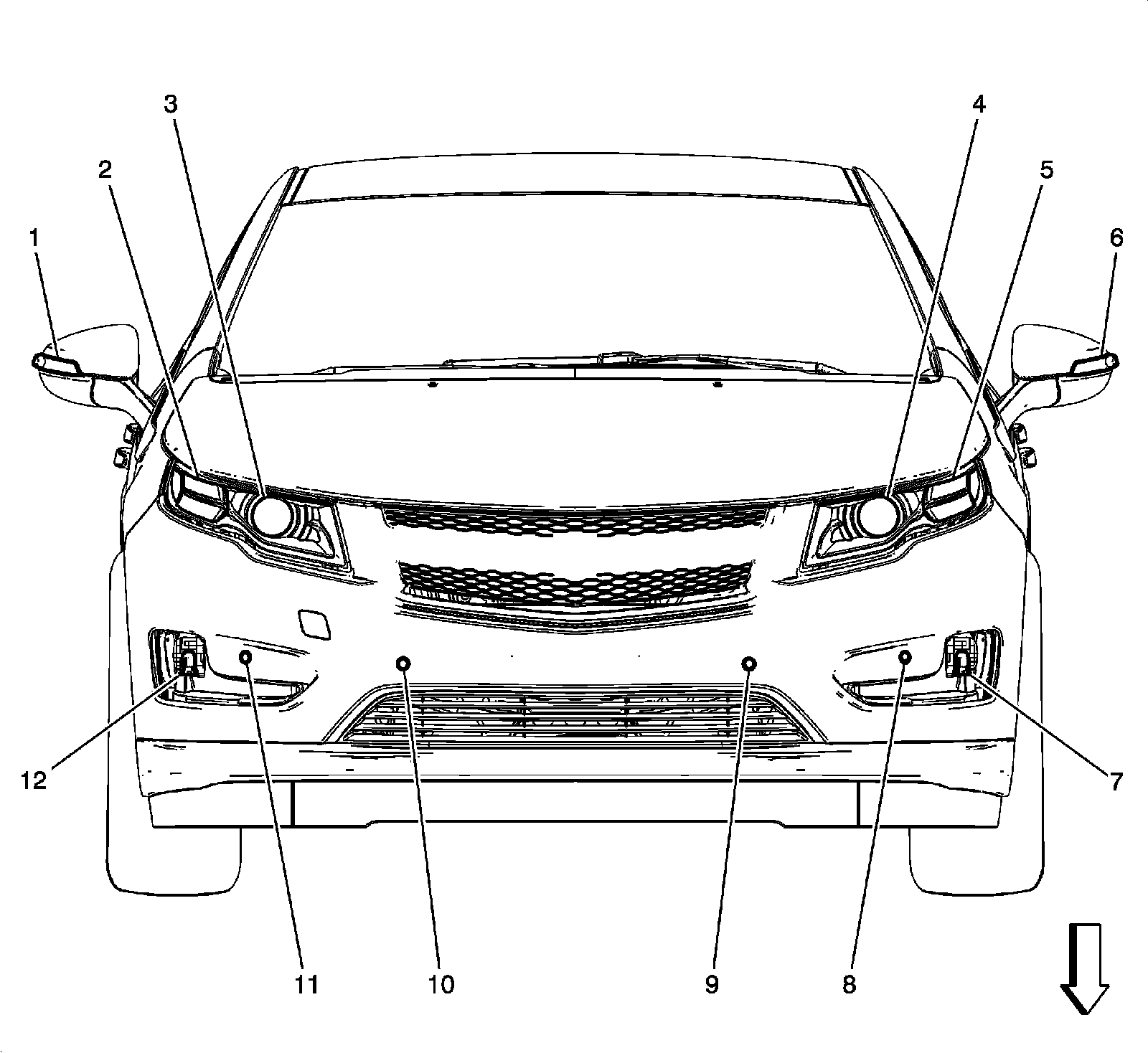

Front of Vehicle Components





1 - E4Z Turn Signal Repeater Lamp - Right

2 - E4D Daytime Running Lamp - Right

3 - E13R Headlamp - Right

4 - E13L Headlamp - Left

5 - E4C Daytime Running Lamp - Left

6 - E4Y Turn Signal Repeater Lamp - Left

7 - E4N Park/Turn Signal Lamp - Left

8 - B78A Front Object Sensor - Left Outer

9 - B78C Front Object Sensor - Left Middle

10 - B78D Front Object Sensor - Right Middle

11 - B78B Front Object Sensor - Right Outer

12 - E4P Park/Turn Signal Lamp - Right
