Camshaft, Engine

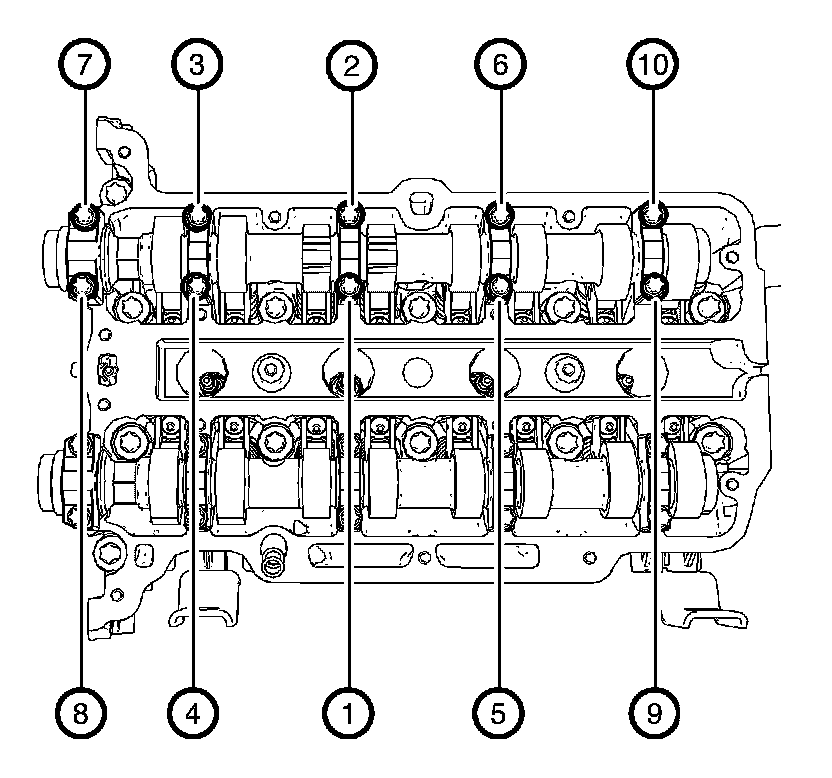

Intake Camshaft






Install and tighten the camshaft bearing cap bolts one turn at a time in sequence as shown to 8 Nm (71 lb in).

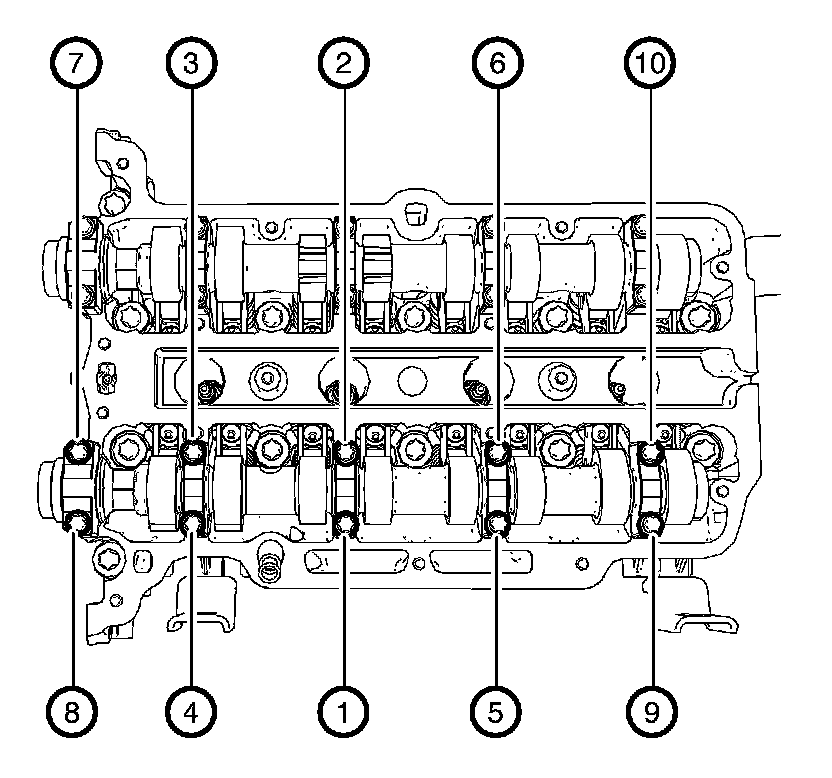

Exhaust Camshaft





Install and tighten the camshaft bearing cap bolts one turn at a time in sequence as shown 8 Nm (71 lb in).
