Amplifier Inputs (UQA) Wiring Schematics

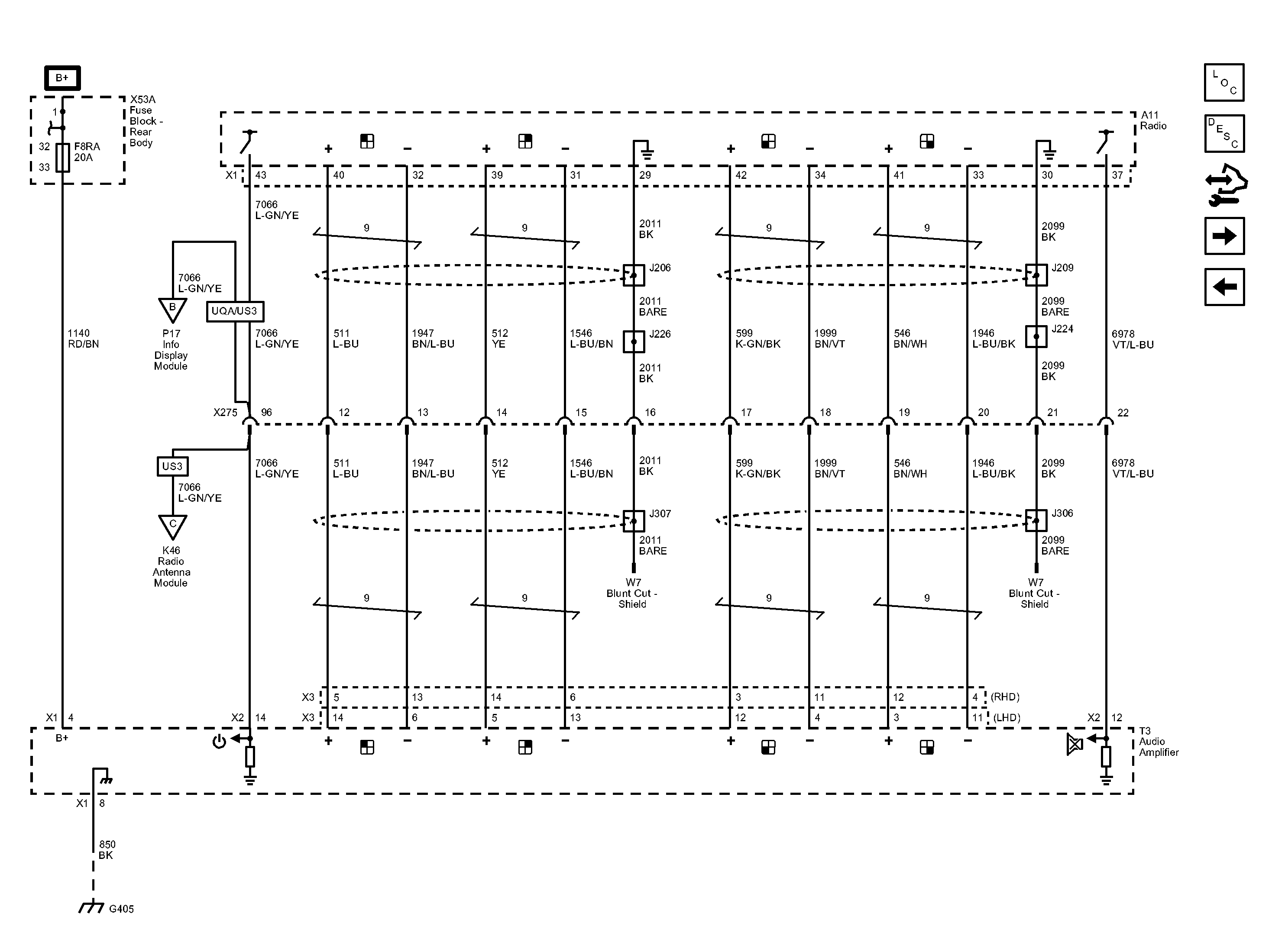

Fig 1: Amplifier Inputs (UQA) Wiring Schematics
GM2812553Courtesy of GENERAL MOTORS COMPANY
