Mobile Telephone Control Module Replacement (Holden RHD)

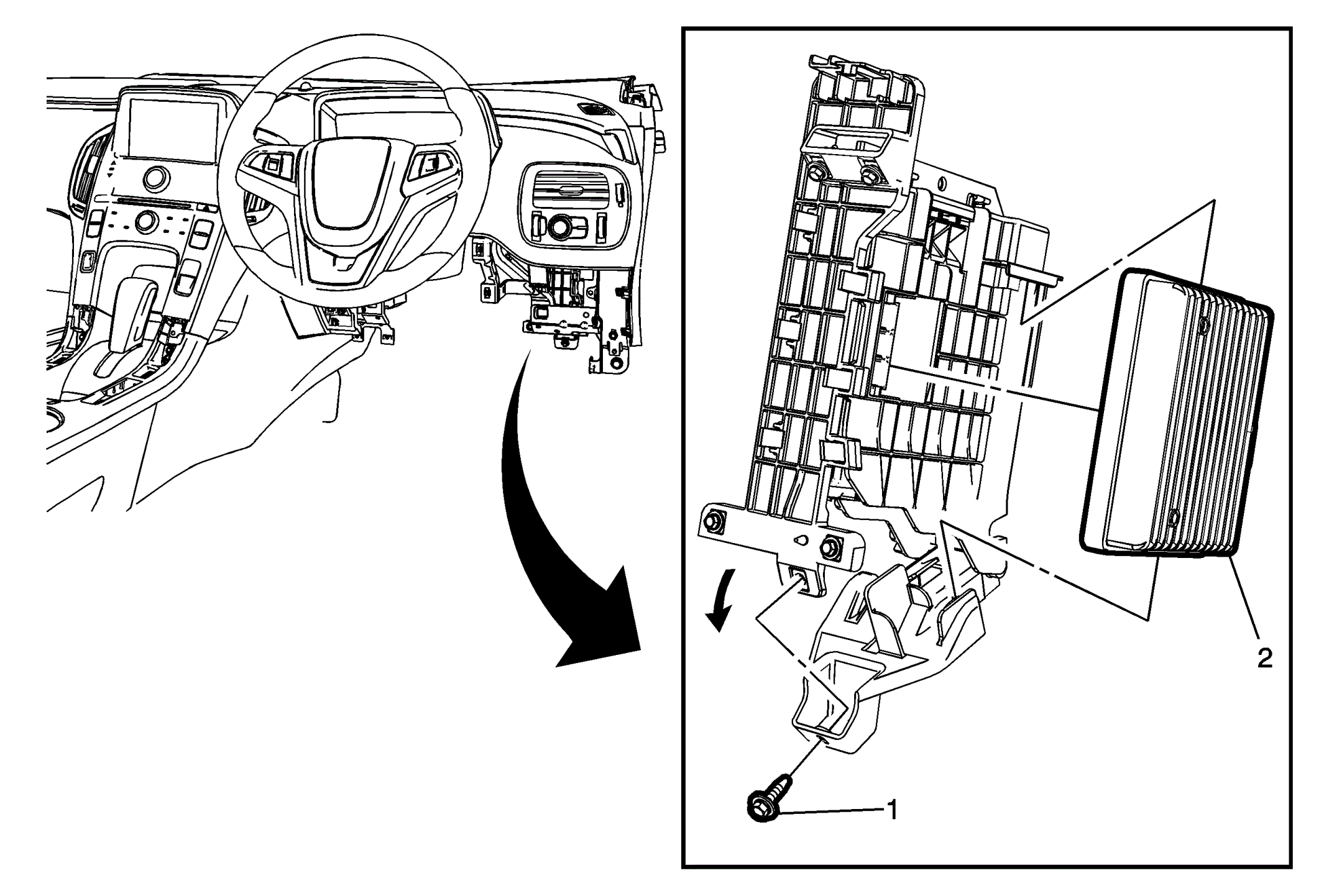

Fig 1: Mobile Telephone Control Module (Holden RHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column opening filler. Refer to Steering Column Opening Lower Filler Replacement
1	Module Telephone Control Module Bracket Bolt CAUTION: Refer to Fastener Caution .
2	Mobile Telephone Control Module Procedure Open the bottom of the hinged bracket and slide the module downward. Disconnect the electrical connections. For programming and set up procedures, refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove the steering column opening filler. Refer to Steering Column Opening Lower Filler Replacement

Module Telephone Control Module Bracket Bolt

CAUTION:

Mobile Telephone Control Module

Procedure
