Battery Positive and Negative Cable Replacement (B+ APM Module to Battery Fuse Block)

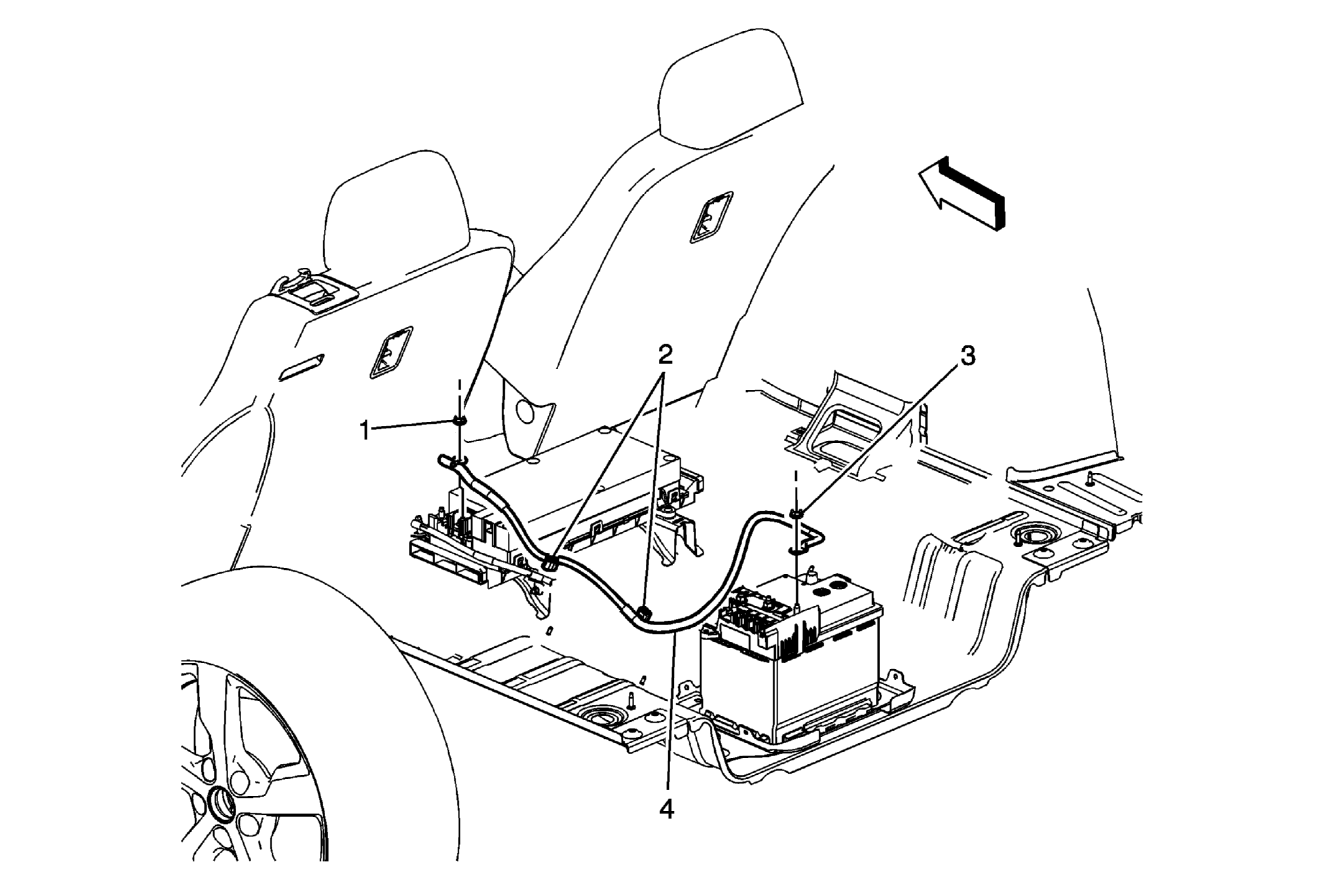

Fig 1: Battery Positive and Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the high voltage. Refer to High Voltage Disabling . Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Accessory DC Power Control Module Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Battery Positive Cable Retainers
3	Engine Harness Battery Positive Fuse Block Nut Tighten 12 N.m (106 lb in)
4	Battery Positive Cable
