Battery Charger Wiring Schematics

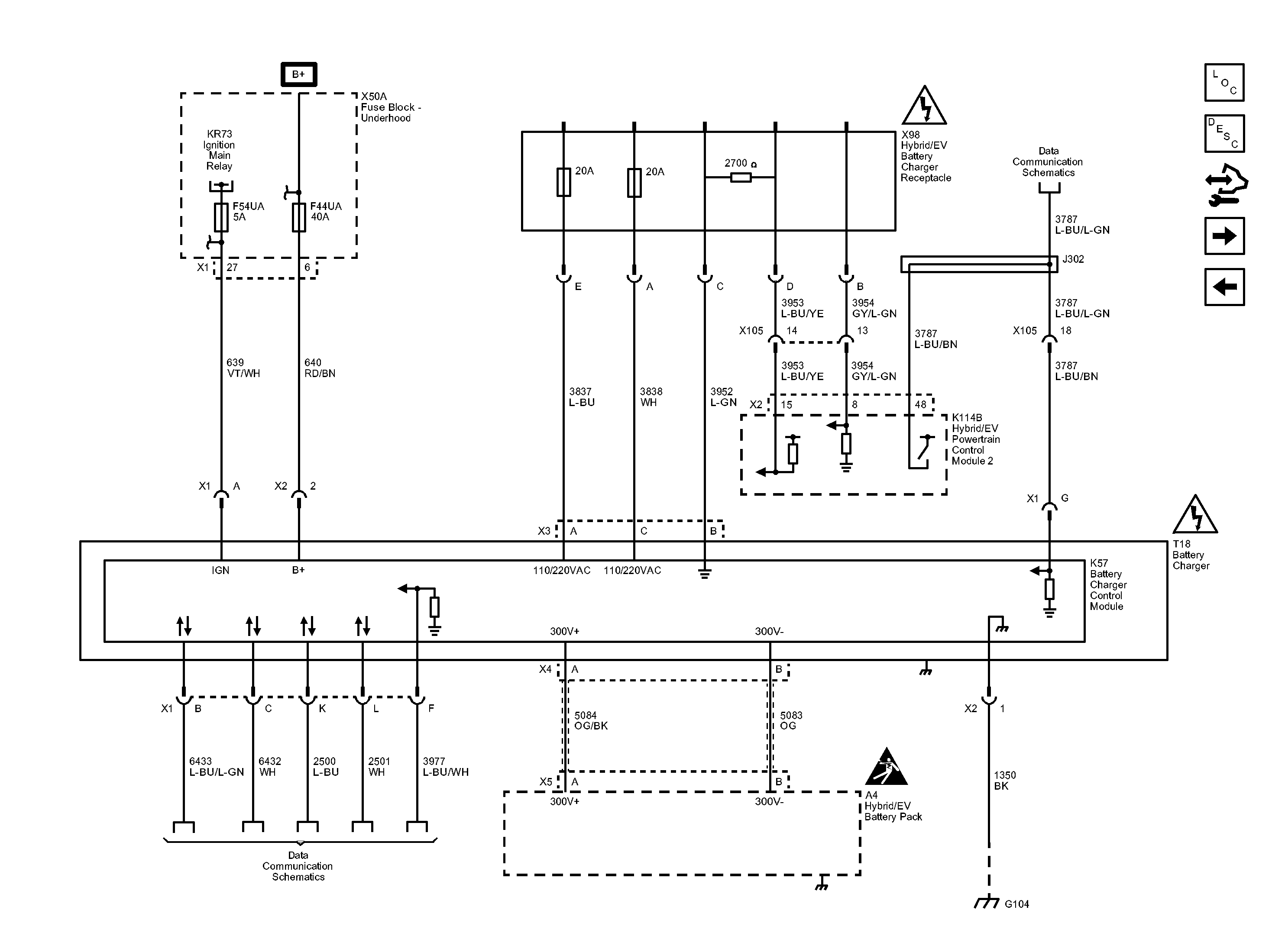

Fig 1: Battery Charger Wiring Schematics
GM2812527Courtesy of GENERAL MOTORS COMPANY
