Inflatable Restraint Instrument Panel Lower Module Replacement - Driver Side
WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
Inflatable Restraint Instrument Panel Lower Module Replacement - Driver Side

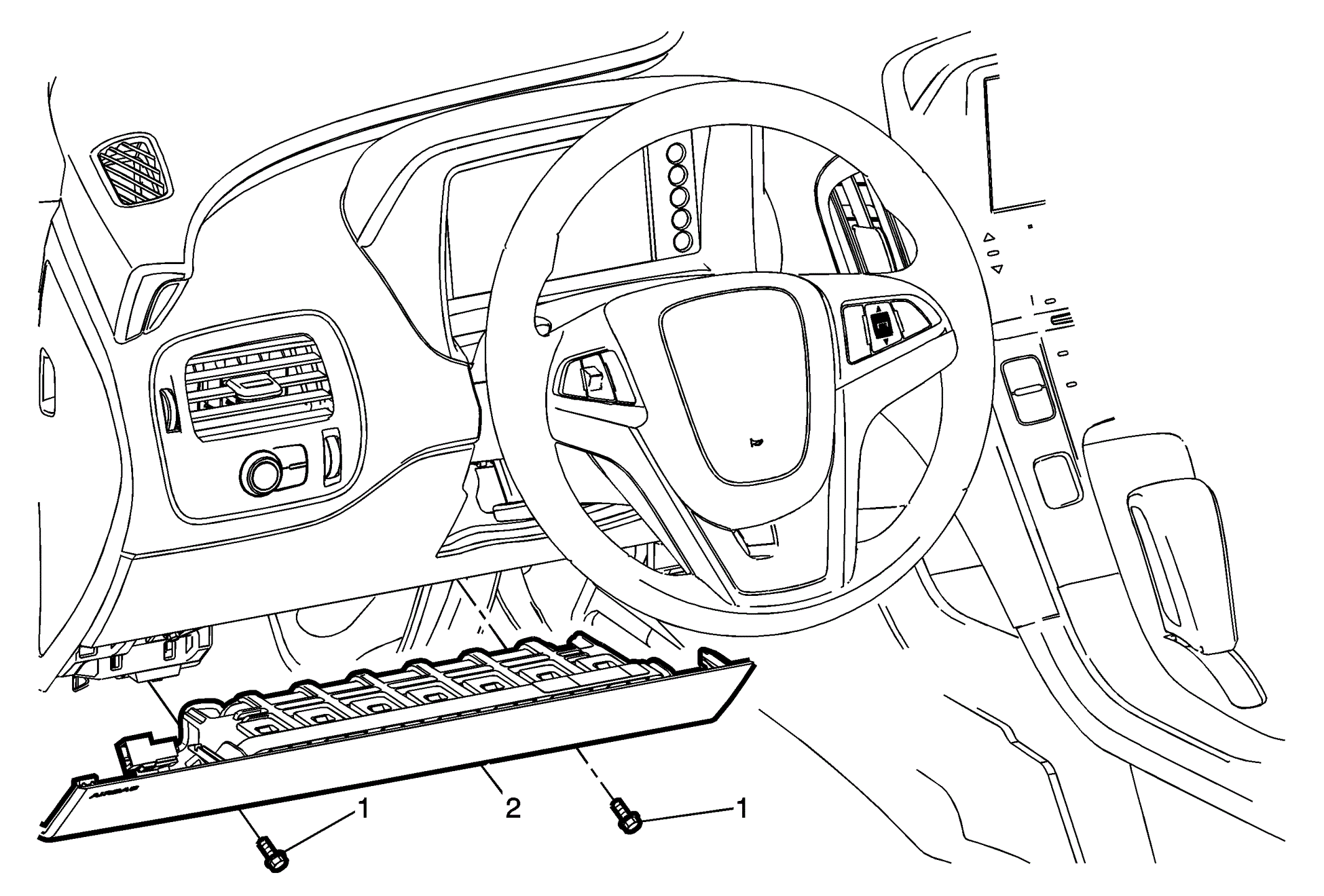

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .Refer to SIR Warning . |
|
| 1 | Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten: 9 N.m (80 lb in) |
| 2 | Inflatable Restraint Instrument Panel Lower Driver Side Module Assembly Procedure Disconnect electrical connector. |
