Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

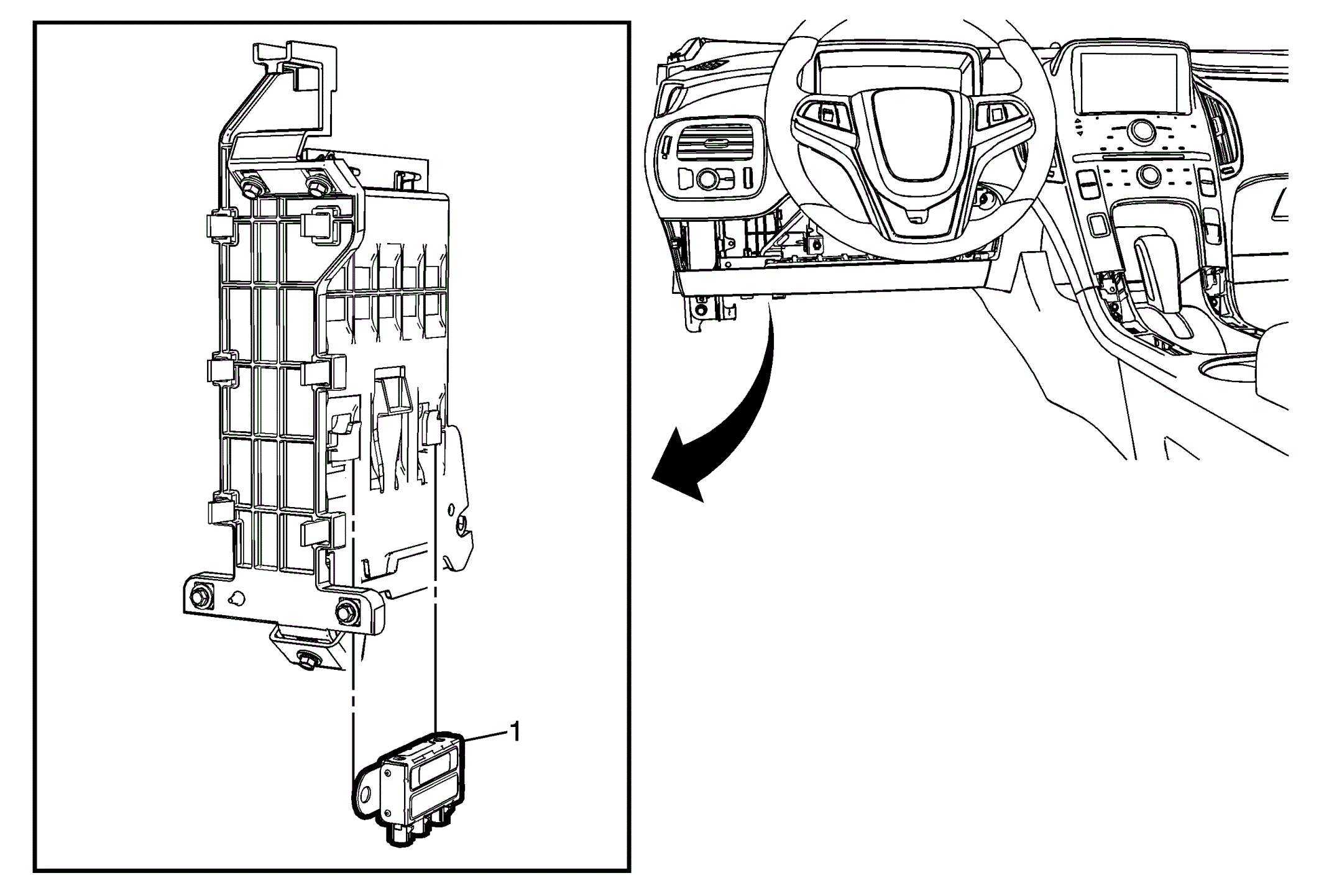

Fig 1: Navigation Signal Splitter
GM2856796Courtesy of GENERAL MOTORS COMPANY
Navigation Signal Splitter Replacement

Callout Component Name
Preliminary Procedure
Remove the steering column opening filler. Refer to Steering Column Opening Lower Filler Replacement .
1 Navigation Signal Splitter
Procedure
Disconnect the electrical connection.
