Liftgate Release Switch Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

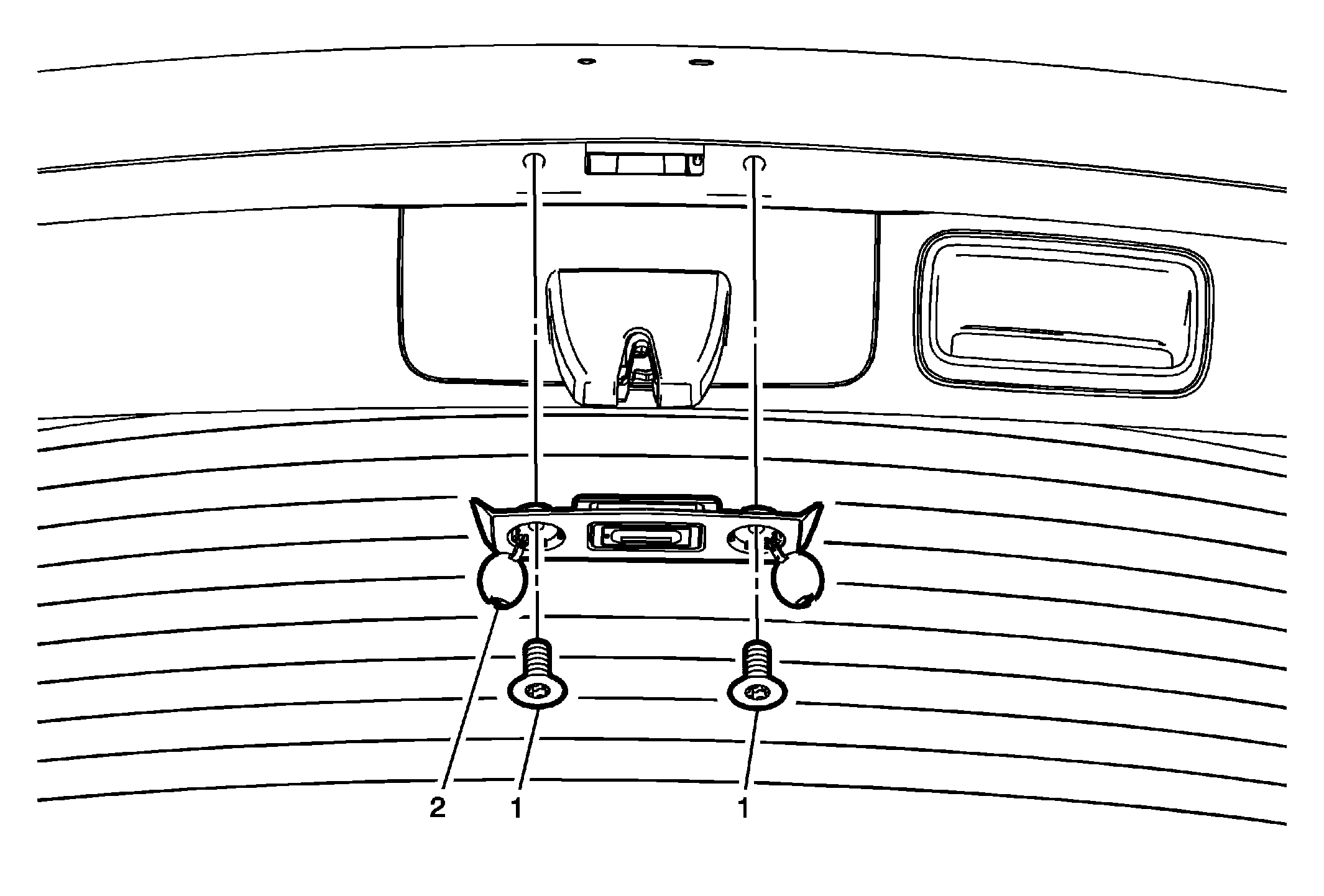

| Callout | Component Name |
|---|---|
| 1 | Liftgate Release Switch Screw
CAUTION:
Refer to Fastener Caution
. Procedure: Open the screw cover caps. Tighten: 10 N.m (89 lb in) |
| 2 | Liftgate Release Switch Procedure: Disconnect the electrical connector. |
