Rearview Camera Image Display Module Replacement

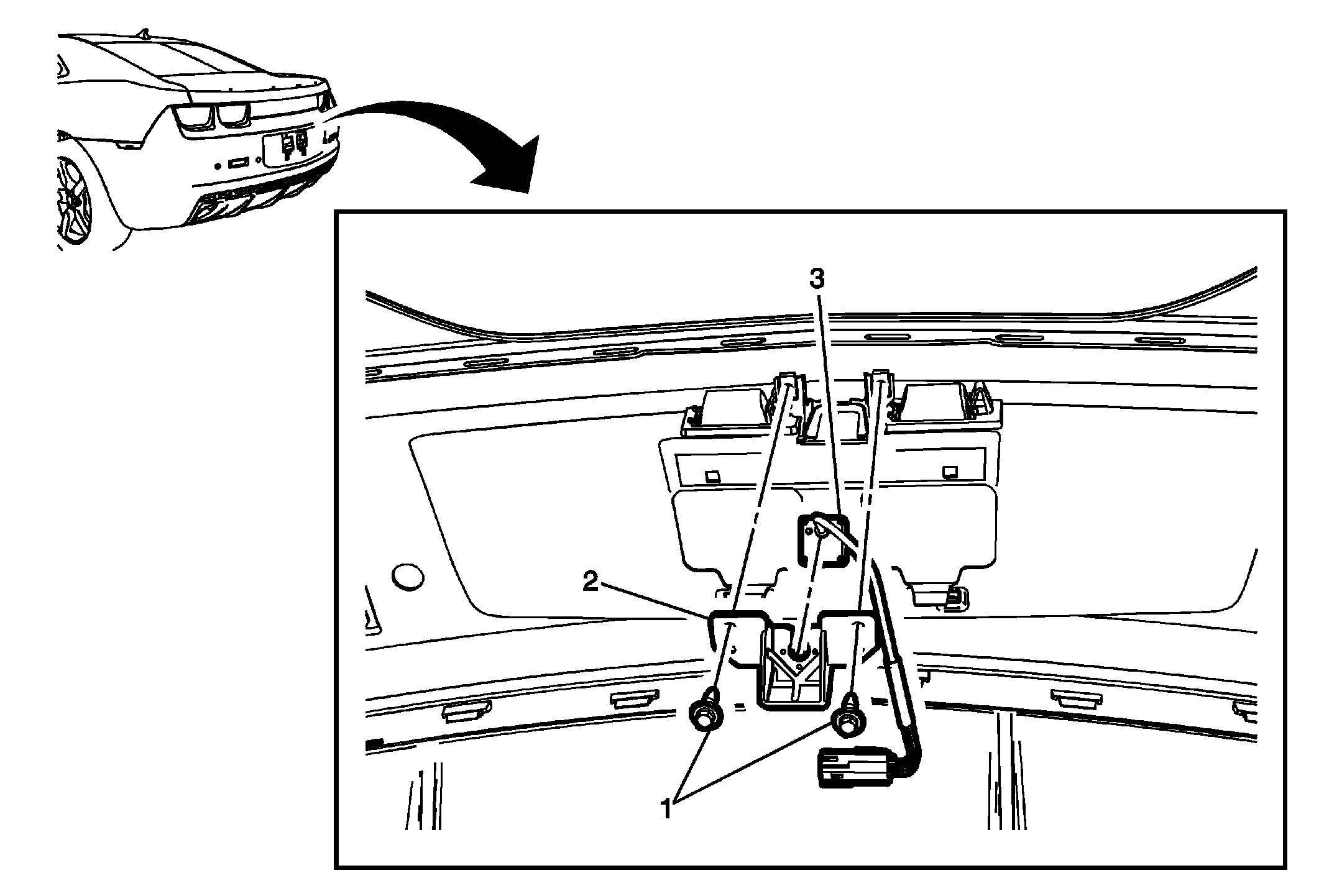

Fig 1: Rearview Camera Image Display Module & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rearview Camera Fastener (Qty:2) CAUTION: Refer to Fastener Caution .
2	Rearview Camera Image Display Module Bracket
3	Rearview Camera Image Display Module Procedure  Disconnect electrical connector.
