Right Front Engine Components (L99/LS3)

Right Front Engine Components (L99/LS3)

Items
1: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (L99, LS3, LSA, or LS7)
2: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LFX, L99, LSA, or LS3)
3: Q38 Throttle Body Q38 Throttle Body (L99, LS3, LSA, or LS7)
4: B75B Mass Air Flow/Intake Air Temperature Sensor (L99, LS3, LSA, or LS7) B75B Mass Air Flow/Intake Air Temperature Sensor (L99, LS3, LSA, or LS7)
5: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
6: B68B Knock Sensor 2 B68B Knock Sensor 2
7: B35C Engine Oil Level and Temperature Sensor (L99, LS3 or LSA) B35C Engine Oil Level and Temperature Sensor (L99, LS3 or LSA)
8: M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2
9: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L99, LS3, LSA, or LS7)

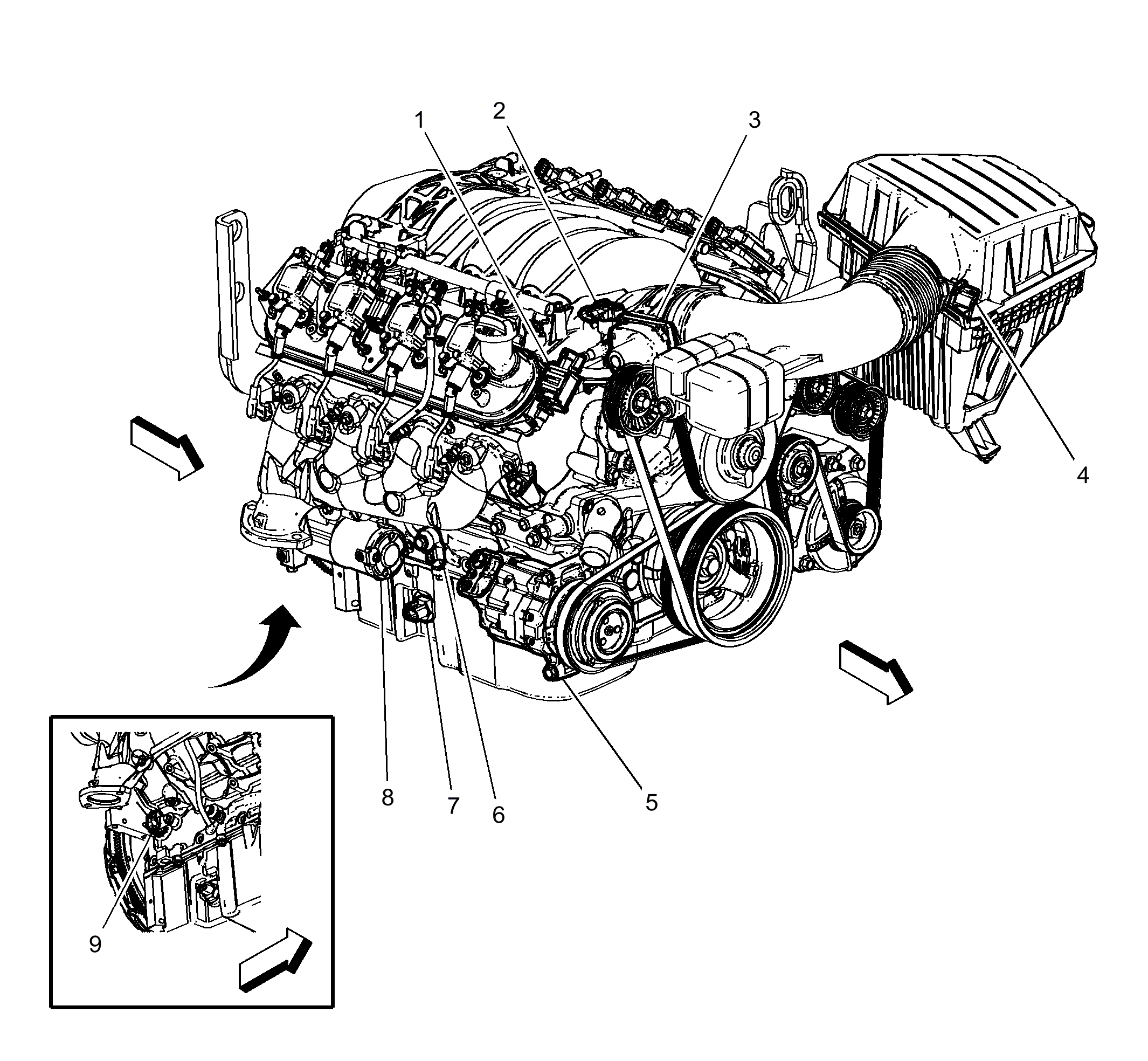

Fig 1: Right Front Engine Components (L99/LS3)
GM3649907Courtesy of GENERAL MOTORS COMPANY
