Object Detection Schematics Rear View Camera

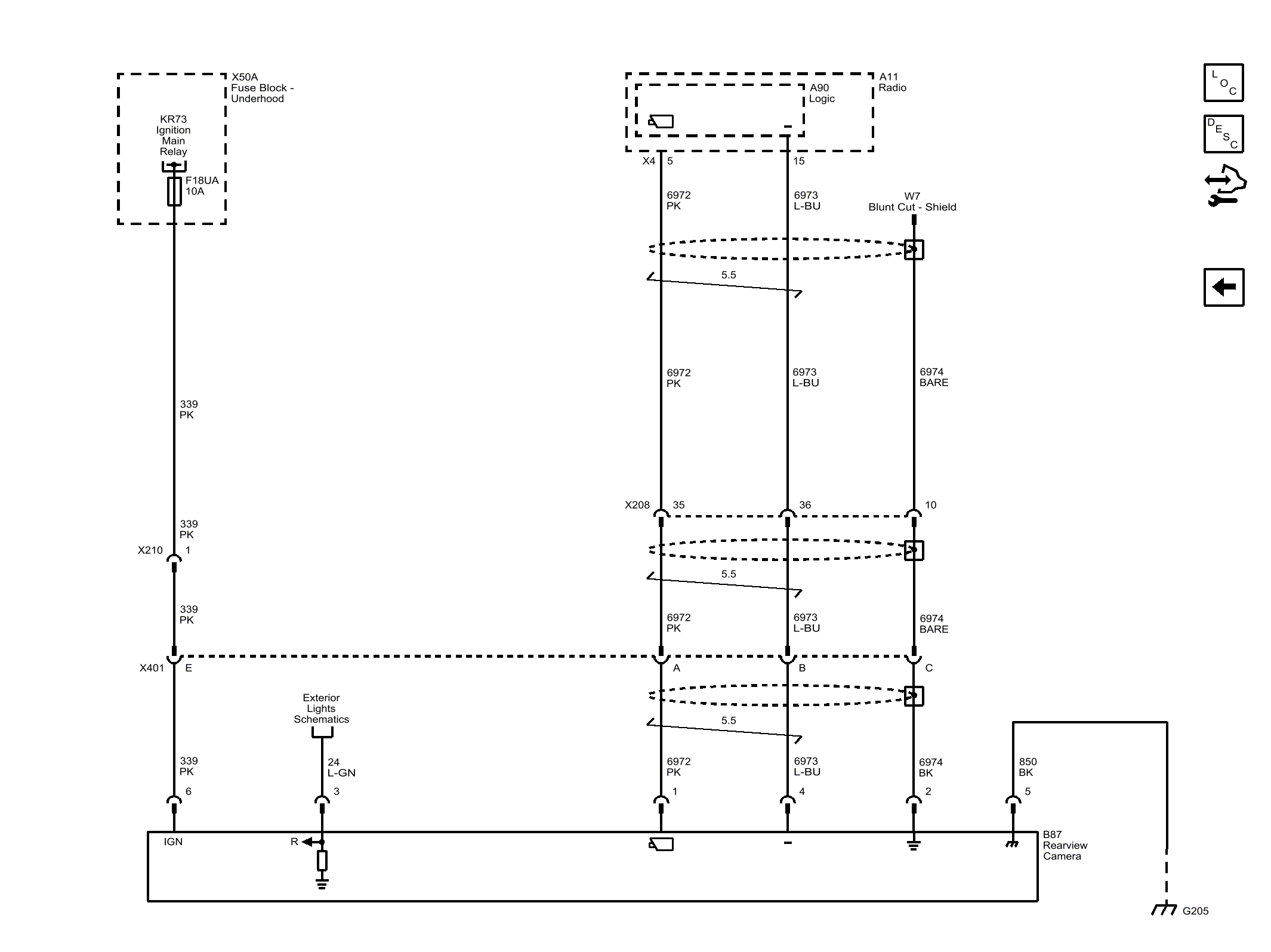

Fig 1: Object Detection Schematics Rear View Camera
Courtesy of GENERAL MOTORS COMPANY
