Theft Deterrent Module Replacement

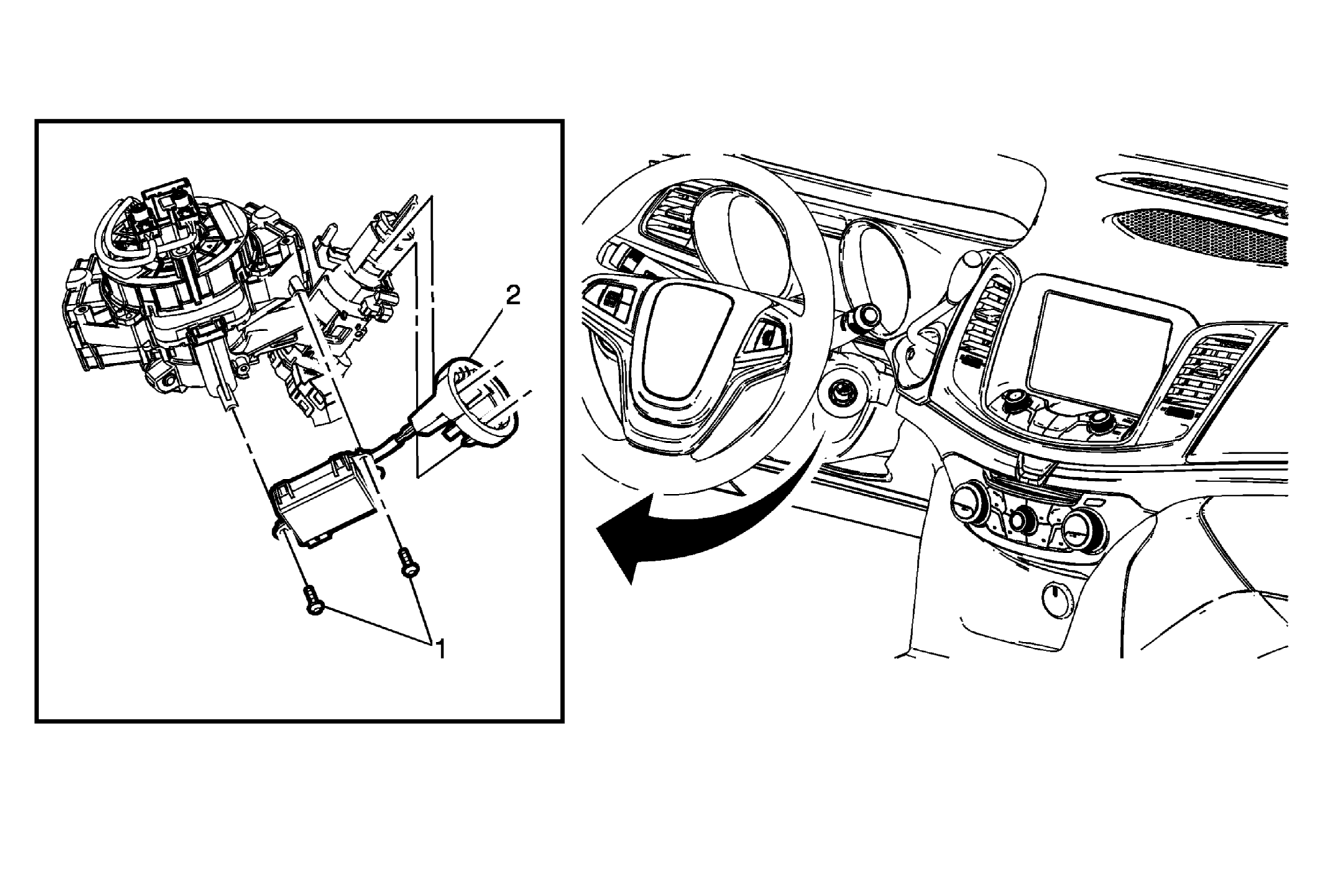

Fig 1: Theft Deterrent Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1	Theft Deterrent Module Fastener (Qty: 2)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Program the theft deterrent control module after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .

Theft Deterrent Module Fastener (Qty: 2)

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Program the theft deterrent control module after replacement. Refer to Control Module References .
