Front of Instrument Panel Components

Items
1: S30 Headlamp Switch S30 Headlamp Switch
2: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
3: P16 Instrument Cluster P16 Instrument Cluster
4: S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
5: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
6: A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X4 (U3U)
7: B10 Ambient Light Sensor (C67) B10 Ambient Light Sensor (C67)
8: B10B Ambient Light/Sunload Sensor (C68) B10B Ambient Light/Sunload Sensor (C68)
9: P19B Speaker - Center Instrument Panel (U61) P19B Speaker - Center Instrument Panel (U61)
10: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel
11: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag
12: B7A Air Temperature Sensor - Inside (C68) B7A Inside Air Temperature Sensor (C68)
13: K33 HVAC Control Module K33 HVAC Control Module X1 (C68)K33 HVAC Control Module X2 K33 HVAC Control Module X3
14: F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1 F107 Steering Wheel Air Bag X2
15: S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left

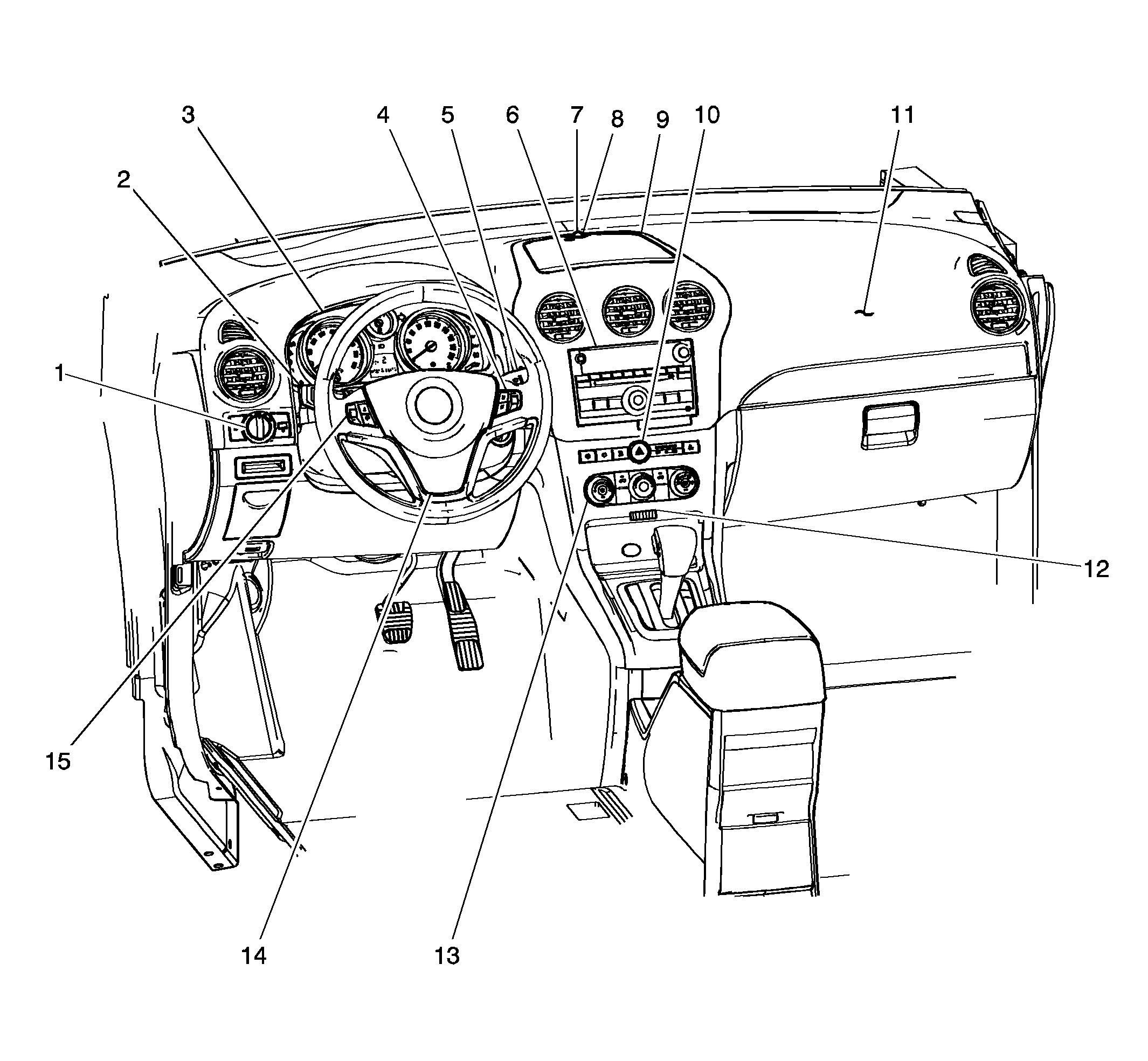

Fig 1: Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
