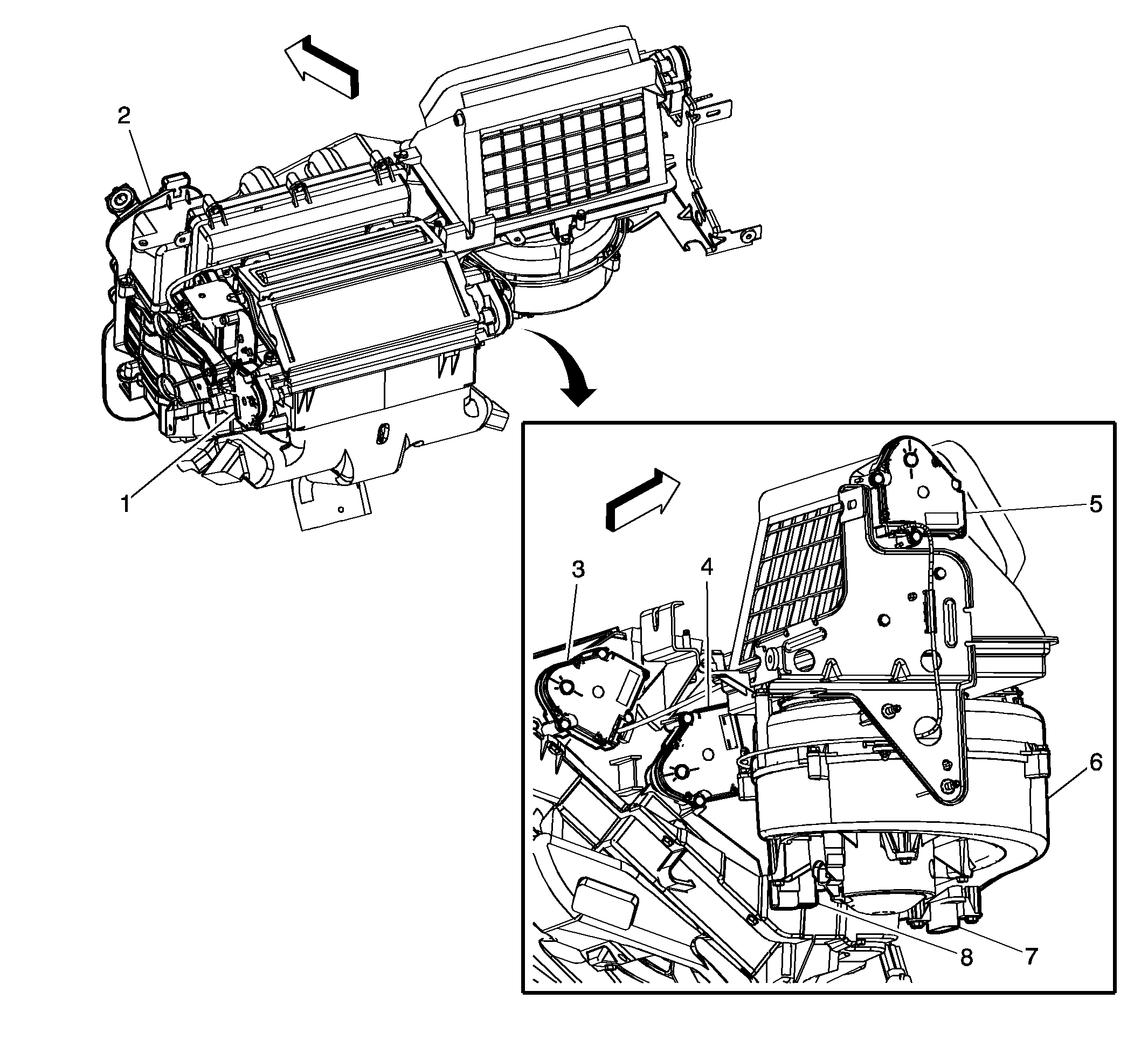

HVAC Module Components (C68)
HVAC Module Components (C68)
| Items |
|---|
| 1: M37 Mode Door Actuator (C68) M37 Mode Door Actuator |
| 2: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor (C67 or C68) |
| 3: M37 Mode Door Actuator (C68) M37 Mode Door Actuator |
| 4: M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator |
| 5: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 6: M8 Blower Motor M8 Blower Motor |
| 7: K8 Blower Motor Control Module K8 Blower Motor Control Module X1K8 Blower Motor Control Module X2 |
| 8: X202 X202 Instrument Panel Harness to HVAC Harness |
