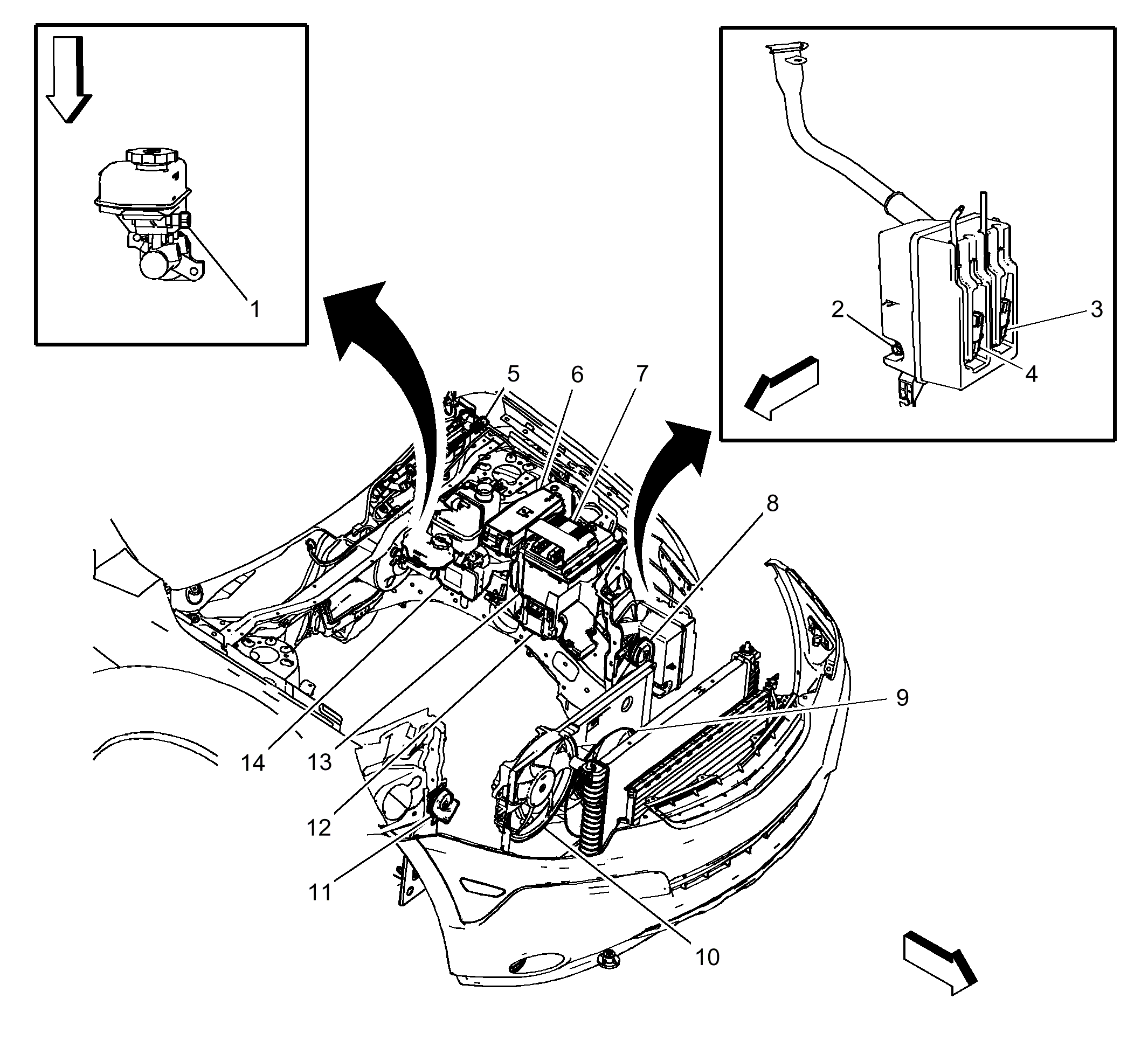

Engine Compartment Components
Engine Compartment Components
| Items |
|---|
| 1: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 2: B118B Windshield Washer Fluid Level Switch |
| 3: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 4: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 5: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 6: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4 (Battery Positive Cable) |
| 7: K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3 |
| 8: P12L Horn - Left P12L Horn - Left |
| 9: G10L Cooling Fan Motor - Left (LFW) G10L Cooling Fan Motor - Left (LFW) |
| 10: G10R Cooling Fan Motor - Right (LFW) G10R Cooling Fan Motor - Right (LFW) |
| 11: P12R Horn - Right P12R Horn - Right |
| 12: K71 Transmission Control Module |
| 13: C1 Battery C1 Battery (+)C1 Battery (-) |
| 14: K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
