Cruise Control Switch Replacement

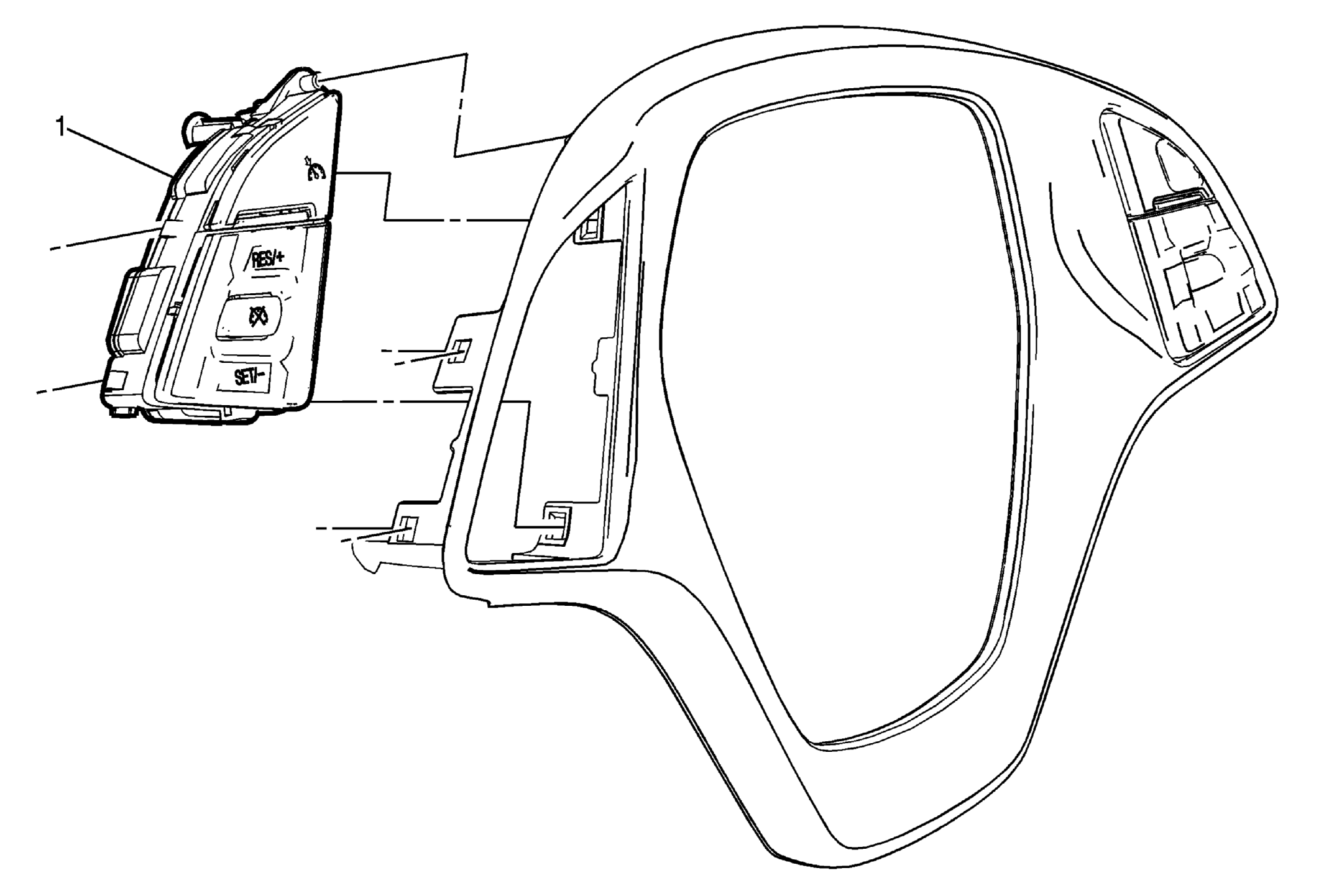

Fig 1: Cruise Control Switch
GM3396151Courtesy of GENERAL MOTORS COMPANY
Cruise Control Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement .
1 Cruise Control Switch
Procedure
Use the appropriate tool to depress the tabs and release the switch from the cover.
