Digital Radio Transceiver Module Antenna Replacement

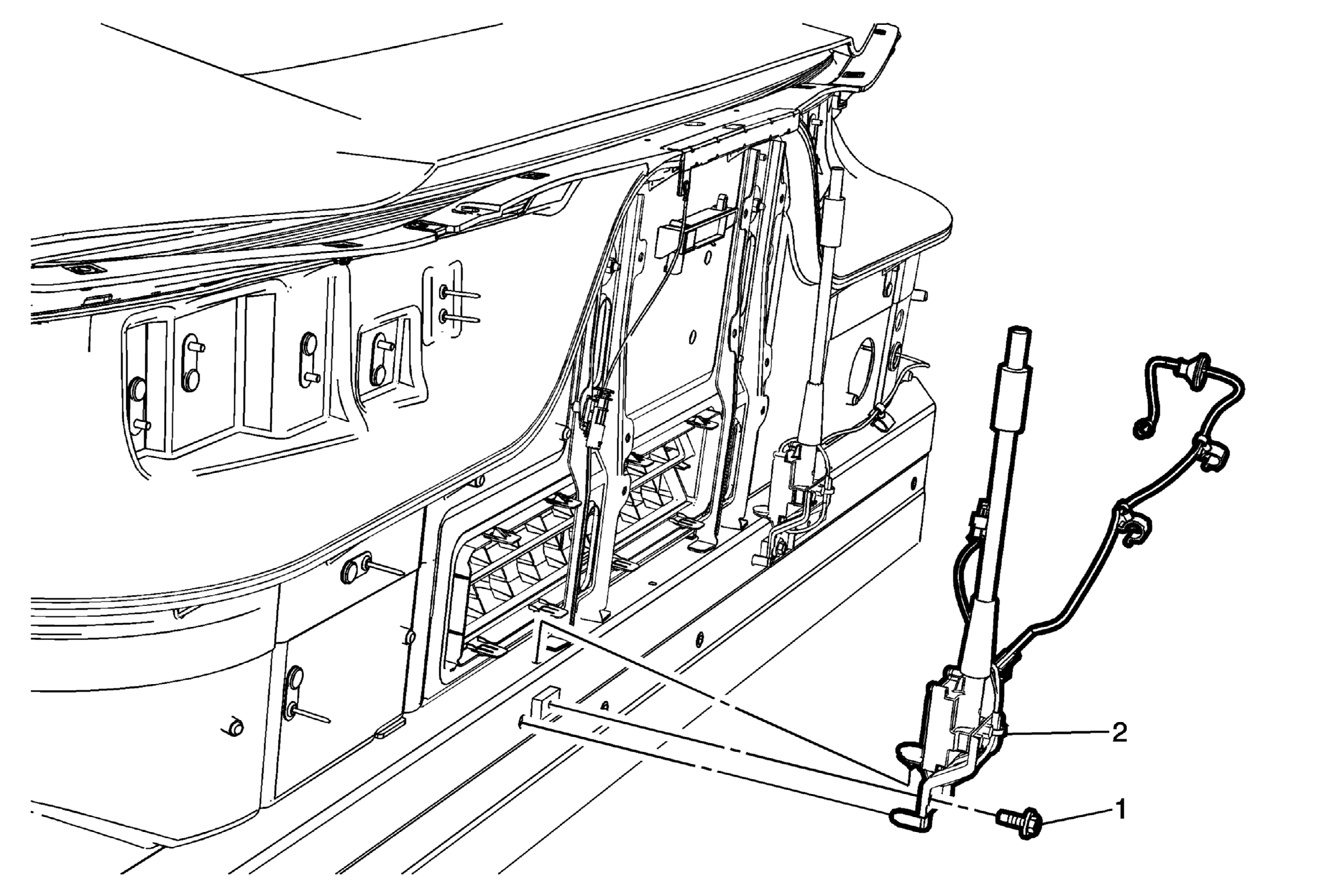

Fig 1: Digital Radio Transceiver Module Antenna

Courtesy of GENERAL MOTORS COMPANY

Digital Radio Transceiver Module Antenna Replacement

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Digital Radio Transceiver Module Antenna Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Digital Radio Transceiver Module Antenna Procedure  Disconnect the electrical connector, release clips from rear impact bar, and unclip cable.
