Navigation Signal Splitter Replacement

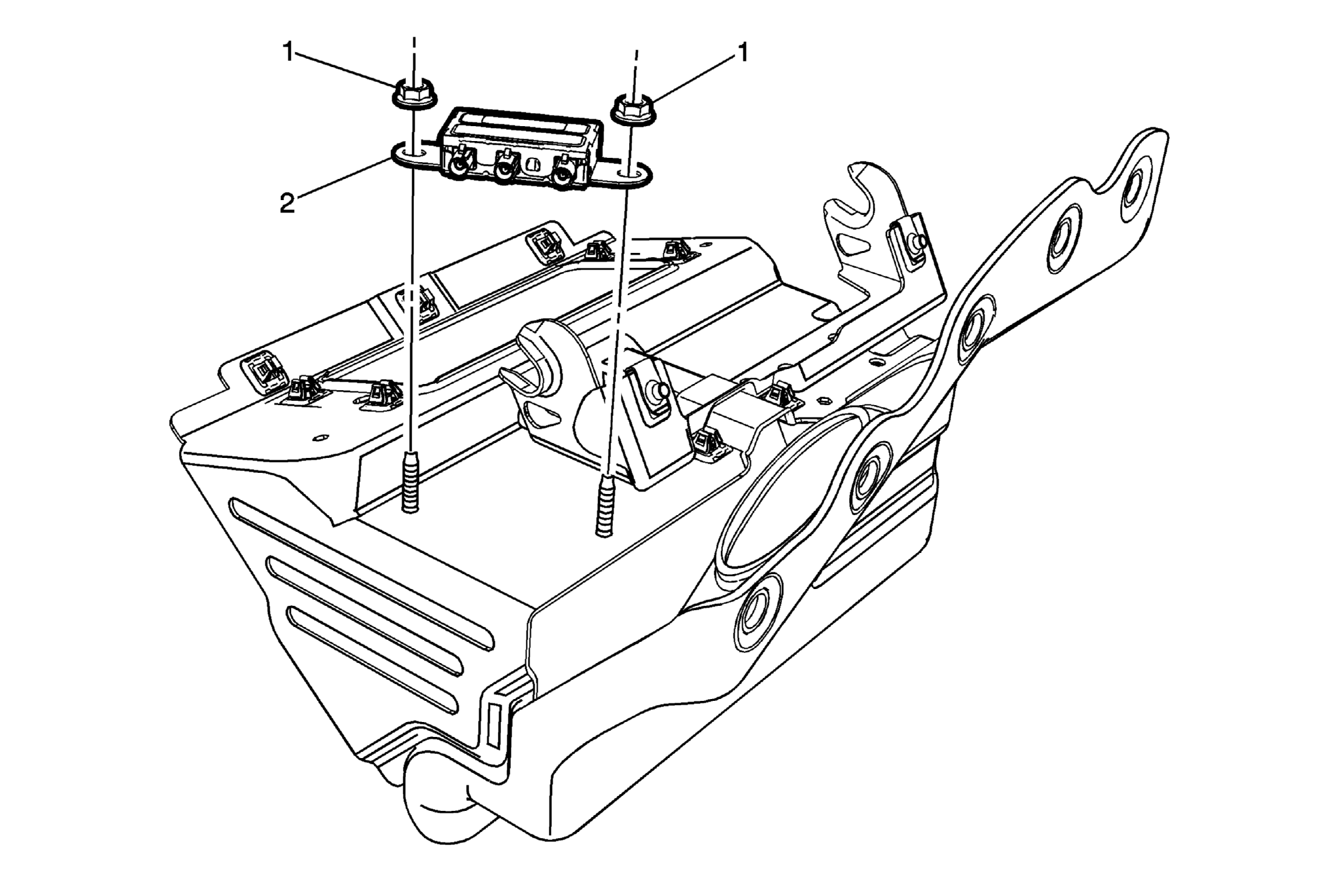

Fig 1: Navigation Signal Splitter
GM3391387Courtesy of GENERAL MOTORS COMPANY
Navigation Signal Splitter Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel lower airbag bracket. Refer to Instrument Panel Lower Airbag Bracket Replacement .
1 Navigation Signal Splitter Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Navigation Signal Splitter
Procedure
Disconnect the electrical connectors.
