Front Seat Heater Control Module Replacement

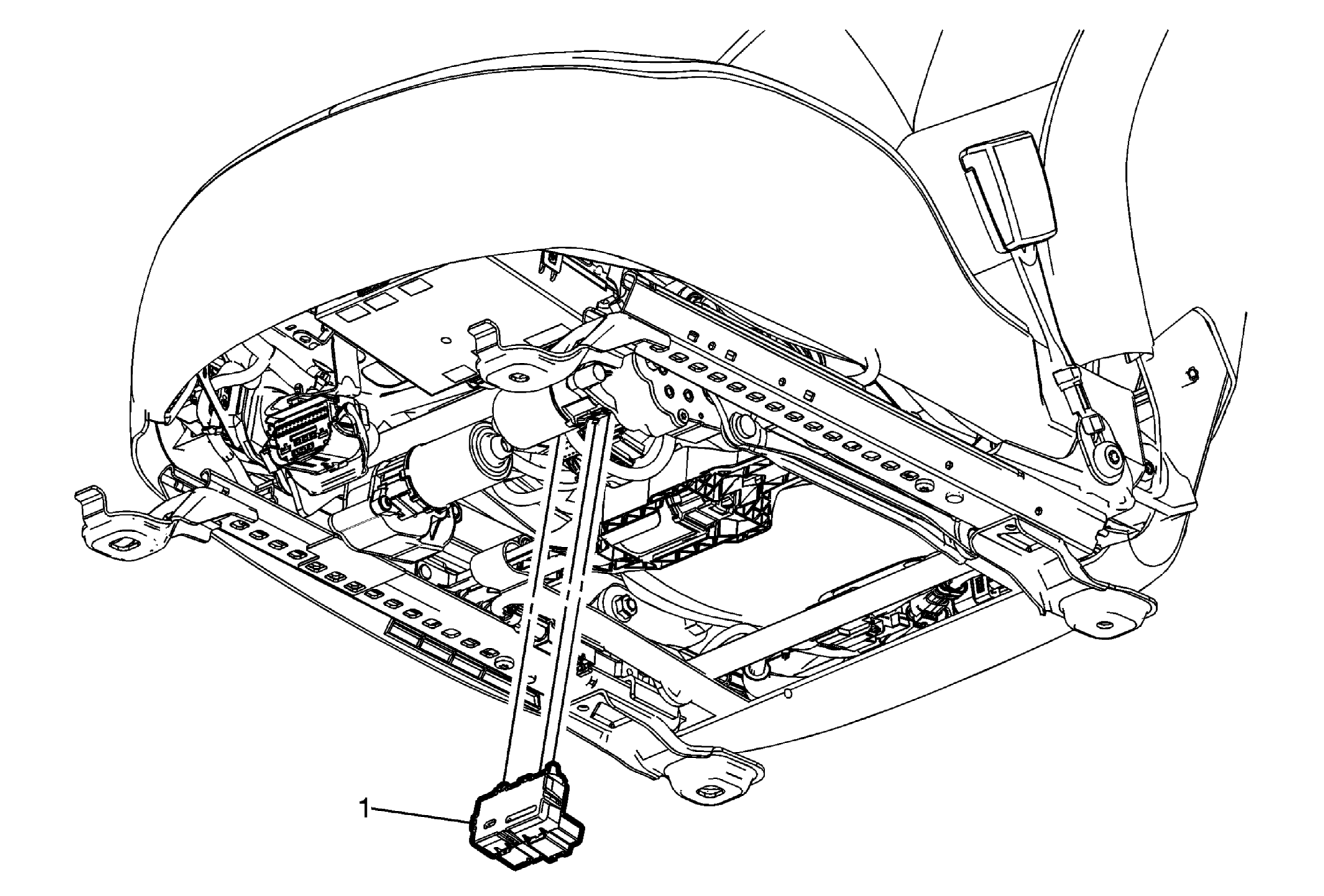

Fig 1: Front Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Heater Control Module Procedure Disconnect electrical connectors. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .

Front Seat Heater Control Module

Procedure
