Removal Procedure

  1. Place the ignition switch in the OFF position.
  2. Block the drive wheels.
  3. Disable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Disabling .
  4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  5. Remove the left rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Remove the left rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
  7. Disconnect the electronic parking brake control module electrical connector.

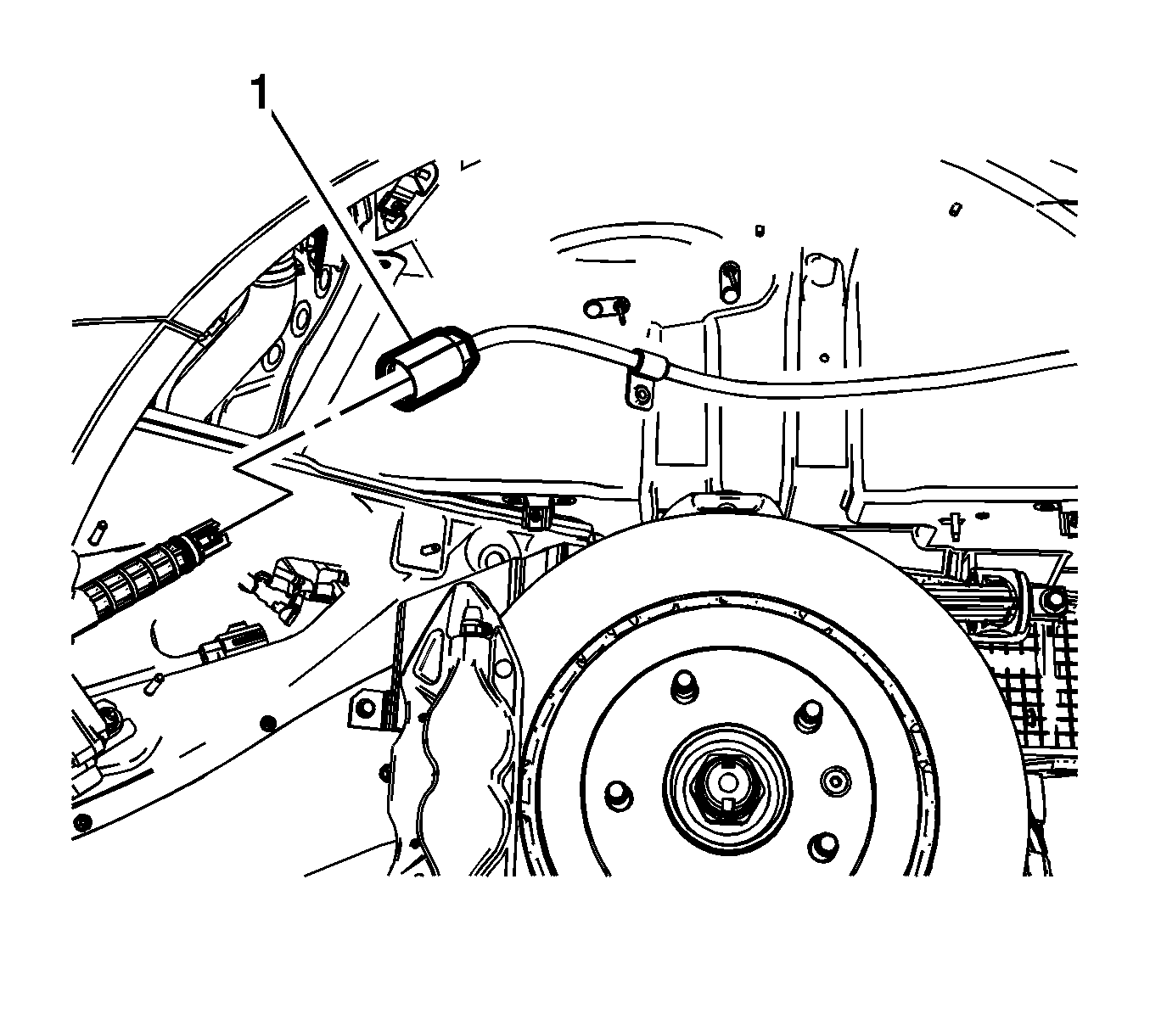

    8. Fig 1: Parking Brake Front Cable Nut
    GM3356837Courtesy of GENERAL MOTORS COMPANY
  8. Disconnect the parking brake front cable nut (1).

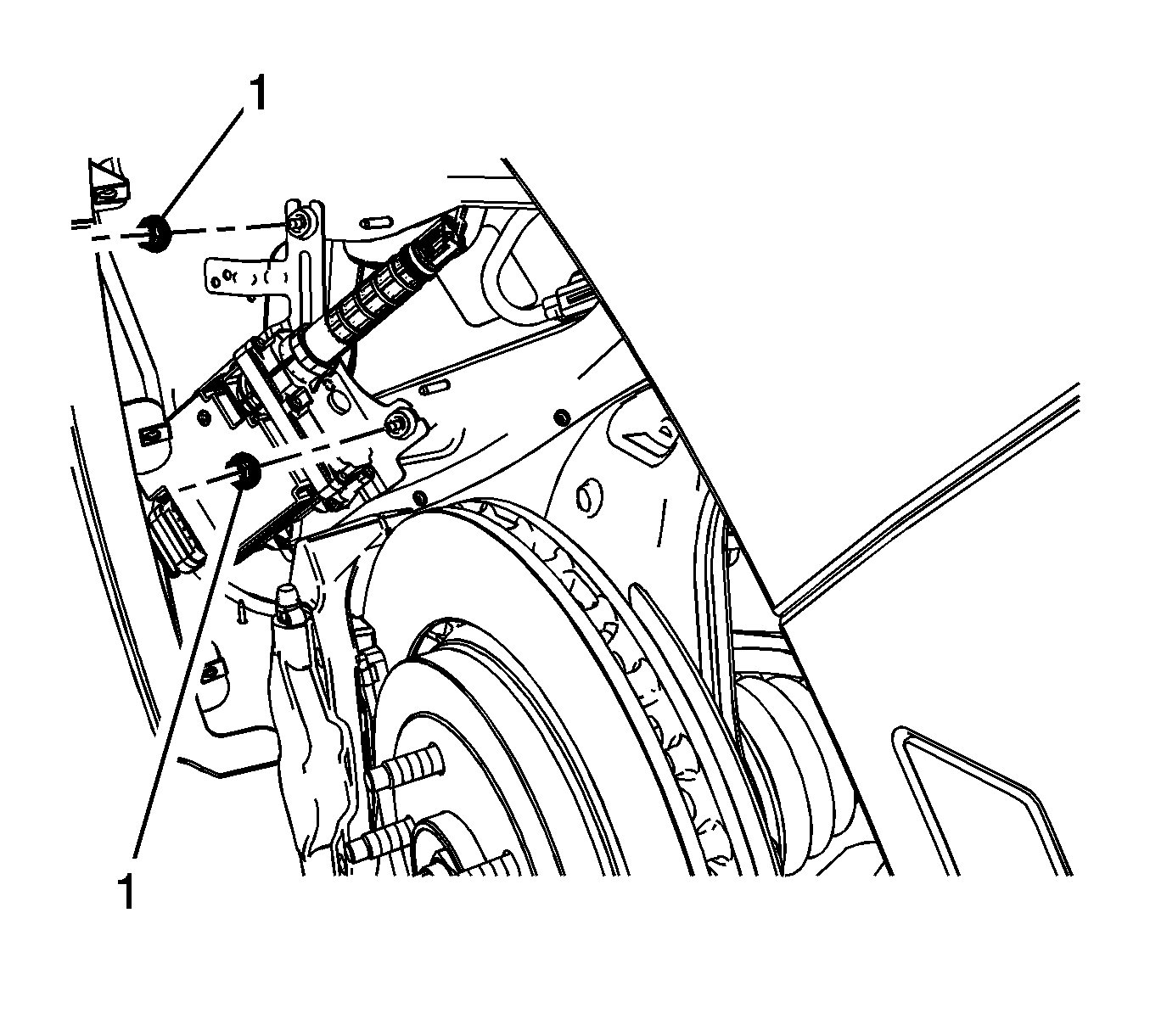

    9. Fig 2: Electronic Parking Brake Control Module Bracket Nuts
    GM3356839Courtesy of GENERAL MOTORS COMPANY
  9. Remove the electronic parking brake control module bracket nuts (1).
    10. NOTE:

    A small amount of denatured alcohol may be used as a lubricant on the bracket insulator to ease removal.

  10. Remove the electronic parking brake control module and bracket assembly from the lower insulator stud.

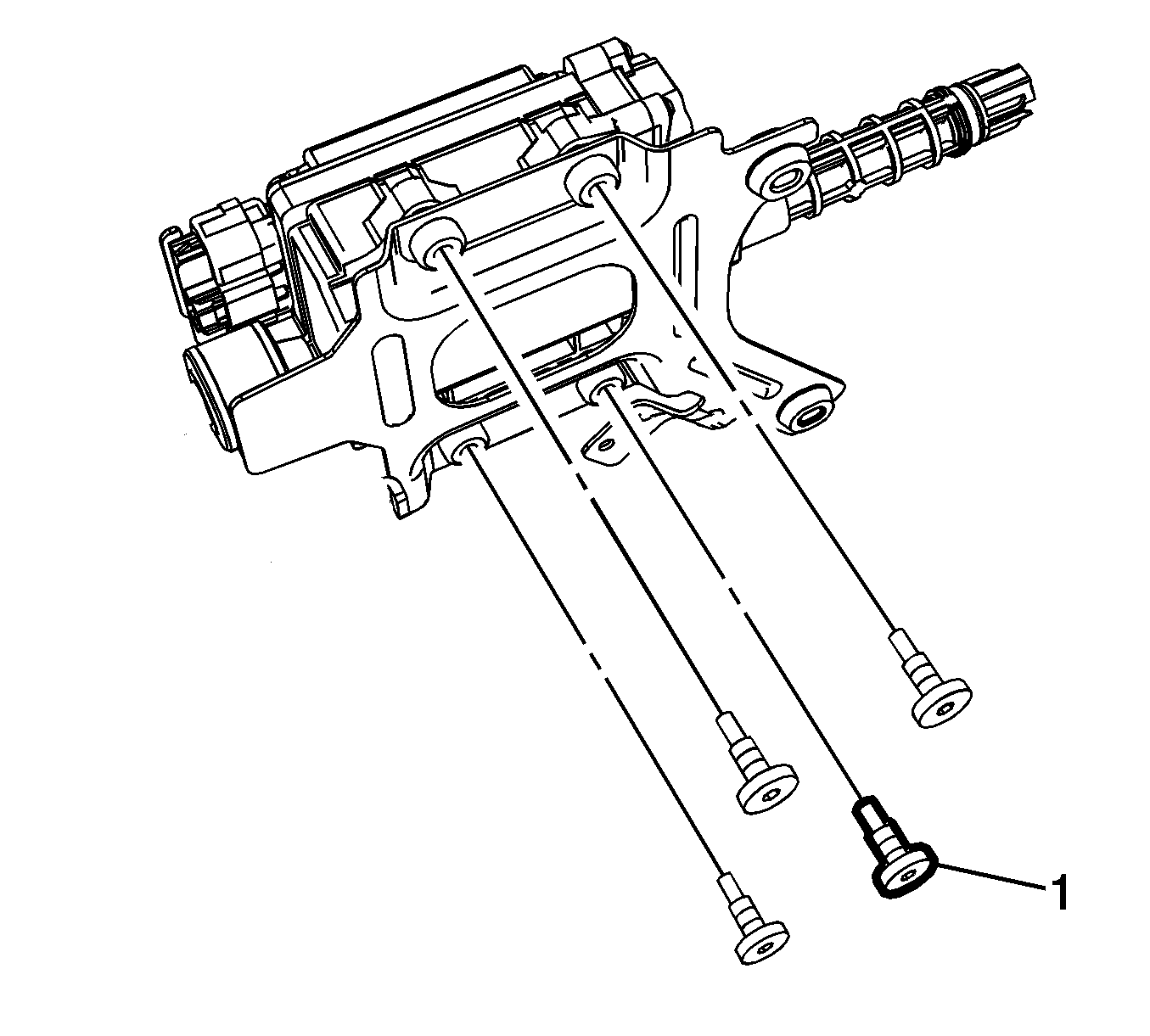

    11. Fig 3: Electronic Parking Brake Control Module Bolts
    GM3356842Courtesy of GENERAL MOTORS COMPANY
  11. Remove the electronic parking brake control module bolts (1).
  12. Remove the electronic parking brake control module from the bracket.
