Battery Negative Cable Replacement

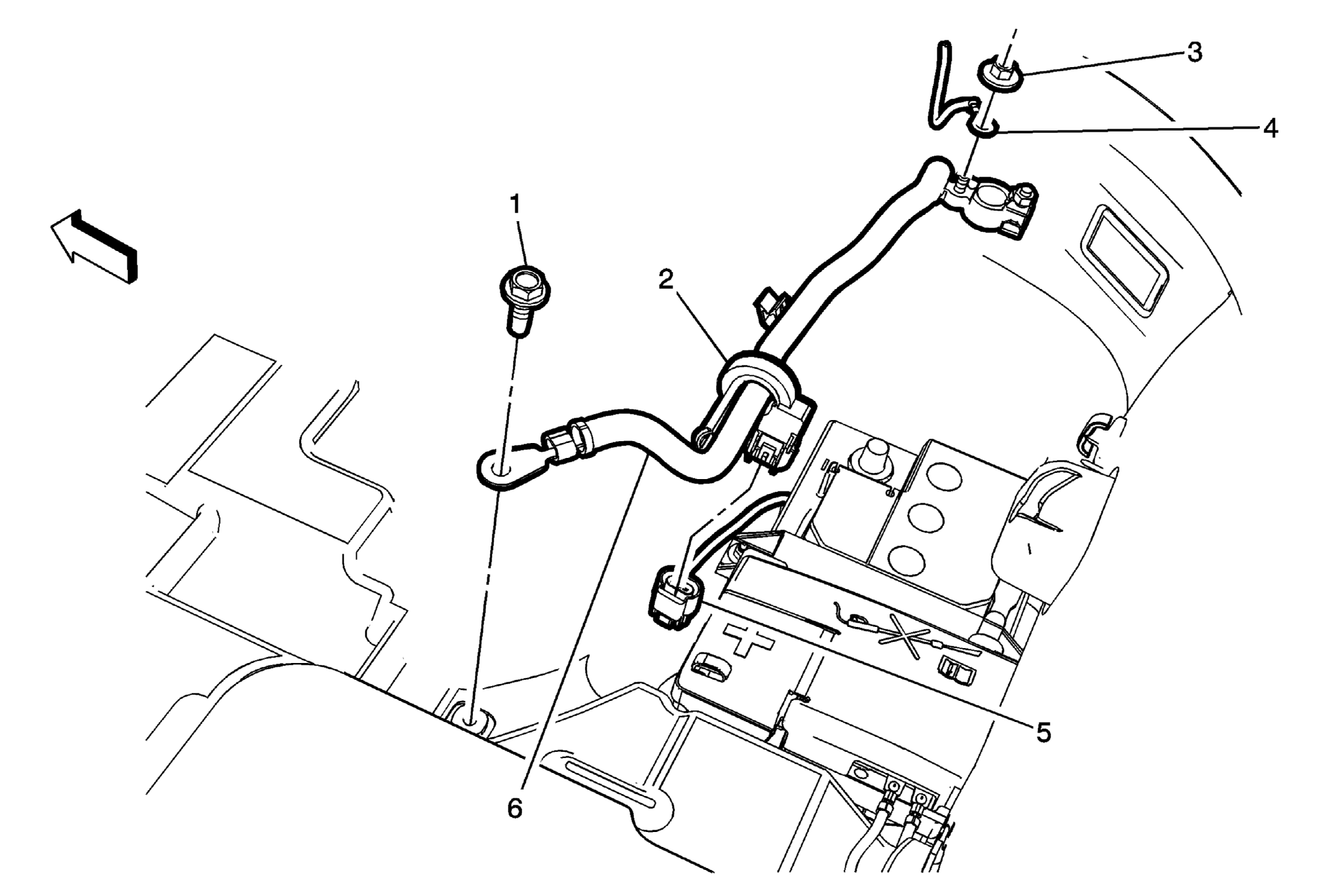

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Battery Negative Cable Frame Ground Fastener CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Battery Current Sensor
3	Body Harness Ground Terminal Fastener Tighten 9 (80 lb in)
4	Body Harness Ground Terminal
5	Body Harness Connector
6	Battery Negative Cable Procedure Disconnect the body harness connector (5) from the battery current sensor (2). Remove the fastener (3) securing the body harness terminal (4) to the battery negative cable clamp. Remove the battery negative cable frame ground fastener (1) and remove the battery negative cable (6), from the rear compartment.
