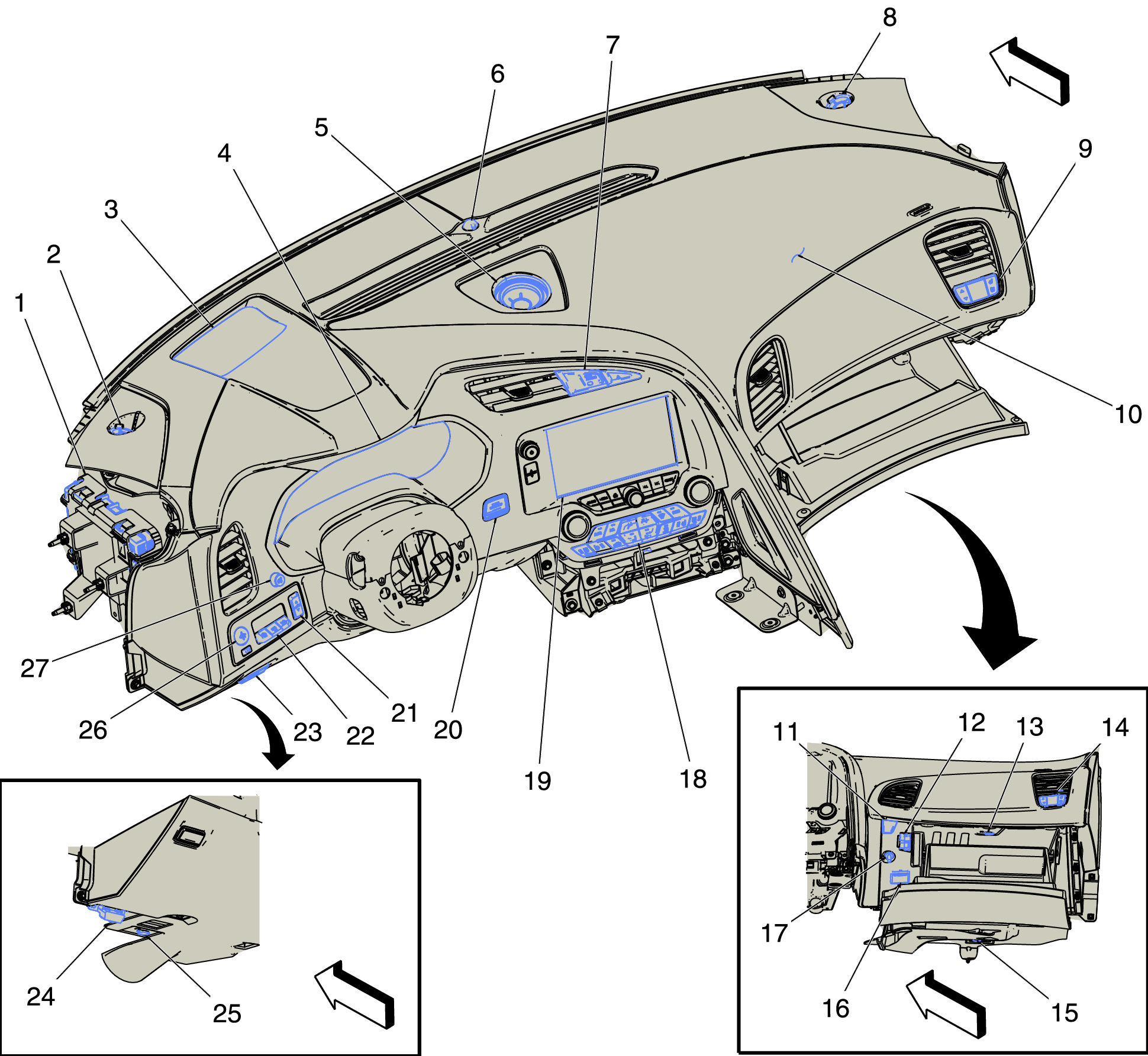

| 1:
K74 Human Machine Interface Control Module K74 Human Machine Interface Control Module X1K74 Human Machine Interface Control Module X2K74 Human Machine Interface Control Module X3K74 Human Machine Interface Control Module X4K74 Human Machine Interface Control Module X5K74 Human Machine Interface Control Module X7 (UE1)K74 Human Machine Interface Control Module X7 |
| 2:
P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter |
| 3:
K78 Head-Up Display Module K78 Head-Up Display Module X1K78 Head-Up Display Module X2 |
| 4:
P16 Instrument Cluster P16 Instrument Cluster X1P16 Instrument Cluster X2 |
| 5:
P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel |
| 6:
B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 7:
S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel |
| 8:
P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 9:
K33A HVAC Control Module - Auxiliary K33A HVAC Control Module - Auxiliary |
| 10:
F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag |
| 11:
S137 Instrument Panel Compartment Door Unlatch Switch S137 Instrument Panel Compartment Door Unlatch Switch |
| 12:
M91 Instrument Panel Compartment Door Unlatch Actuator M91 Instrument Panel Compartment Door Unlatch Actuator |
| 13:
E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
| 14:
K33A HVAC Control Module - Auxiliary K33A HVAC Control Module - Auxiliary |
| 15:
E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right |
| 16:
X20 Memory Card Receptacle X20 Memory Card Receptacle X1X20 Memory Card Receptacle X2 |
| 17:
S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch |
| 18:
A20 Radio/HVAC Controls |
| 19:
P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X4P17 Info Display Module X5 |
| 20:
S38 Ignition Mode Switch S38 Ignition Mode Switch |
| 21:
S22B Folding Top Control Switch S22B Folding Top Control Switch |
| 22:
S27 Head-Up Display Switch S27 Head-Up Display Switch |
| 23:
S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel |
| 24:
X84 Data Link Connector X84 Data Link Connector |
| 25:
E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left |
| 26:
S52 Outside Rearview Mirror Switch S52 Outside Rearview Mirror Switch |
| 27:
S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
