Front Seat Belt Guide Replacement

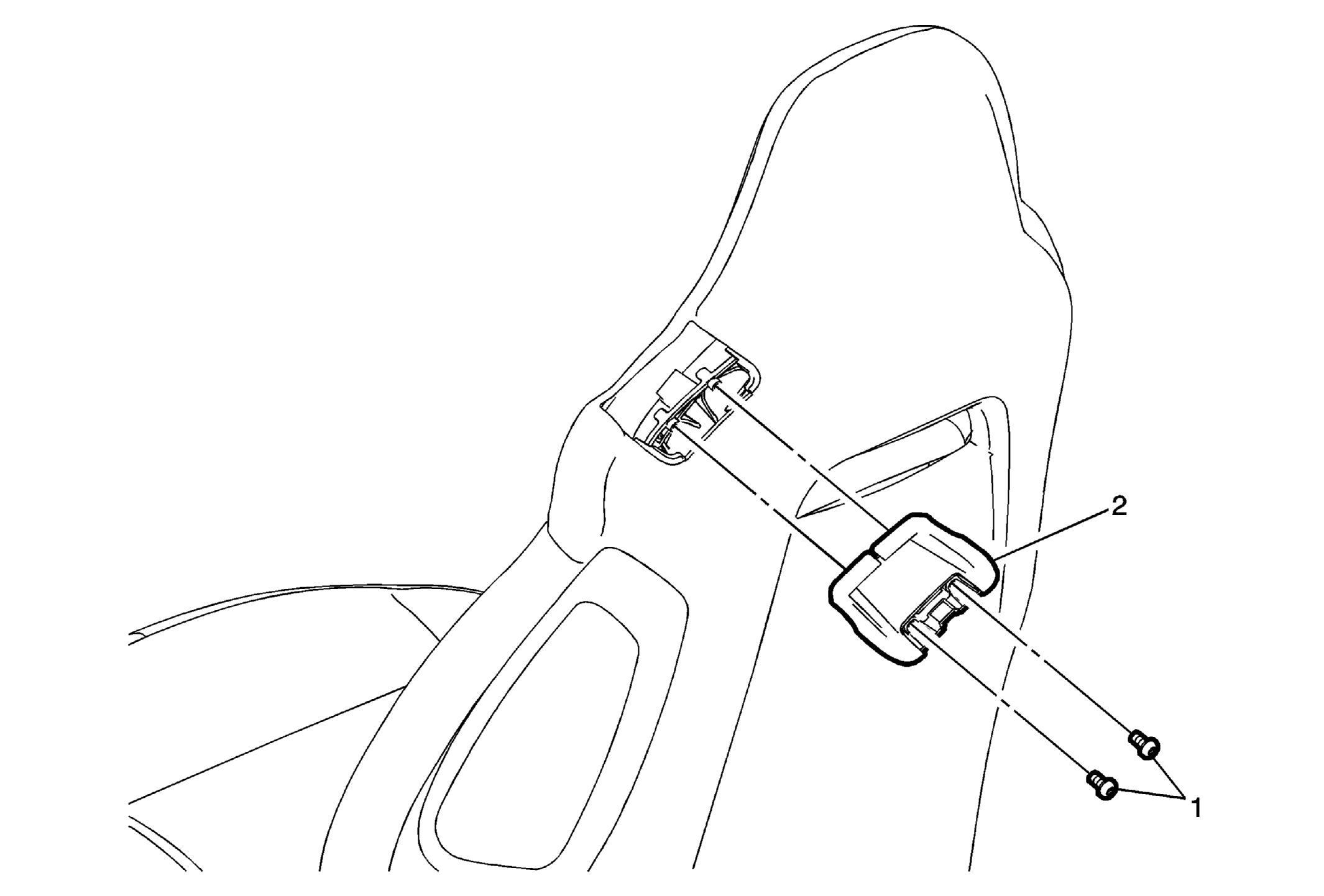

Fig 1: Front Seat Belt Guide
GM3392062Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Guide Replacement

Callout Component Name
Preliminary Procedure
Remove the front seat belt guide cap. Refer to Front Seat Belt Guide Bolt Cap Replacement .
1 Front Seat Belt Guide Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.3 N.m (1.7 lb ft)
2 Front Seat Belt Guide
Procedure
Disengage the front seat belt guide by pushing the guide forward towards the front of the seat.
