Turn Signal Multifunction Switch Replacement

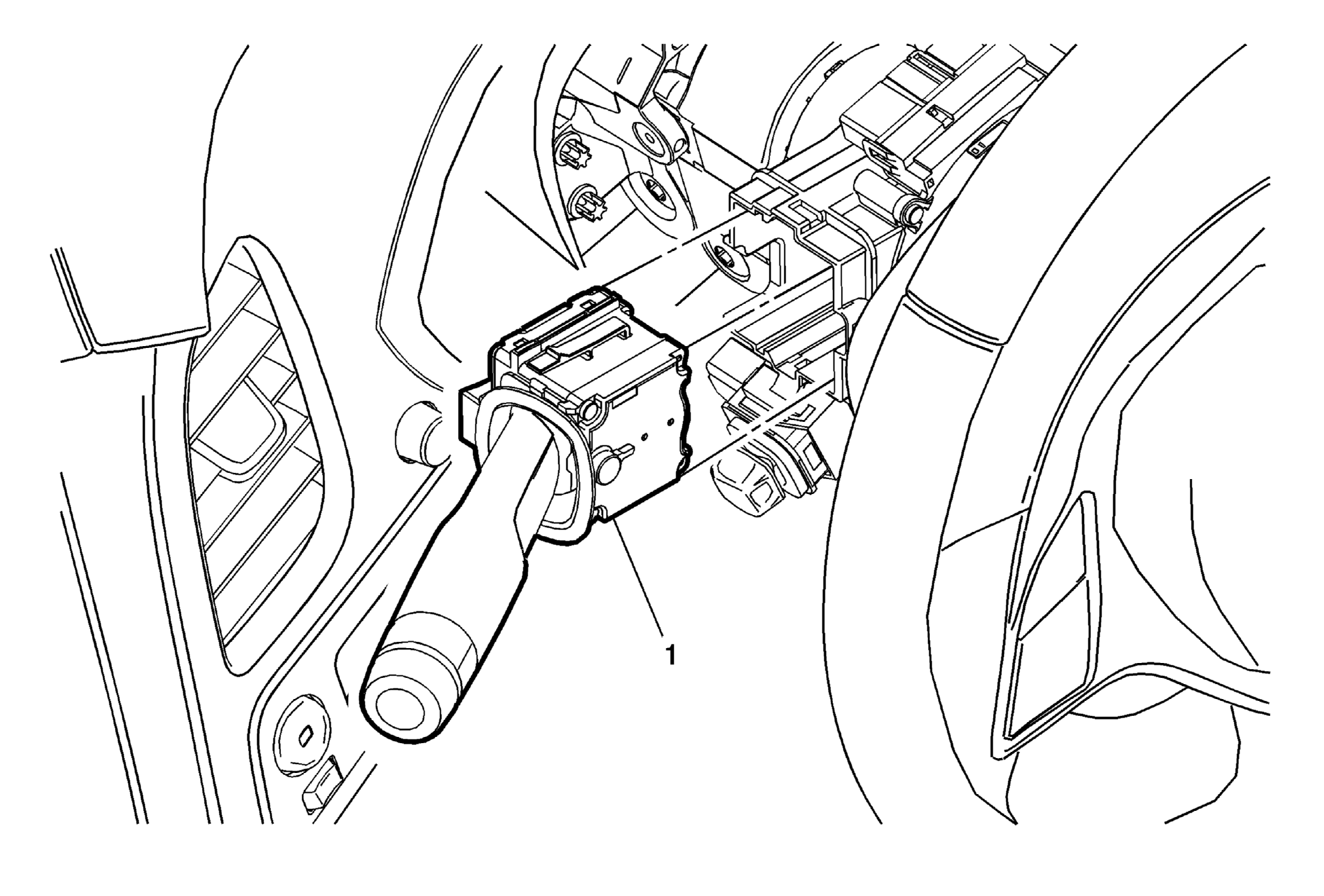

Fig 1: Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column upper and lower trim covers. Refer to Steering Column Lower Trim Cover Replacement .
1	Turn Signal Multifunction Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Remove the steering column upper and lower trim covers. Refer to Steering Column Lower Trim Cover Replacement .

Turn Signal Multifunction Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.
