Right Side of Engine Compartment Components

Right Side of Engine Compartment Components

Items
1:  B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front
2:  B152RF Suspension Position Sensor - Right Front B152RF Suspension Position Sensor - Right Front
3:  Q37RF Shock Absorber Actuator - Right Front Q37RF Shock Absorber Actuator - Right Front
4:  X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5
5:  B55 Hood Ajar Switch B55 Hood Ajar Switch

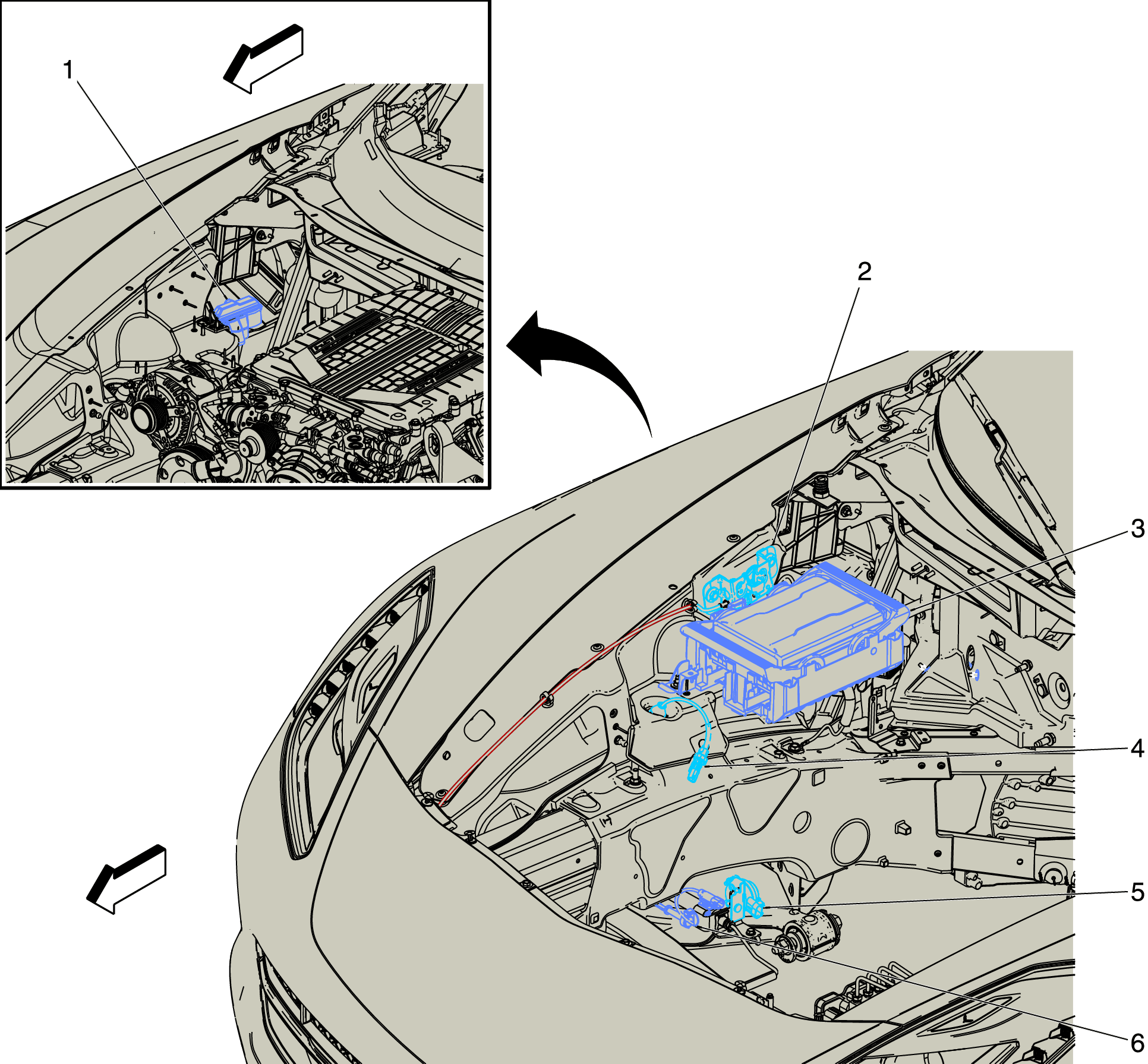

Fig 1: Right Side of Engine Compartment Components
GM3393086Courtesy of GENERAL MOTORS COMPANY
