Generator Pulley Replacement
Generator Pulley Replacement

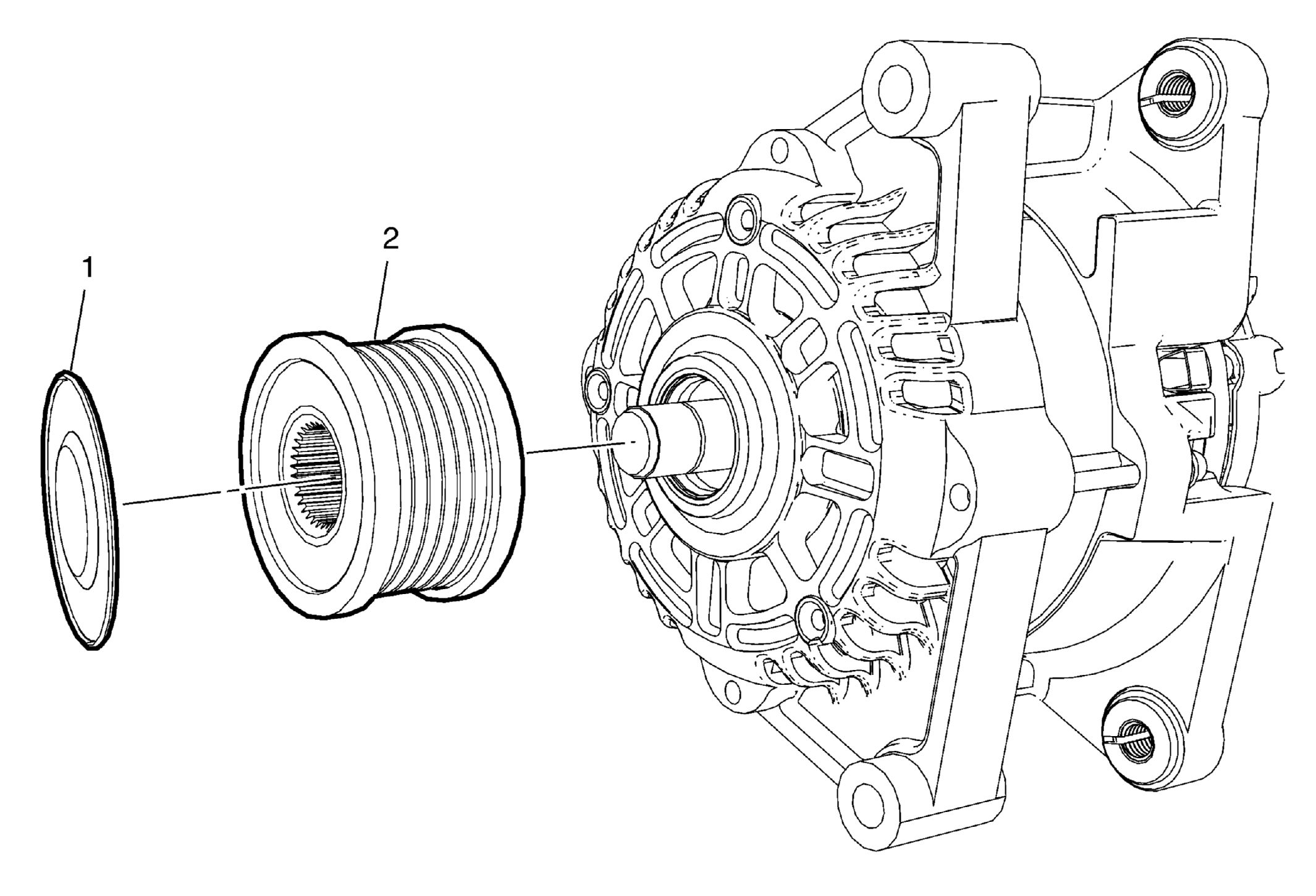

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the generator. Refer to Generator Replacement (1.4L LUV) , Generator Replacement (1.8L LUW and LWE) , Generator Replacement (2.0L Diesel LUZ) . |
|
| 1 | Generator Pulley Nut Cap |
| 2 | Generator Pulley
CAUTION:
Refer to Fastener Caution . Procedure
NOTE:
Note the left-hand thread. Remove the generator pulley by using the EN-6372 counterhold. Tighten 80 (59 lb ft) Special Tools EN-6372 Counterhold For equivalent regional tools, refer to Special Tools (Removal and Installation) , Special Tools (Diagnostic Tools) . |
