Air Cleaner Element Replacement

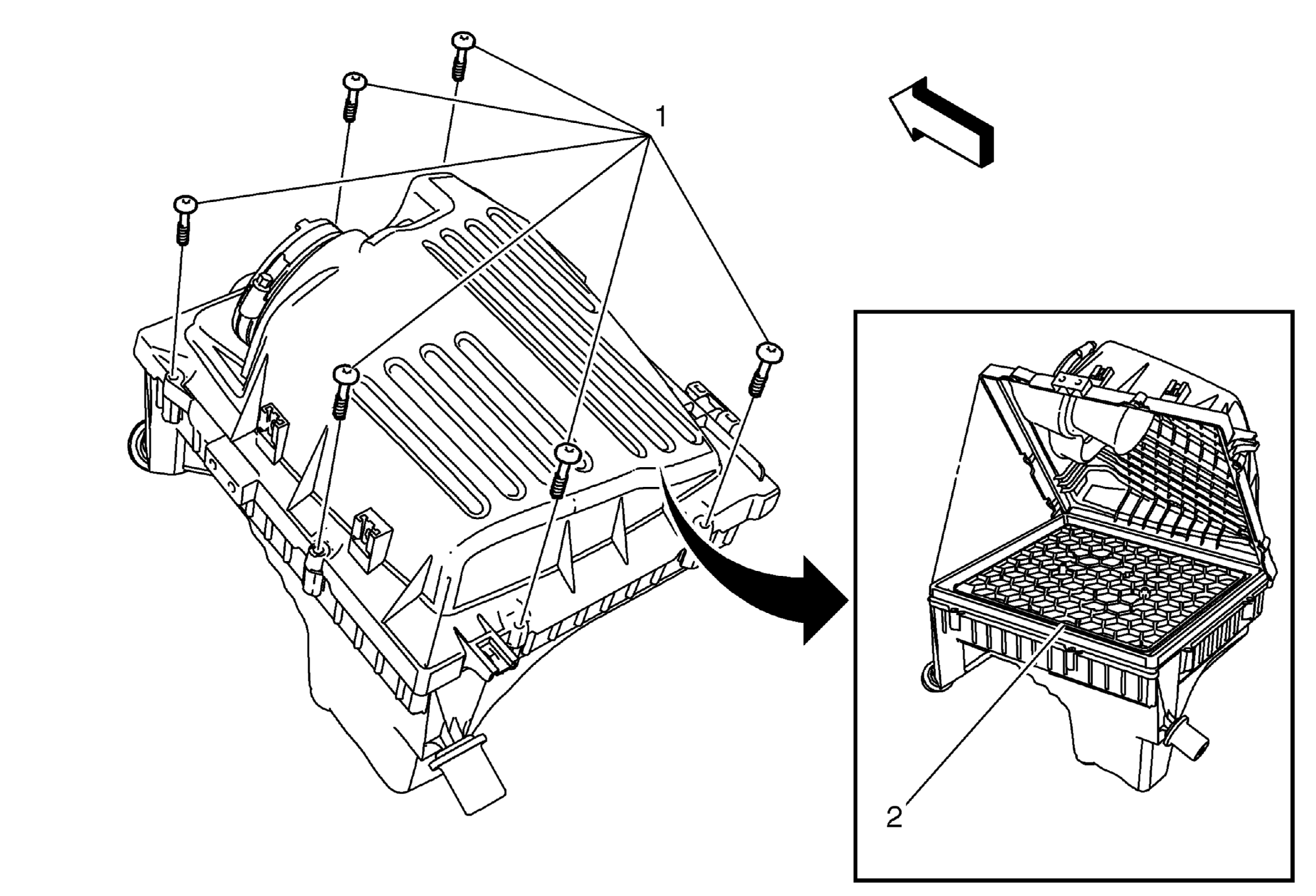

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the mass airflow sensor. Refer to Mass Airflow Sensor Replacement .
1	Air Cleaner Housing Bolt (Qty: 6) CAUTION: Refer to Fastener Caution .
2	Air Cleaner Element Procedure Open the air cleaner assembly to access the air cleaner element.

Callout

Component Name

Preliminary Procedures

Air Cleaner Housing Bolt (Qty: 6)

CAUTION:

Air Cleaner Element
Procedure
Open the air cleaner assembly to access the air cleaner element.
