Camshaft Position Sensor Replacement

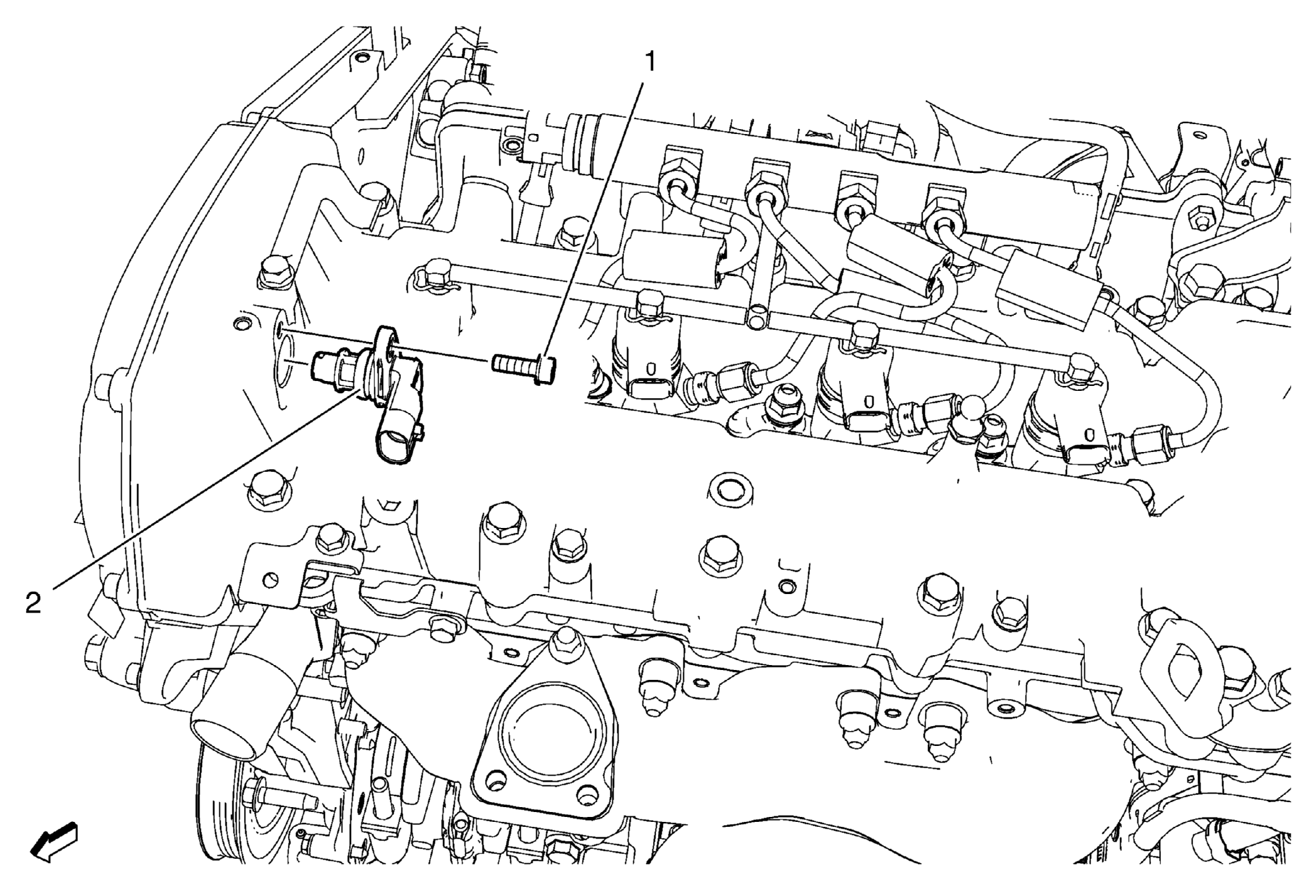

Fig 1: Camshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Camshaft Position Sensor Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Camshaft Position Sensor Procedure Disconnect the electrical connector. After replacement of the camshaft position sensor, use a scan tool to perform the appropriate reset function. Refer to K20 Engine Control Module: Programming and Setup (LUZ)

Callout

Component Name

Preliminary Procedures

Camshaft Position Sensor Bolt (Qty: 1)

CAUTION:

Tighten
9 N.m (80 lb in)

Camshaft Position Sensor

Procedure

Disconnect the electrical connector.
After replacement of the camshaft position sensor, use a scan tool to perform the appropriate reset function. Refer to K20 Engine Control Module: Programming and Setup (LUZ)
