Installation Procedure

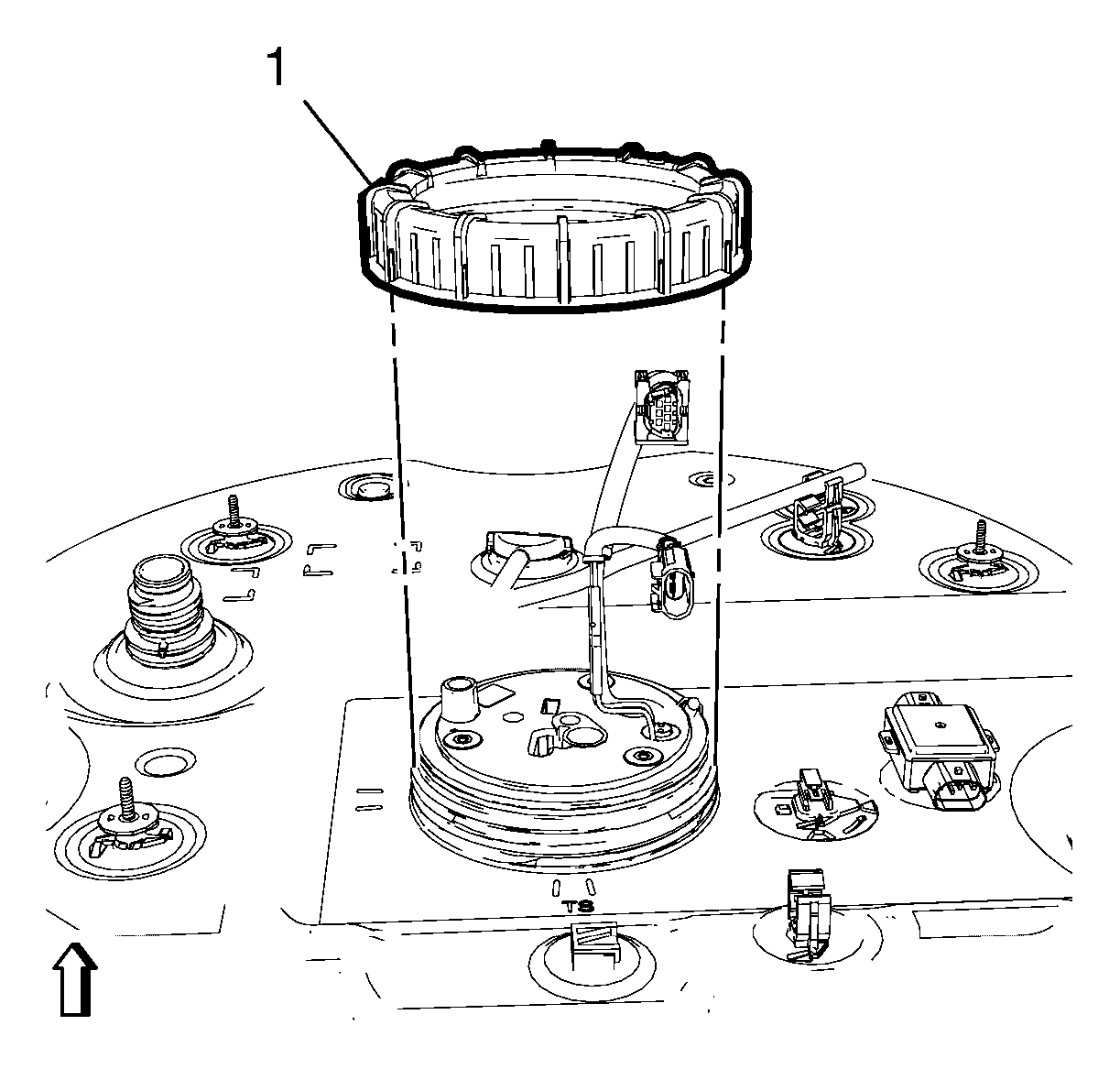

- Loosely install the emission reduction fluid tank pump module ring (1).
- Install the emission reduction fluid tank pump module ring (2) and tighten to 90 (66 lb ft), use the EN-48378 remover/installer (1).
- Install the emission reduction fluid supply pump module. Refer to Emission Reduction Fluid Supply Pump Module Replacement .
- Install the emission reduction fluid tank insulator - upper. Refer to Emission Reduction Fluid Tank Insulator Replacement - Upper .
CAUTION:
Refer to Component Fastener Tightening Caution .
