Installation Procedure

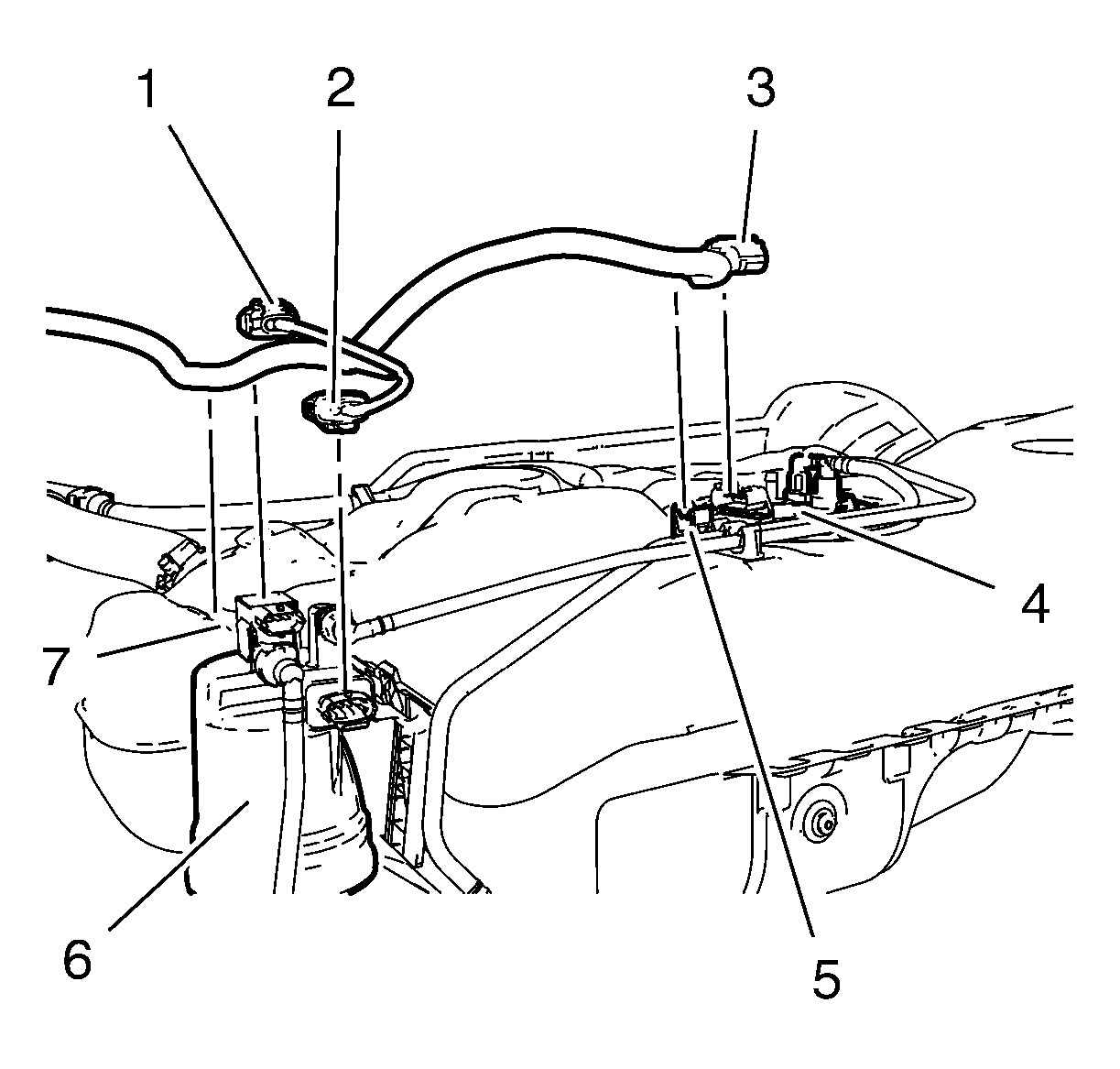

- Raise the fuel tank with a suitable adjustable jack to a height where the fuel pump wiring harness plug (3) is accessible.
- Clip in the wiring harness to the clip (5, 7).
- Connect the fuel pump wiring harness plug (3) to the fuel pump module (4).
- Connect the 2 fuel filter wiring harness plugs (1, 2) to the fuel filter (6).

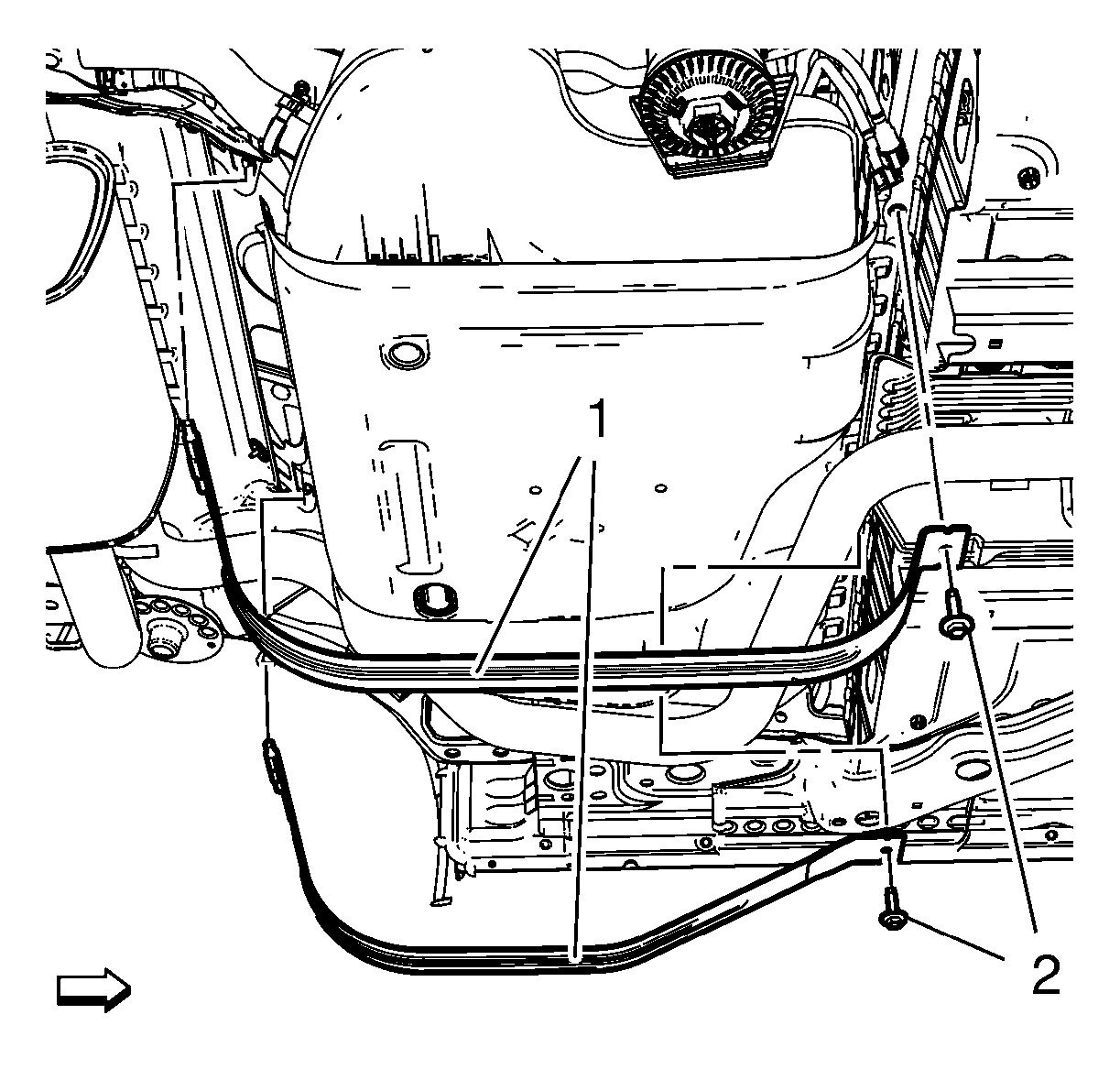

- Install the 2 fuel tank straps (1).
- Install the 2 fuel tank strap bolts (2) and tighten to 23 N.m (17 lb ft).

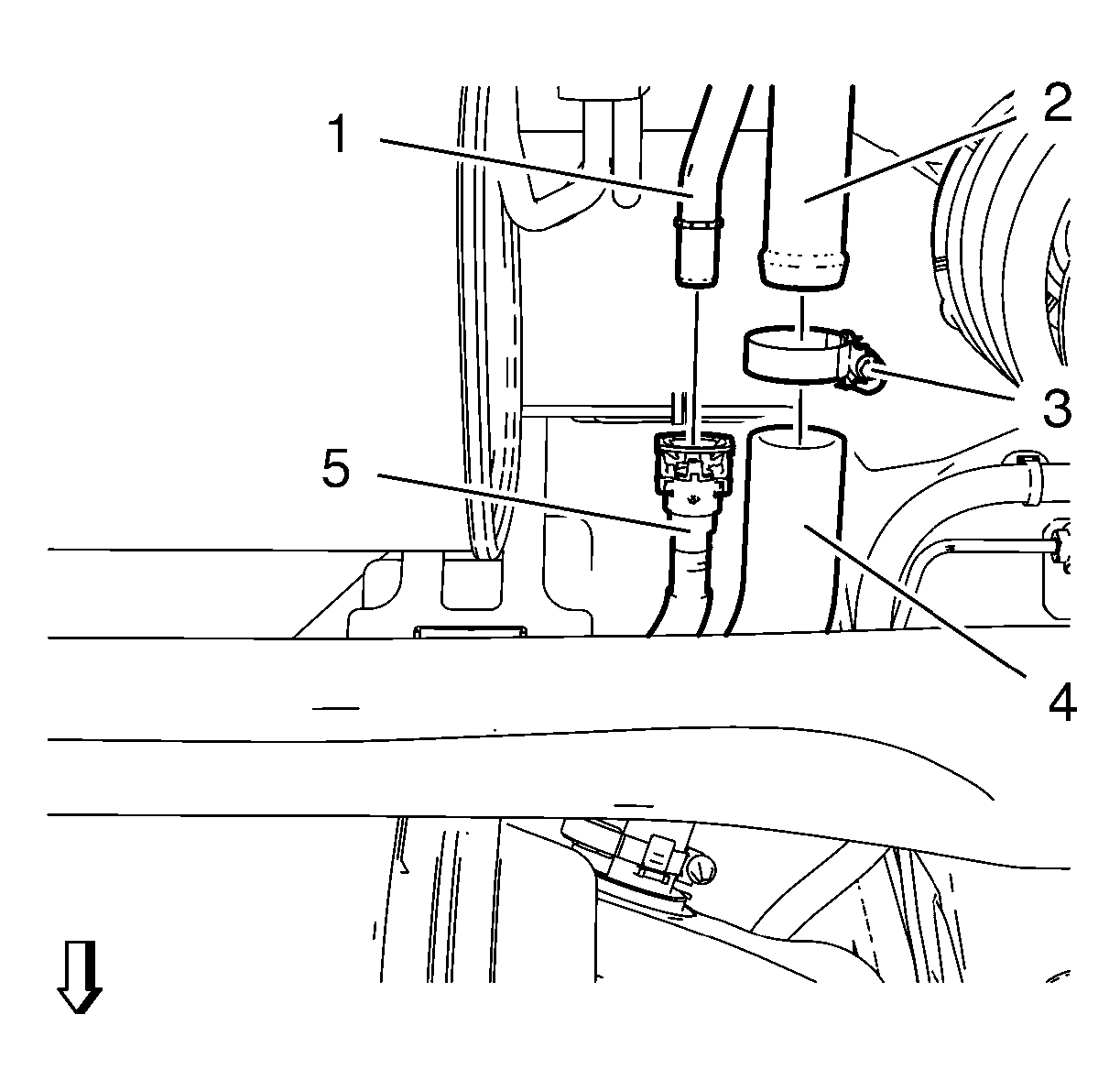

- Install the fuel filler hose (4) to the fuel filler pipe (2).
- Install the fuel filler pipe clamp (3).
- Remove the EN-6015 plugs from all connections.
- Connect the fuel tank fill EVAP emission pipe quick connect fitting (5) to the fuel tank vent pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the EN-6015 plugs from all connections.
- Connect the fuel feed pipe (3) to the fuel feed pipe connector (1). Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the EN-6015 plugs from all connections.
- Connect the fuel return pipe (3) to the fuel return pipe connector (1). Refer to Plastic Collar Quick Connect Fitting Service .
- Clip the fuel feed pipe into the bracket clip (2) and lock the bracket clip.
- Lower the vehicle.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
- Close the hood.
CAUTION:
Refer to Fastener Caution .
