Installation Procedure

    Fig 1: Front Intake Air Duct Bolt
    GM2190229Courtesy of GENERAL MOTORS COMPANY
  1. Install the front intake air duct (2).
  2. Install and tighten the front intake air duct bolt (1).
    3. Fig 2: Front Intake Air Duct Splash Shield Bolts
    GM2190228Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the front intake air duct splash shield (1).
  4. Install and tighten the 2 front intake air duct splash shield bolts (2).

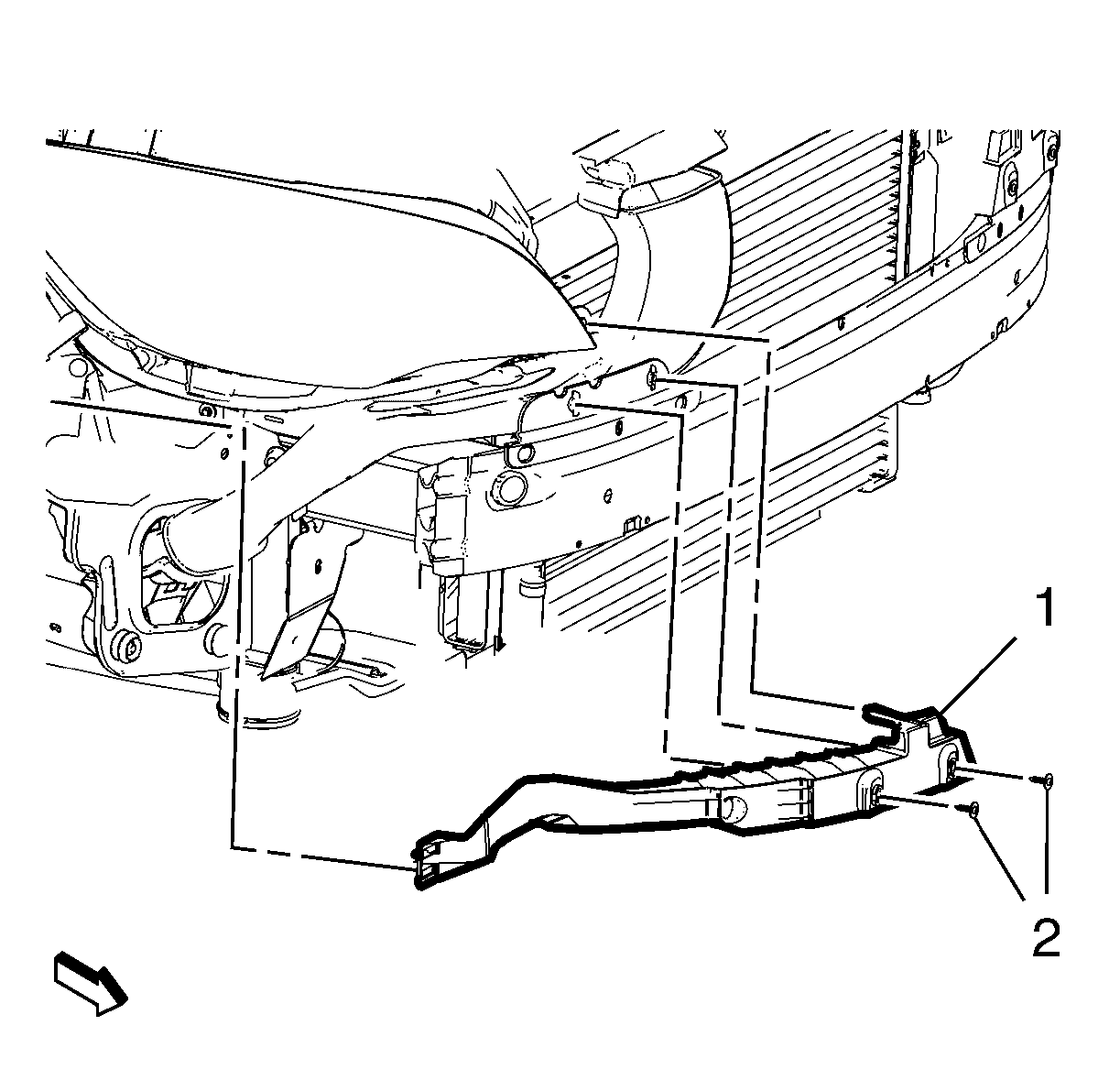

    5. Fig 3: Right Front Bumper Support Bolts
    GM2543478Courtesy of GENERAL MOTORS COMPANY
  5. Install the right front bumper fascia support (1).
  6. Install the 2 right front bumper fascia support bolts (2) and tighten.
  7. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
