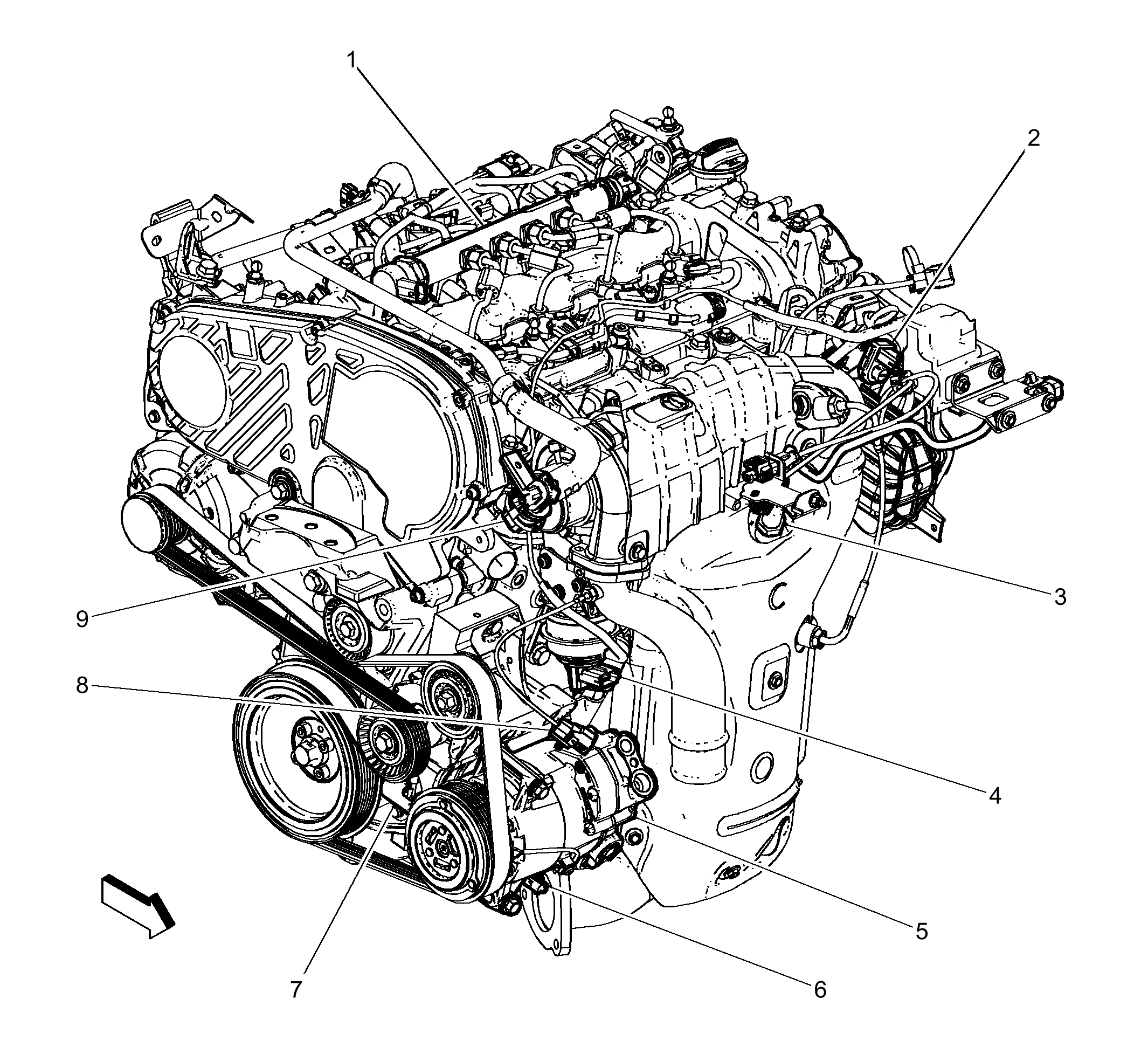

Right Front of Engine Components (LUZ)
Right Front of Engine Components (LUZ)
| Items |
|---|
| 1: B47B Fuel Rail Pressure Sensor (LUZ) |
| 2: Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve (LUZ) |
| 3: B52 Heated Oxygen Sensor (LUZ) |
| 4: B112 Turbocharger Vane Position Sensor (LUZ) |
| 5: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 6: Q2 A/C Compressor Clutch |
| 7: Q44 Engine Oil Pressure Control Solenoid Valve (LUZ) |
| 8: B193A Charge Air Cooler Inlet Temperature Sensor (LUZ) |
| 9: E45 Positive Crankcase Ventilation Heater (LUZ) |
