Rearview Camera Image Display Module Replacement (Object Detection System And Pedestrian Protection System)
Rearview Camera Image Display Module Replacement

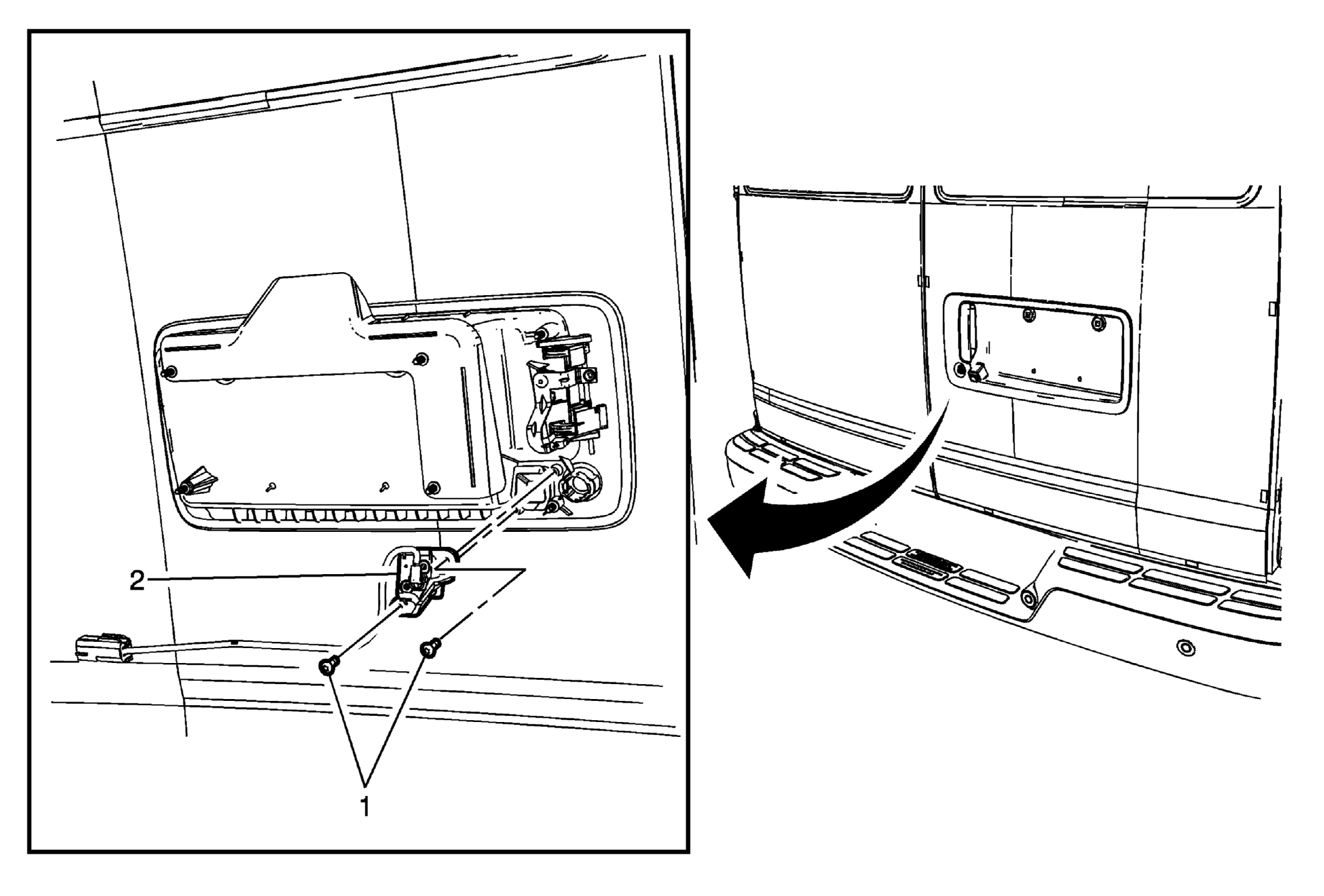

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side 60/40 door trim panel - right side. Refer to Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door) , Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door) . |
|
| 1 | Rearview Camera Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rearview Camera Image Display Module Procedure Disconnect electrical connector. |
