Communication Interface Module Bracket Replacement

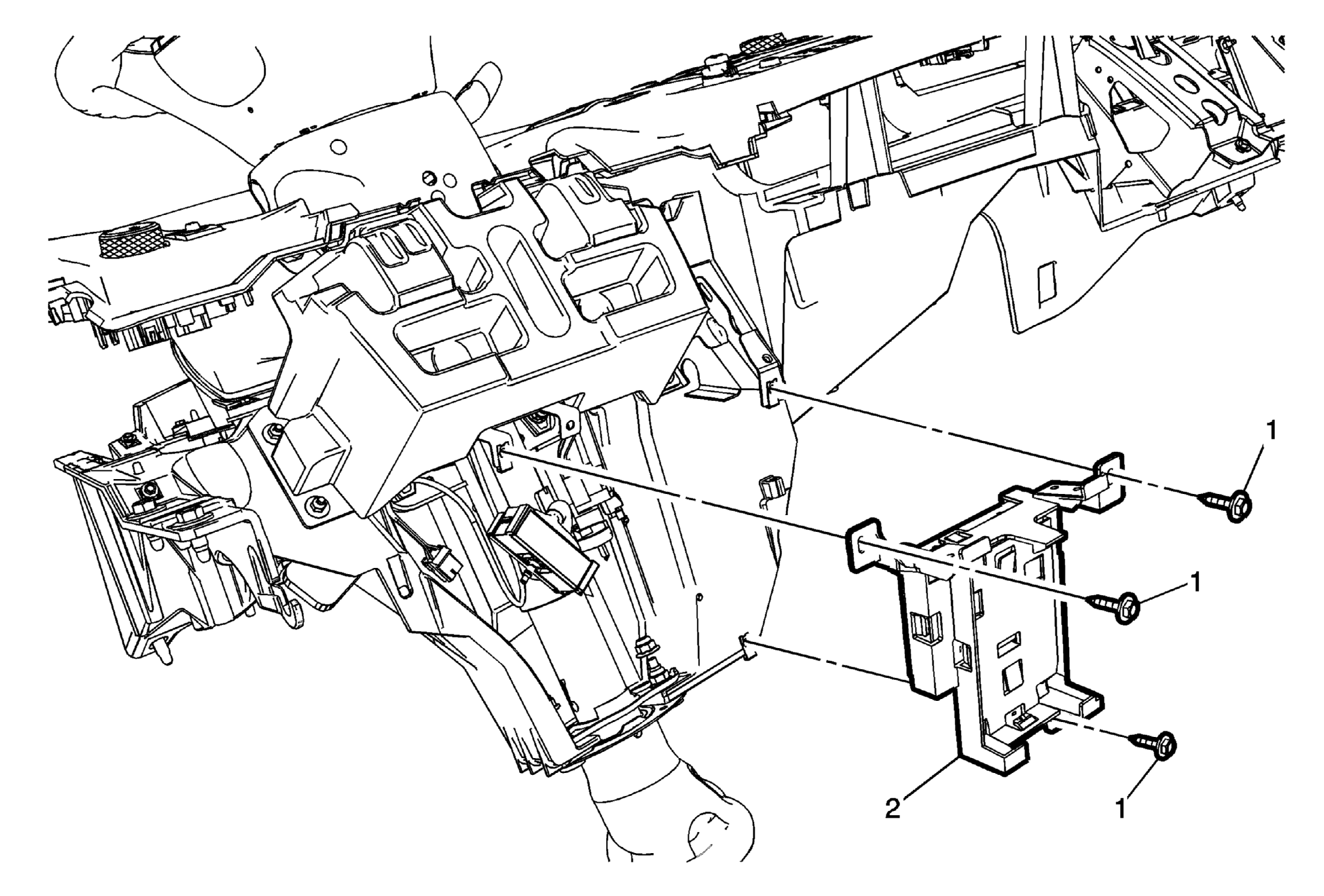

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1	Communication Interface Module Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Bracket Procedure Disconnect the electrical connections. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .

Communication Interface Module Bracket Bolt (Qty: 3)

CAUTION:

Communication Interface Module Bracket

Procedure
