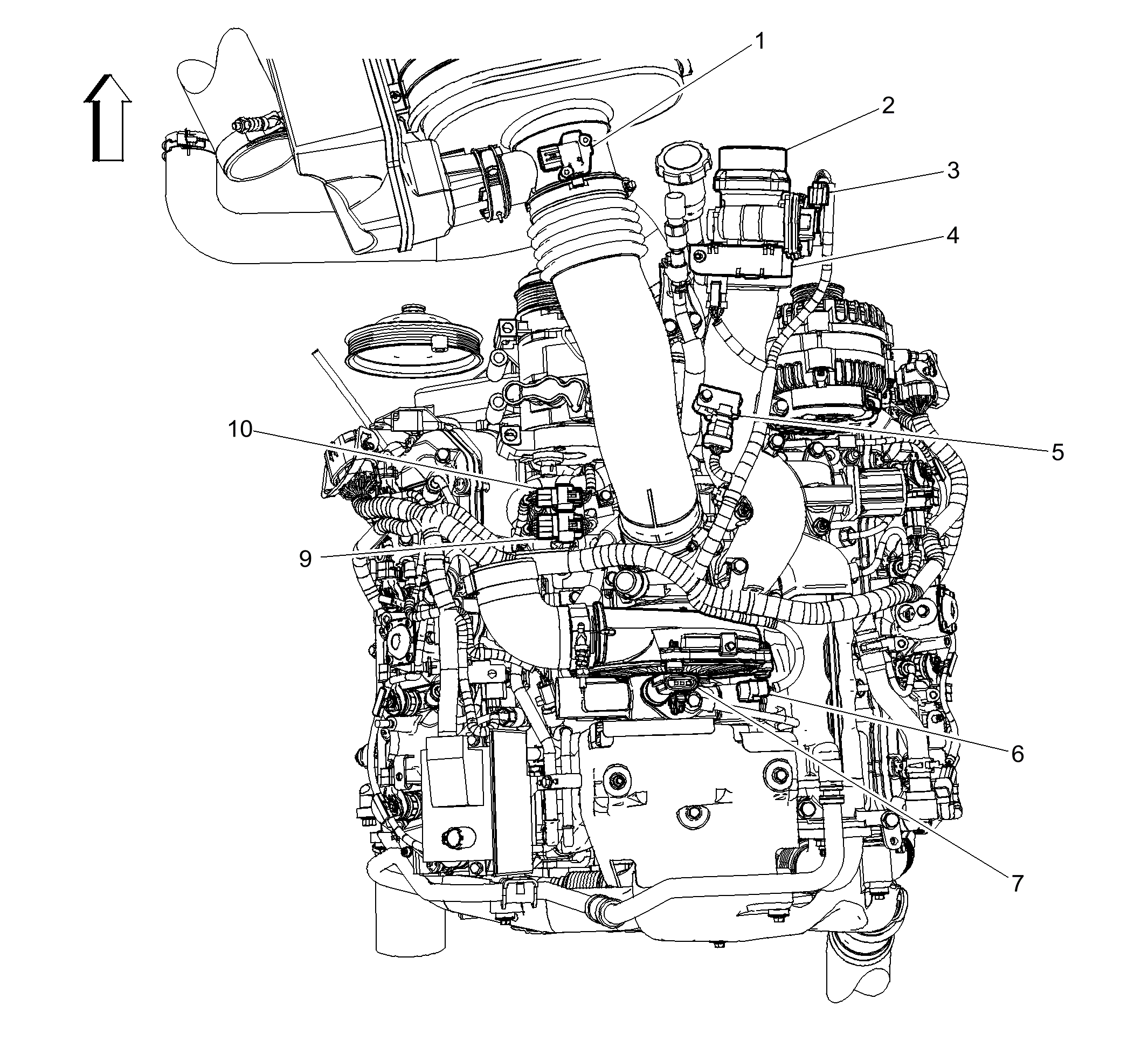

Upper Engine (LGH)
Upper Engine (LGH)
| Items |
|---|
| 1: B75B Mass Air Flow/Intake Air Temperature Sensor |
| 2: Q38 Throttle Body (LU3, L20, LMF, L96 or LC8) |
| 3: Q20 Intake Air Flow Valve |
| 4: E24 Intake Air Heater (LGH) |
| 5: B74 Manifold Absolute Pressure Sensor |
| 6: Q41 Turbocharger Vane Position Control Solenoid Valve (LGH) |
| 7: B112 Turbocharger Vane Position Sensor (LGH) |
| 9: X111 |
| 10: X110 (LGH) |
