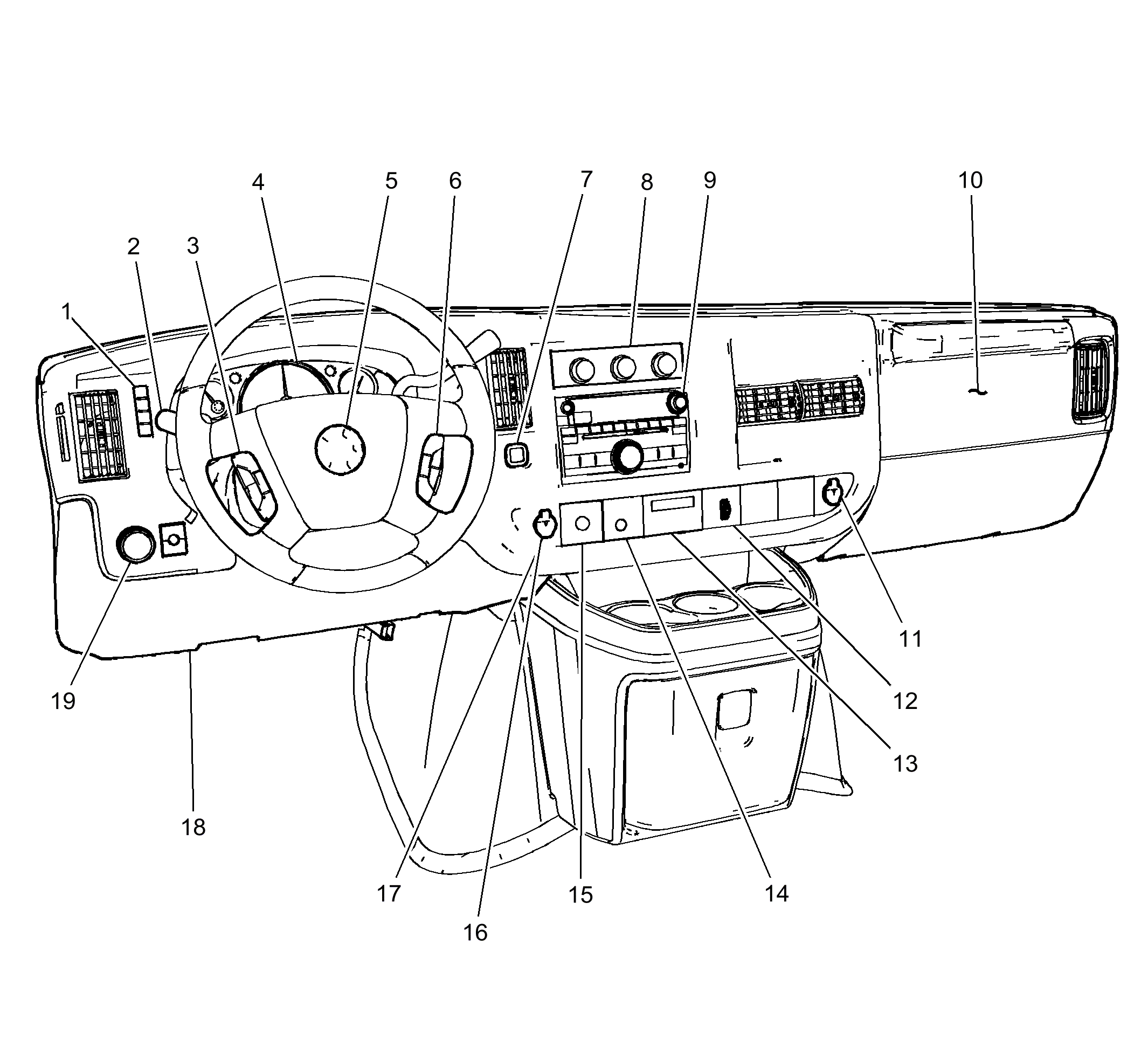

Instrument Panel Components
Instrument Panel Components
| Items |
|---|
| 1: S16 Driver Information Center Switch |
| 2: S78 Turn Signal/Multifunction Switch |
| 3: S70L Steering Wheel Controls Switch - Left (K34) |
| 4: P16 Instrument Cluster |
| 5: F107 Steering Wheel Air Bag |
| 6: S70R Steering Wheel Controls Switch - Right (W1Y) |
| 7: S74 Tow/Haul Mode Switch |
| 8: S34 HVAC Controls Switch Assembly |
| 9: A11 Radio |
| 10: F101 Passenger Instrument Panel Air Bag |
| 11: X80B Accessory Power Receptacle - Center Console 2 |
| 12: S85 Auxiliary Blower Motor Switch (C36 without C69) |
| 13: P14 Passenger Air Bag Disable Indicator (Light Duty without YF7) |
| 14: S40 Passenger Air Bag Disable Switch (C99) |
| 15: S75 Traction Control Switch (JL4) |
| 16: X80A Accessory Power Receptacle - Center Console 1 (without DT4) |
| 17: E32 Cigarette Lighter Receptacle |
| 18: X84 Data Link Connector (DLC) |
| 19: S30 Headlamp Switch |
