Upper Steering Column

Upper Steering Column

Items
1:  K64 Content Theft Deterrent Control Module
2:  M7 Transmission Shift Lock Control Solenoid Actuator
3:  S39 Ignition Switch
4:  S33 Horn Switch
5:  F107 Steering Wheel Air Bag
6:  S78 Turn Signal/Multifunction Switch
7:  S26 Hazard Warning Switch

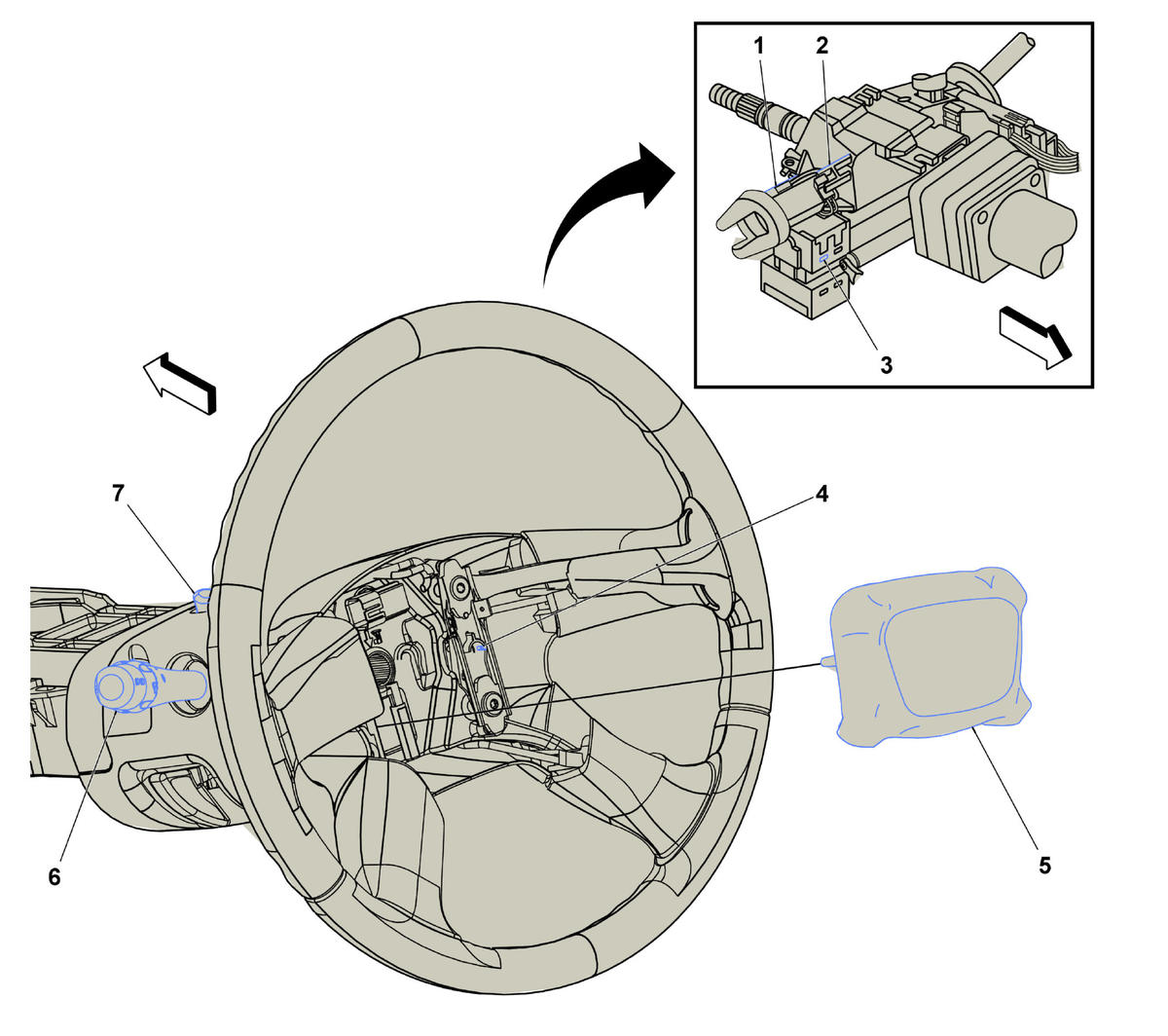

Fig 1: Upper Steering Column
GM2831279Courtesy of GENERAL MOTORS COMPANY
