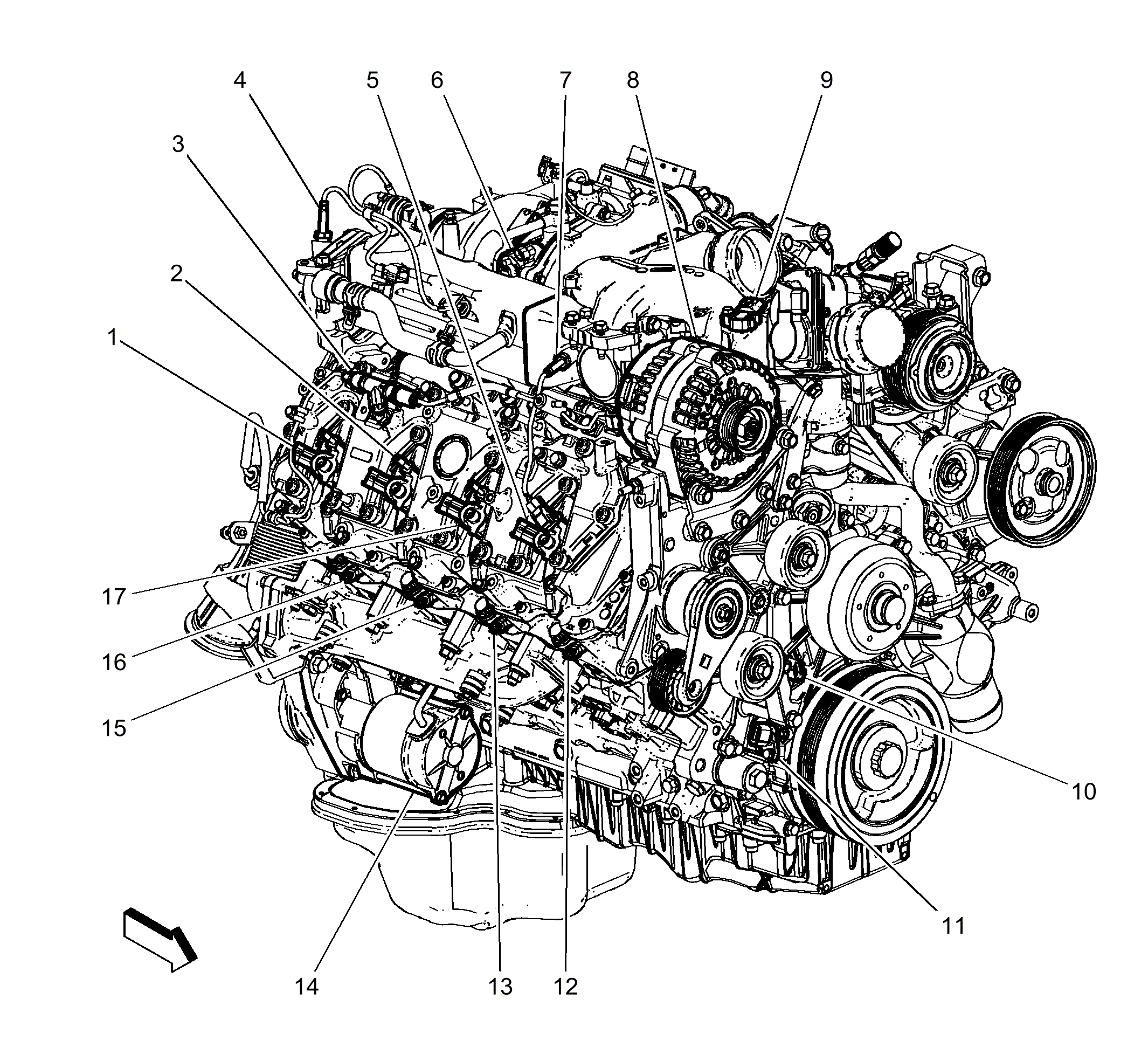

Right Front of Engine Components (LGH)
Right Front of Engine Components (LGH)
| Items |
|---|
| 1: Q17G Fuel Injector 7 |
| 2: Q17E Fuel Injector 5 |
| 3: Q67 Exhaust Aftertreatment Fuel Injector (LGH) |
| 4: B131A Exhaust Temperature Sensor 1 (LGH) |
| 5: Q17A Fuel Injector 1 |
| 6: Q41 Turbocharger Vane Position Control Solenoid Valve (LGH) |
| 7: B130B Exhaust Gas Recirculation Temperature Sensor 2 (LGH) |
| 8: G13 Generator |
| 9: B74 Manifold Absolute Pressure Sensor |
| 10: B23 Camshaft Position Sensor |
| 11: B26 Crankshaft Position Sensor |
| 12: E12A Glow Plug 1 (LGH) |
| 13: E12C Glow Plug 3 (LGH) |
| 14: M64 Starter Motor |
| 15: E12E Glow Plug 5 (LGH) |
| 16: E12G Glow Plug 7 (LGH) |
| 17: Q17C Fuel Injector 3 |
