Radiator Assembly Components

Radiator Assembly Components

Items
1:  G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
2:  G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right
3:  B235 Starter/Generator Coolant Temperature Sensor (HP6) B235 Starter/Generator Coolant Temperature Sensor (HP6)
4:  B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor (LFX or LUK)B1 A/C Refrigerant Pressure Sensor (LKW)

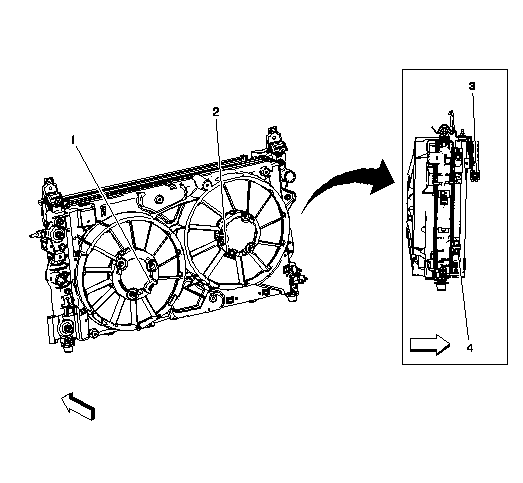

Fig 1: Radiator Assembly Components
GM2913021Courtesy of GENERAL MOTORS COMPANY
