Fuse Block Replacement

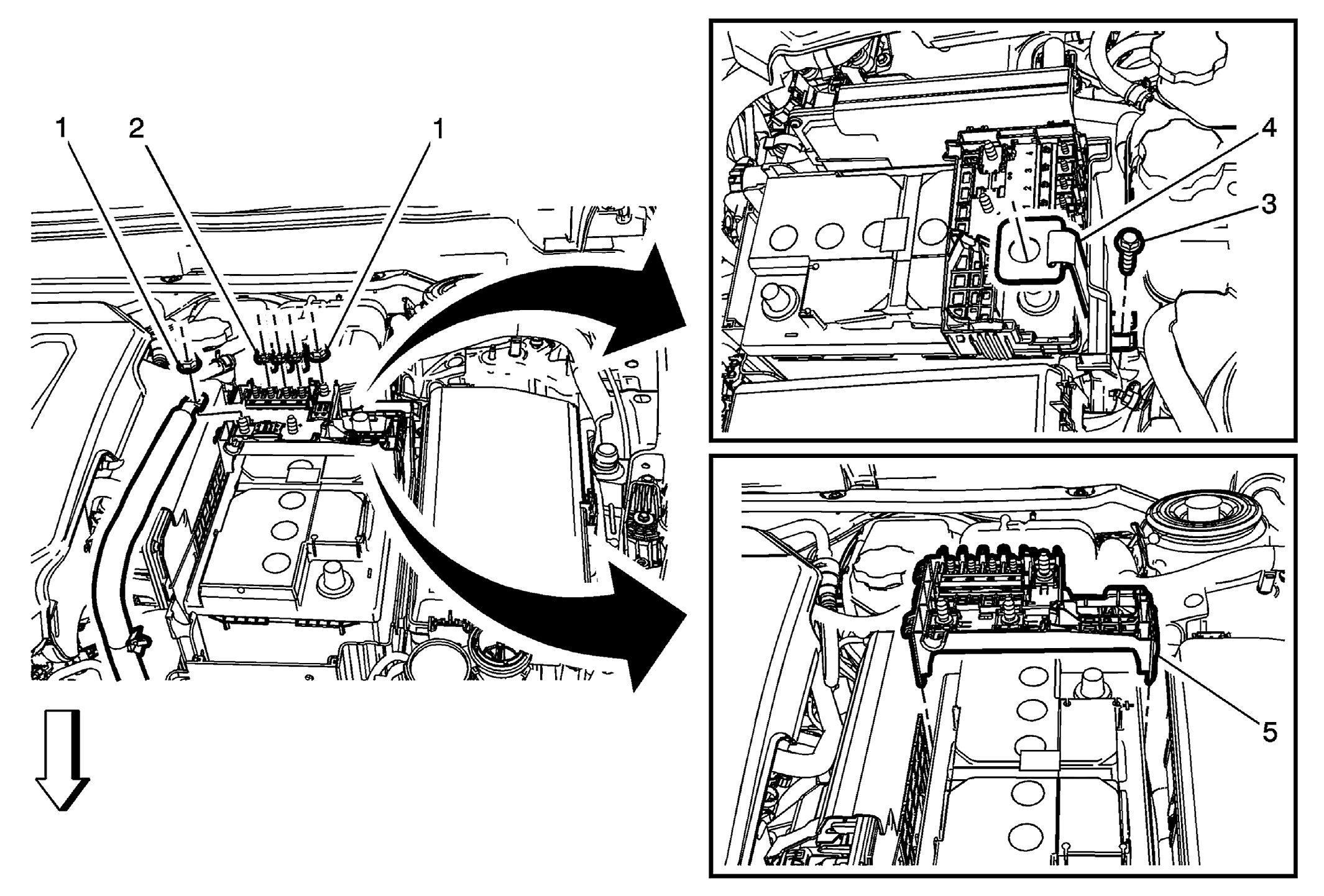

Fig 1: Fuse Block Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Replacement . Remove the battery positive fuse block cable. Refer to Battery Positive Fuse Block Cable Replacement
1	Fuse Block Positive Cable and Engine Power Supply Cable Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 (106 lb in)
2	Fuse Block Terminal Wiring Harness Nut (Qty: 3) Tighten 4.7 N.m (3.5 lb in)
3	Battery Hold Down Retainer Bolt Tighten 15 (11 lb ft)
4	Battery Hold Down Retainer
5	Fuse Block Procedure Unclip and remove the fuse block from the battery.
