Front Seat Heater Control Module Replacement

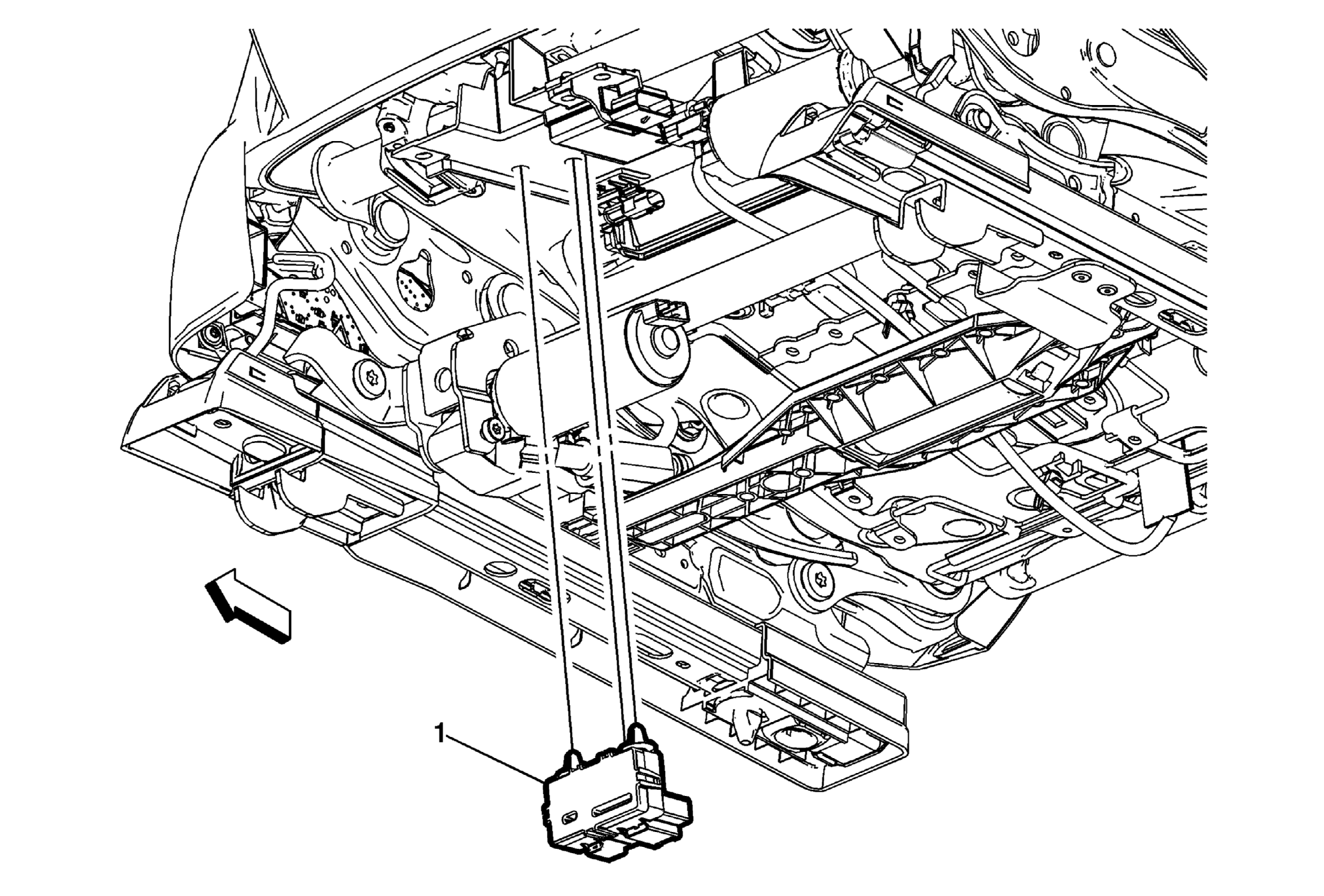

Fig 1: Front Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Heater Control Module Procedure Set the seat to its highest position. Release the three push in retainers securing the module to the front seat adjuster memory module bracket. Disconnect the electrical connectors. Refer to Control Module References for programming and setup information.

Callout

Component Name

Front Seat Heater Control Module

Procedure

Set the seat to its highest position.
Release the three push in retainers securing the module to the front seat adjuster memory module bracket.
Disconnect the electrical connectors.
Refer to Control Module References for programming and setup information.
