Front Side Door Window and Multifunction Switch Replacement

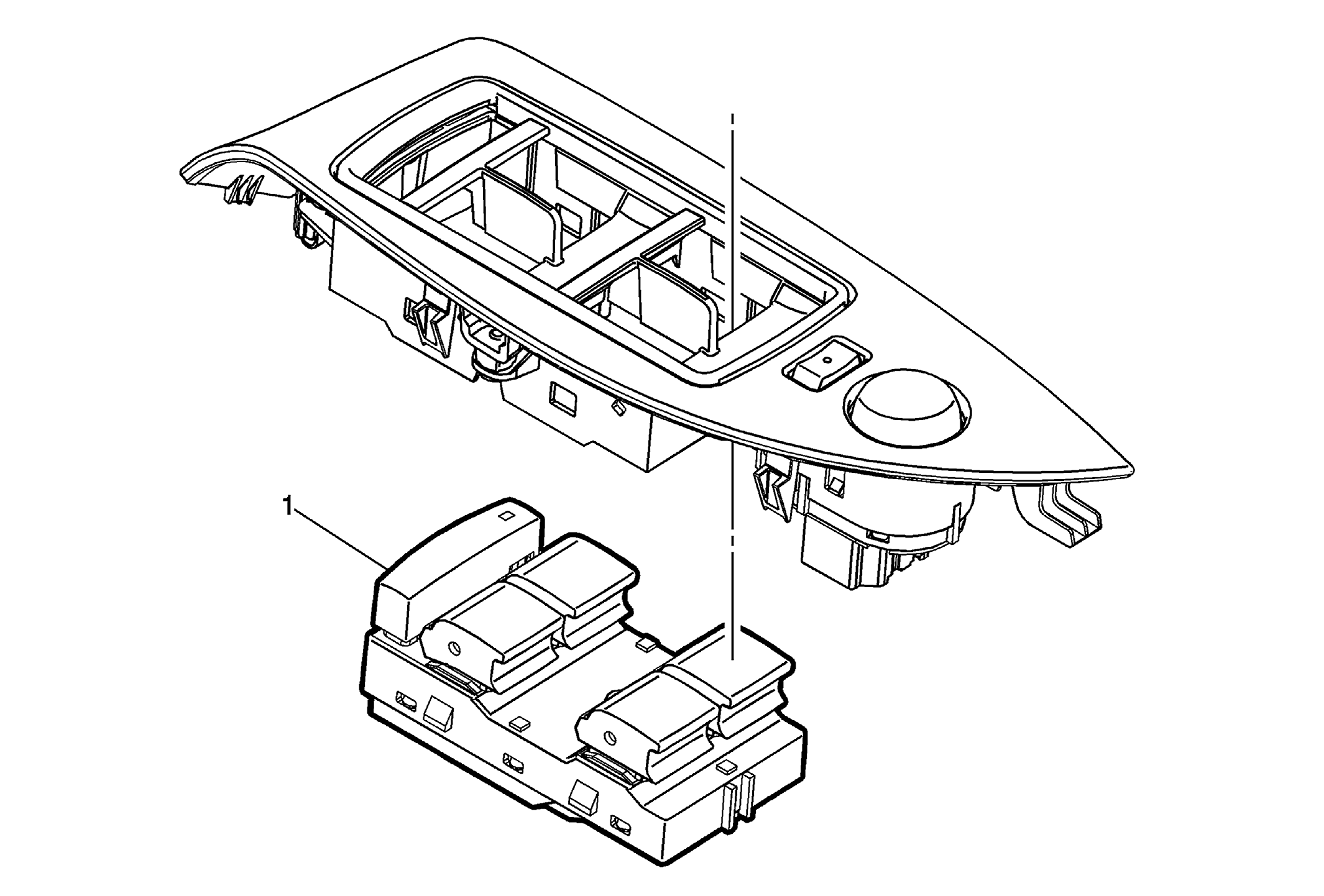

Fig 1: Front Side Door Window and Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .
1	Front Side Door Window and Multifunction Switch Assembly Procedure Release tabs on switch to remove from the front side door accessory switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .

Front Side Door Window and Multifunction Switch Assembly

Procedure

Release tabs on switch to remove from the front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
