Fuel Pump Cover Replacement

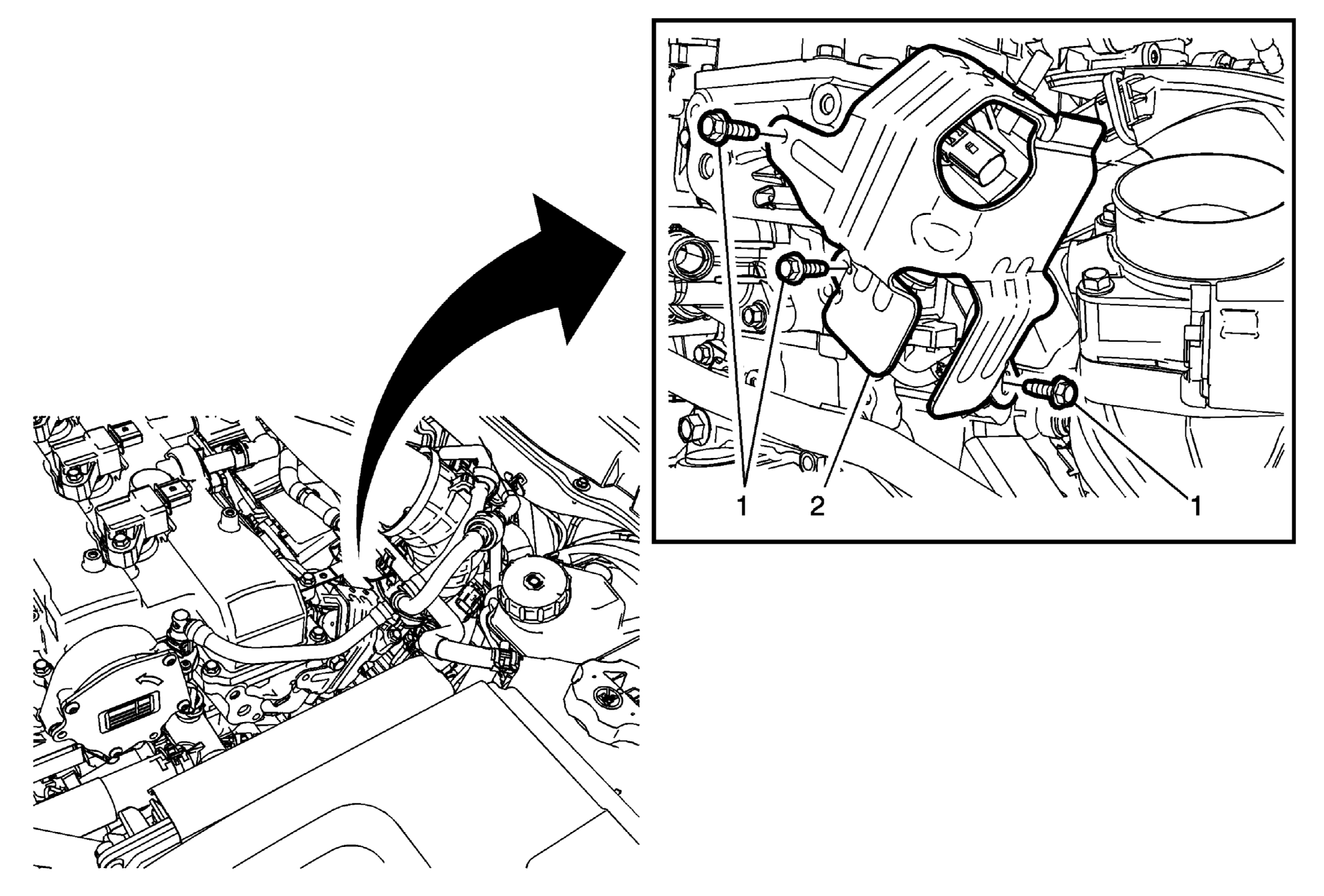

Fig 1: Fuel Pump Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Fuel Pump Cover Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 (89 lb in)
2	Fuel Pump Cover Procedure Disconnect the electrical wiring harness connector from the fuel pump.
