Installation Procedure

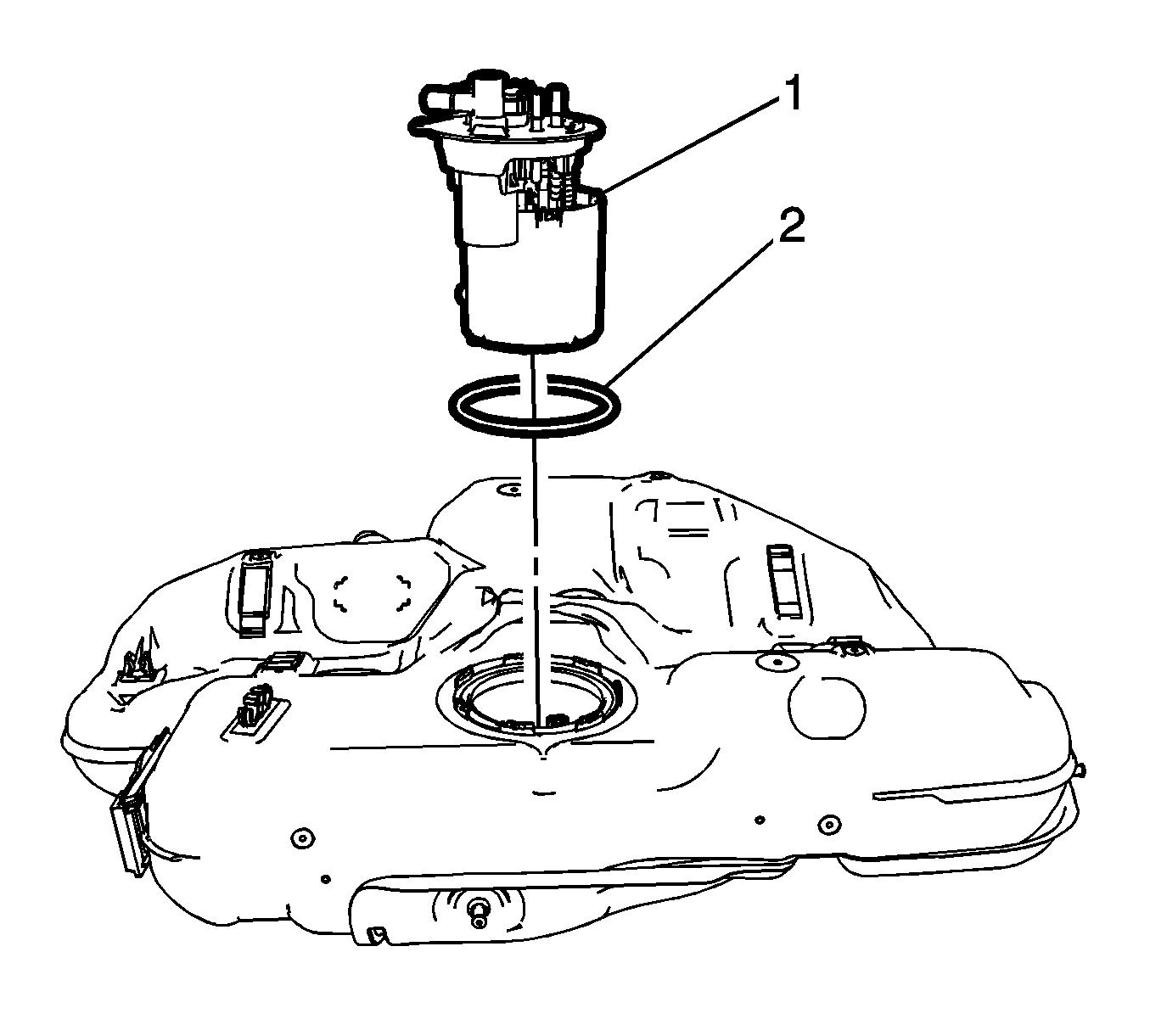

    Fig 1: Fuel Tank Module And O-Ring
    GM2817603Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW seal (2) and the fuel tank module (1).
    2. Fig 2: Fuel Pump Vent Hose
    GM2817600Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel pump vent hose. Refer to Plastic Collar Quick Connect Fitting Service .

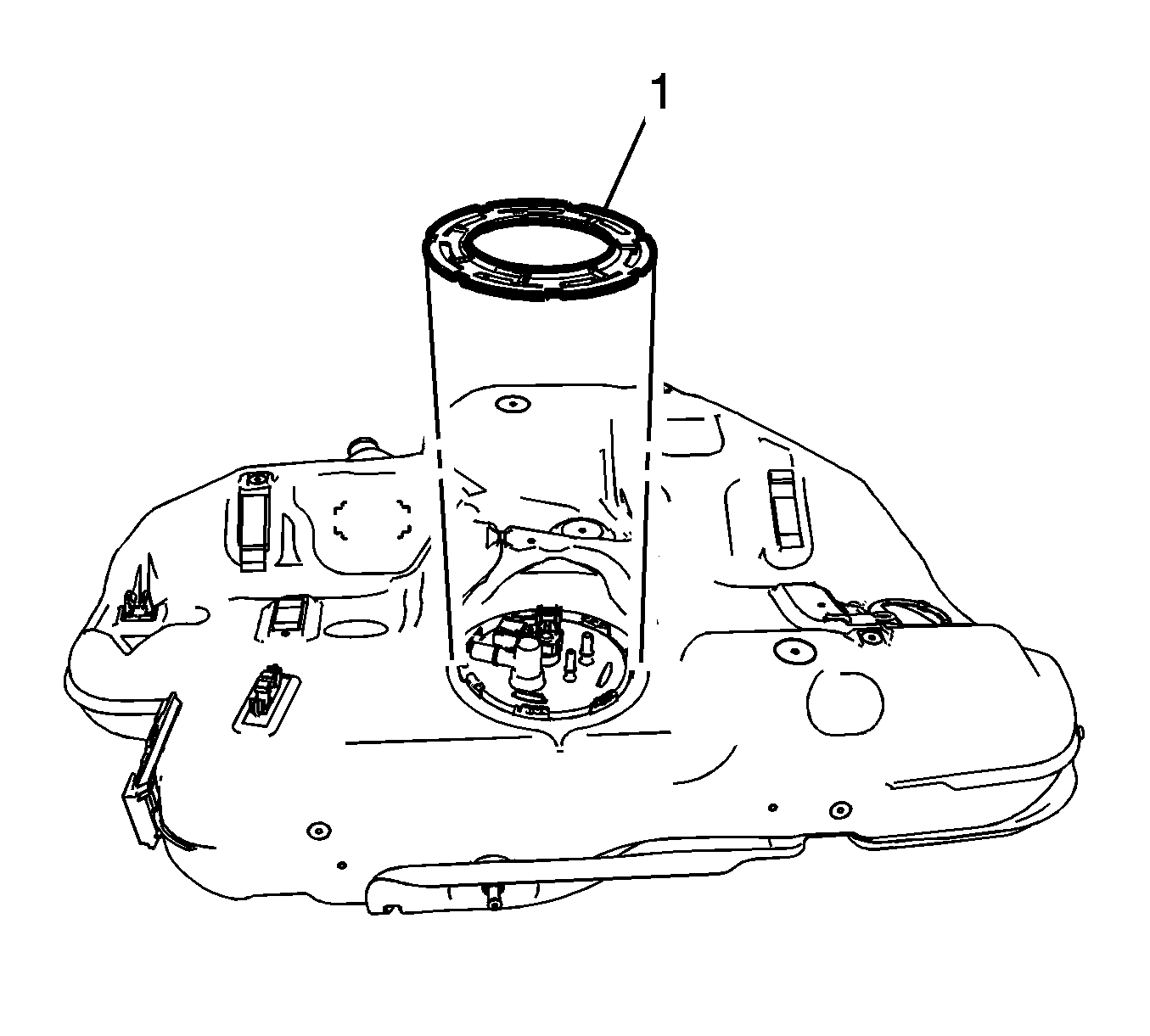

    3. Fig 3: Lock Ring
    GM2817604Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH 45722   wrench by turning clockwise and install the lock ring (1).

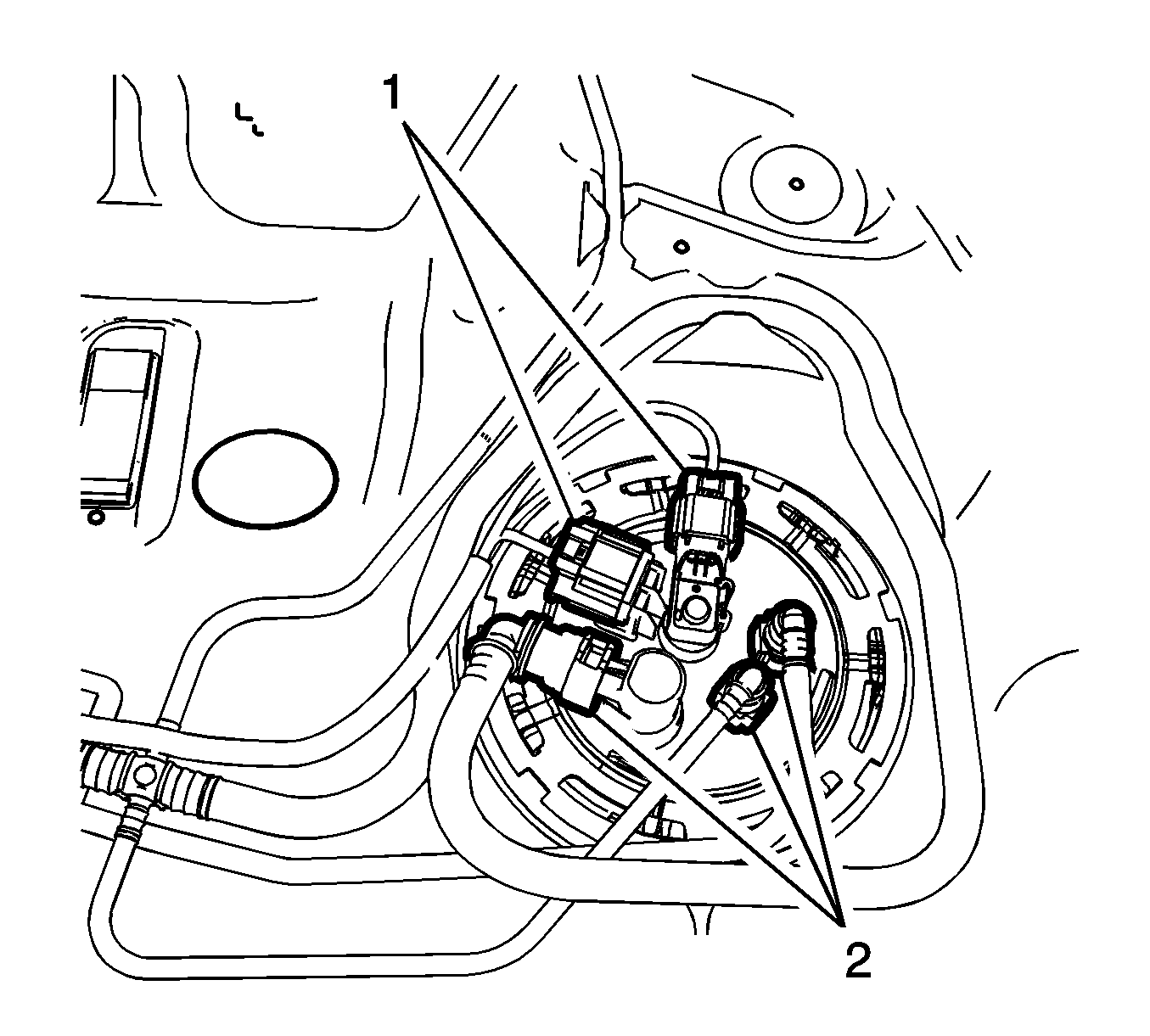

    4. Fig 4: Fuel Pump Electrical Connectors
    GM2817602Courtesy of GENERAL MOTORS COMPANY
  4. Connect the fuel pump electrical connector (1) and the quick connects (2). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Install the fuel tank. Refer to Fuel Tank Replacement .
