Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    WARNING:

    Ensure all High Voltage safety procedures are followed. Failure to follow the procedure exactly as written may result in serious injury or death.

    WARNING:

    Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed.

    The High Voltage Disabling procedure includes the following steps:

    • Identify how to disable high voltage.
    • Identify how to test for the presence of high voltage.
    • Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed.

    Before working on any high voltage system, be sure to wear the following Personal Protection Equipment:

    • Safety glasses with appropriate side shields when within 15 meters (50 feet) of the vehicle, either indoors or outdoors.
    • Certified and up-to-date Class "0" Insulation gloves rated at 1000V with leather protectors.
      • Visually and functionally inspect the gloves before use.
      • Wear the Insulation gloves with leather protectors at all times when working with the high voltage battery assembly, whether the system is energized or not.

    Failure to follow the procedures may result in serious injury or death.

  1. Ignition OFF, disable the high voltage at the A4 hybrid battery pack. Refer to High Voltage Disabling .

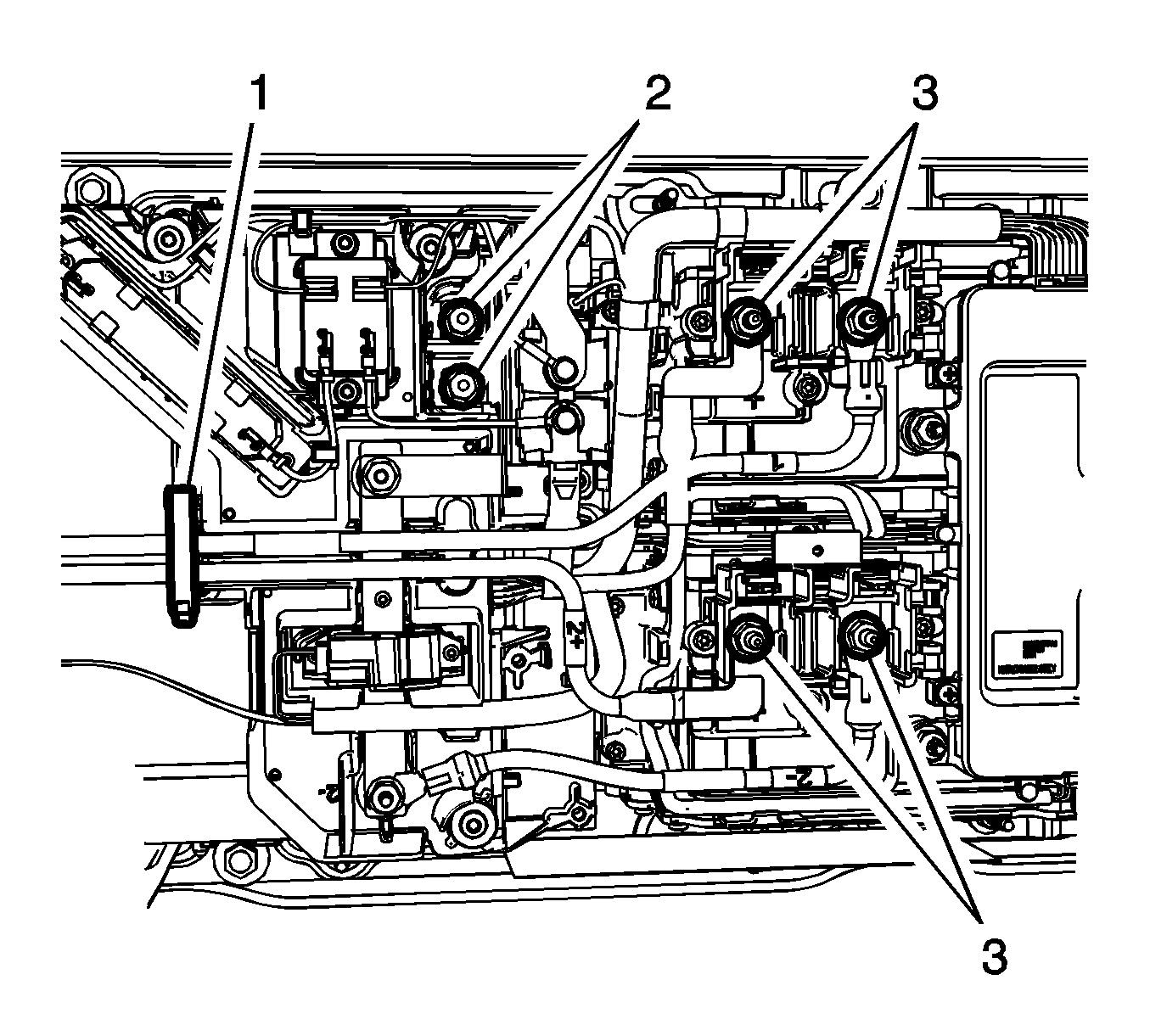

  2. Fig 1: High Voltage Battery Cables-To-Batteries Fasteners
    GM2869862Courtesy of GENERAL MOTORS COMPANY
  3. Remove the fasteners (3) retaining the high voltage battery cables to the batteries.
  4. Disengage the cable retaining clip (1) and reposition the high voltage cables.
  5. Remove the fasteners (2) retaining the junction block to the generator control module.
  6. Fig 2: Cut-Off Switch Fastener
    GM2596569Courtesy of GENERAL MOTORS COMPANY
  7. Remove the current sensor connector (3), the pre-charge contacts (4) and the contactor connector (5).
  8. Fig 3: Generator Control Module Connector
    GM2596589Courtesy of GENERAL MOTORS COMPANY
  9. Remove the generator control module connector (1).
  10. Fig 4: Battery Energy Control Module Junction Block Fasteners
    GM2596582Courtesy of GENERAL MOTORS COMPANY
  11. Remove the drive motor battery wire junction block relay fasteners (1) and remove the drive motor battery wire junction block relay (2).
