Rearview Camera Image Display Module Replacement

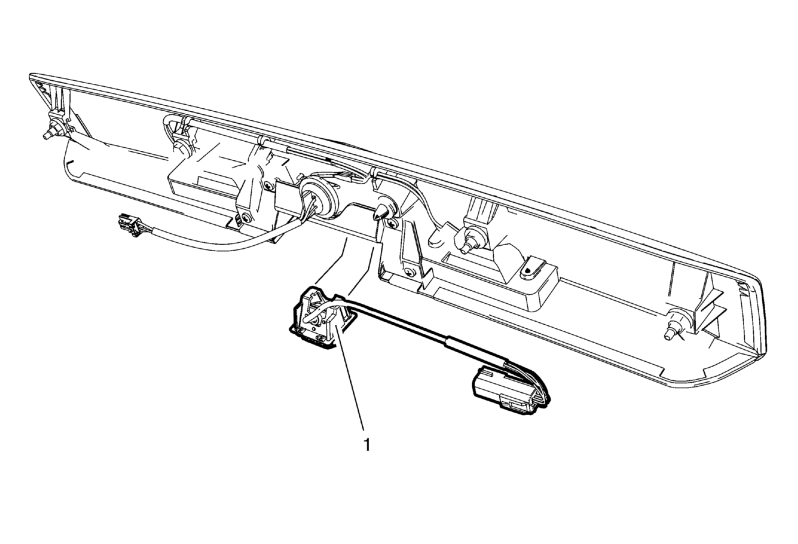

Fig 1: Rearview Camera Image Display Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate side applique. Refer to Liftgate Side Applique Replacement .
1	Rearview Camera Image Display Module Procedure Disconnect the electrical connector Depress the clip fingers and push outward to remove the rearview camera image display module.

Callout

Component Name

Preliminary Procedure
Remove the liftgate side applique. Refer to Liftgate Side Applique Replacement .

Rearview Camera Image Display Module

Procedure

Disconnect the electrical connector
Depress the clip fingers and push outward to remove the rearview camera image display module.
