USB Receptacle Replacement

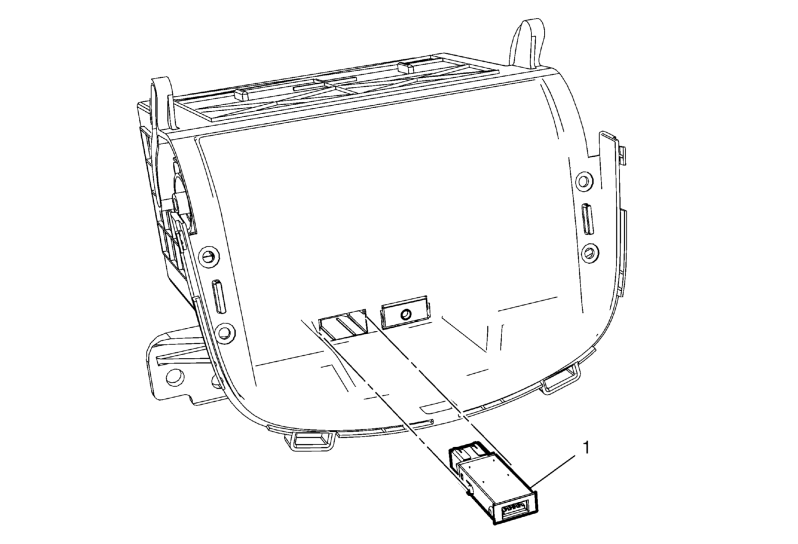

Fig 1: USB Receptacle
GM2814108Courtesy of GENERAL MOTORS COMPANY
USB Receptacle Replacement

Callout Component Name
Preliminary Procedure
Remove the radio control switch. Refer to Radio Control Switch Replacement .
1 USB Receptacle
Procedure
Use a flat-bladed tool to release the retaining noses.
