Communication Interface Module Bracket Replacement

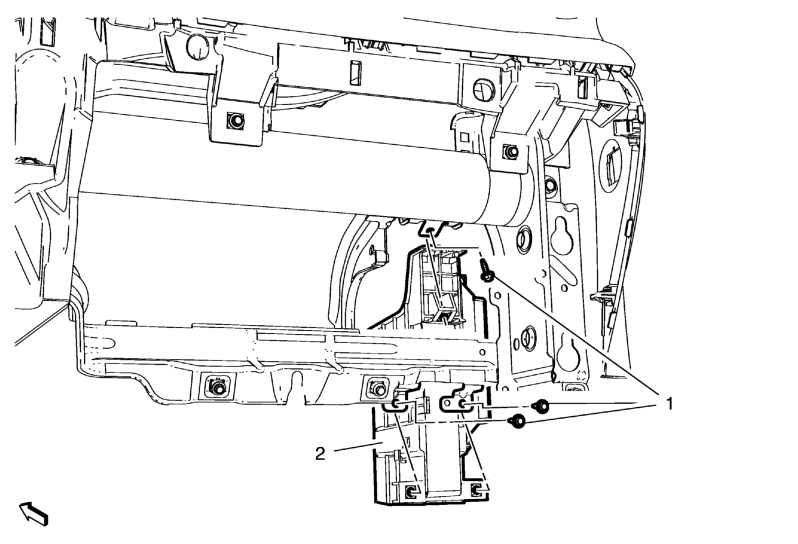

Fig 1: Communication Interface Module Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Communication Interface Module Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Bracket Procedure Disconnect the electrical connectors. Remove the communication interface module battery from the communication interface module bracket. Refer to Communication Interface Module Battery Replacement . Remove the communication interface module from the communication interface module bracket. Refer to Communication Interface Module Replacement .

Callout

Component Name

Preliminary Procedures
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Communication Interface Module Bracket Bolt (Qty: 3)

CAUTION:

Communication Interface Module Bracket

Procedure

Disconnect the electrical connectors.
Remove the communication interface module battery from the communication interface module bracket. Refer to Communication Interface Module Battery Replacement .
Remove the communication interface module from the communication interface module bracket. Refer to Communication Interface Module Replacement .
