Front Side Door Window and Multifunction Switch Replacement

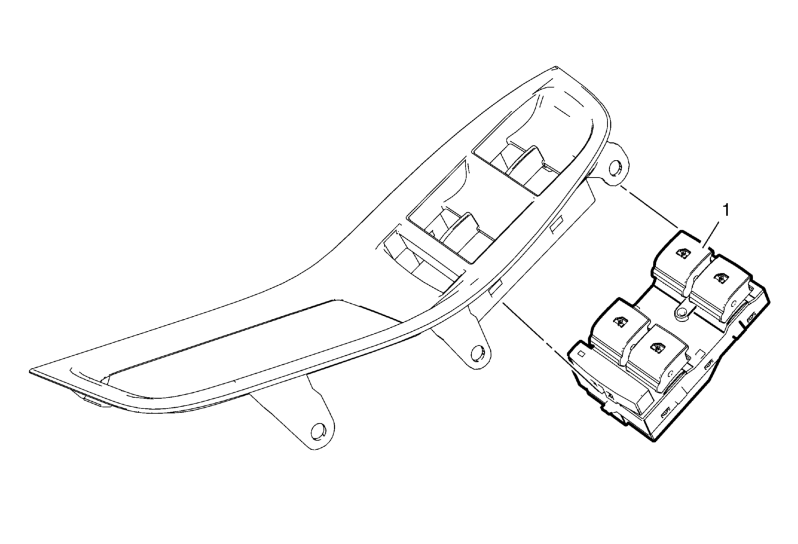

Fig 1: Front Side Door Window and Multifunction Switch
GM2372636Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window and Multifunction Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the front side window switch bezel. Refer to Front Side Door Window Switch Bezel Replacement
1 Front Side Door Window Switch
